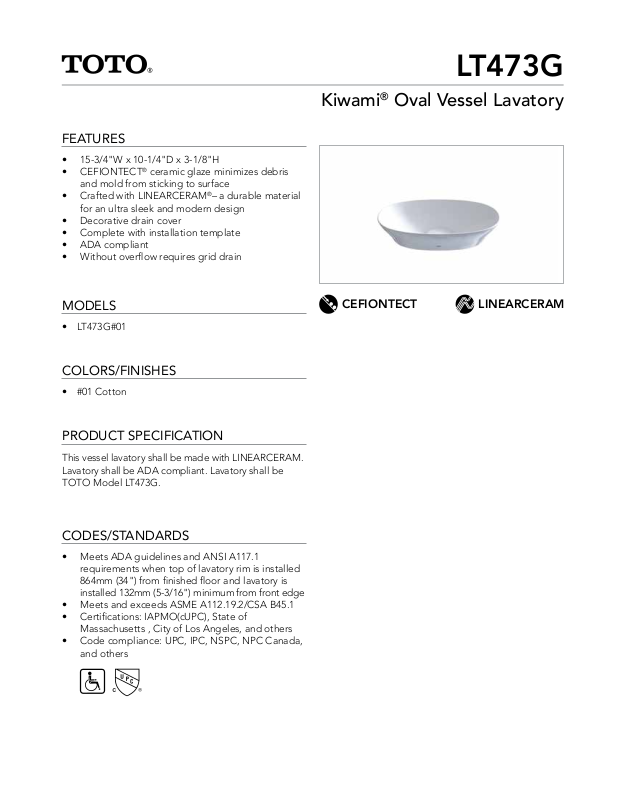

Page 1
FEATURES
• 15-3/4"W x 10-1/4"D x 3-1/8"H
• CEFIONTECT® ceramic glaze minimizes debris
and mold from sticking to surface
• Crafted with LINEARCERAM®– a durable material
for an ultra sleek and modern design
• Decorative drain cover
• Complete with installation template
• ADA compliant
• Without overow requires grid drain
LT473G
Kiwami® Oval Vessel Lavatory
MODELS
• LT473G#01
COLORS/FINISHES
• #01 Cotton
PRODUCT SPECIFICATION
This vessel lavatory shall be made with LINEARCERAM.
Lavatory shall be ADA compliant. Lavatory shall be
TOTO Model LT473G.
CODES/STANDARDS
• Meets ADA guidelines and ANSI A117.1
requirements when top of lavatory rim is installed
864mm (34") from nished oor and lavatory is
installed 132mm (5-3/16") minimum from front edge
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
CEFIONTECT LINEARCERAM
Page 2
LT473G
Kiwami® Oval Vessel Lavatory
SPECIFICATIONS
Was te
Size
Basin
Basin Depth
Warranty
Material
Shipping Weight
Shipping
Dimensions
DIMENSIONS
15 3/4" [400mm]
1-1/4"
15-3/4"W x 10-1/4"D x 3-1/8"H
15-7/16"W x 9-15/16"D
3-1/8"
One Year Limited Warranty
LINEARCERAM
®
10 lbs
7-1/4" x 10-3/4" x 16-1/4"
INSTALLATION NOTES
Use with Included Grid Drain Assembly Only. The
recommended faucet height from deck to spout is
8-5/16" (211mm) and below. Aim water supply away
from the drain cover.
3/16" [4mm] Ref
21" [533mm]
*
8" [203mm]
3 1/8" [80mm]
3 1/8" [80mm]
1
1
4
WASTE
3/8" * SUPPLY
* Suggested Dimensions
10 1/4" [260mm]
" *
18" [457mm]
34" [864mm]
*
5 3/16" [132mm]
MINIMUM
27" [686mm]
ADA COMPLIANCE
24" [610mm]
13 11/16" [348mm]
8" [203mm]
11" [279mm]
9" [228mm]
1" [25mm]
21" [533mm]
34" [864mm]
MAX
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
#SS-01493 v.01
