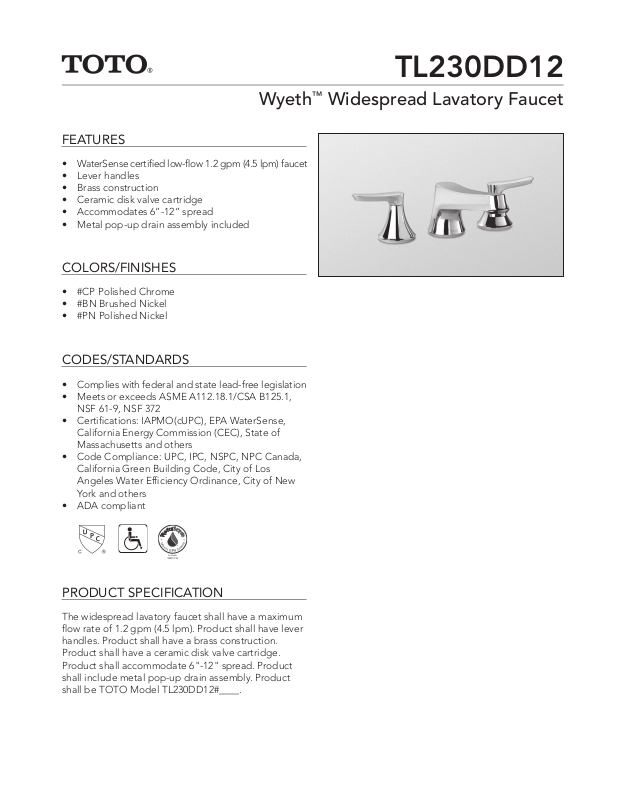

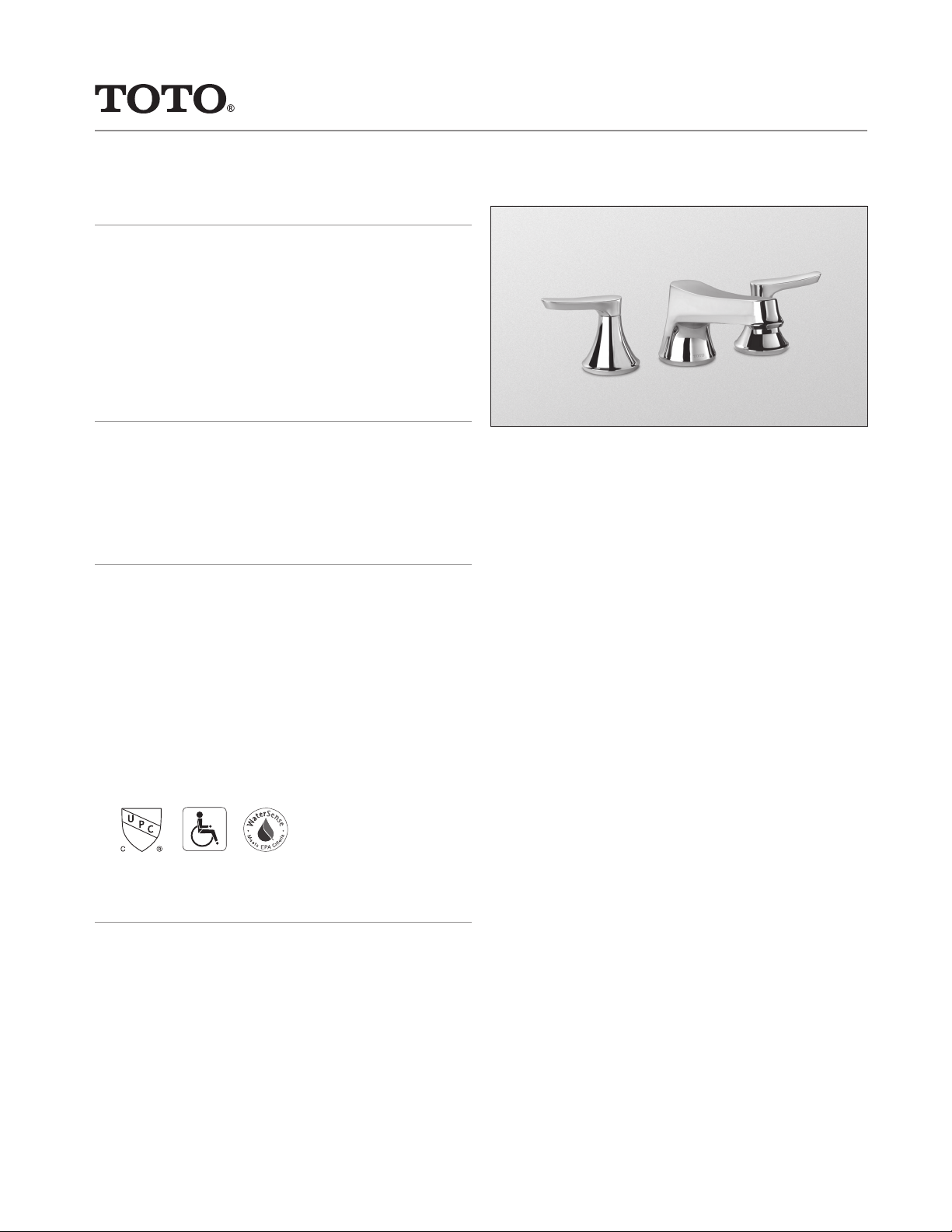

Wyeth™ Widespread Lavatory Faucet
FEATURES
• WaterSense certified low-flow 1.2 gpm (4.5 lpm) faucet
• Lever handles
• Brass construction
• Ceramic disk valve cartridge
• Accommodates 6”-12” spread
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TL230DD12
• Complies with federal and state lead-free legislation
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifications: IAPMO(cUPC), EPA WaterSense,
California Energy Commission (CEC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance, City of New
York and others
• ADA compliant
Certified by
PRODUCT SPECIFICATION
The widespread lavatory faucet shall have a maximum
flow rate of 1.2 gpm (4.5 lpm). Product shall have lever
handles. Product shall have a brass construction.
Product shall have a ceramic disk valve cartridge.
Product shall accommodate 6"-12" spread. Product
shall include metal pop-up drain assembly. Product
shall be TOTO Model TL230DD12#____.
Page 2
TL230DD12
Chart below scaled (axes) for lavatory faucets
Flow rate data / chart
Part No.: TL230DD12#$$
Description: Wyeth Widespread Faucet
SPECIFICATIONS
Wyeth™ Widespread Lavatory Faucet
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Maximum Flow Rate 1.2 gpm (4.5 lpm)
• Shipping Dimensions 13-1/2"L x 7-1/2"W x
4-3/4"H
• Shipping Weight 8.0 lbs.
Close
90
Open
Open
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0 20 40 60 80
Close
90
Pressure (kPa)
Pressure (psi)
9.5
7.6
Flow rate (lpm)
5.7
3.8
1.9
0.0

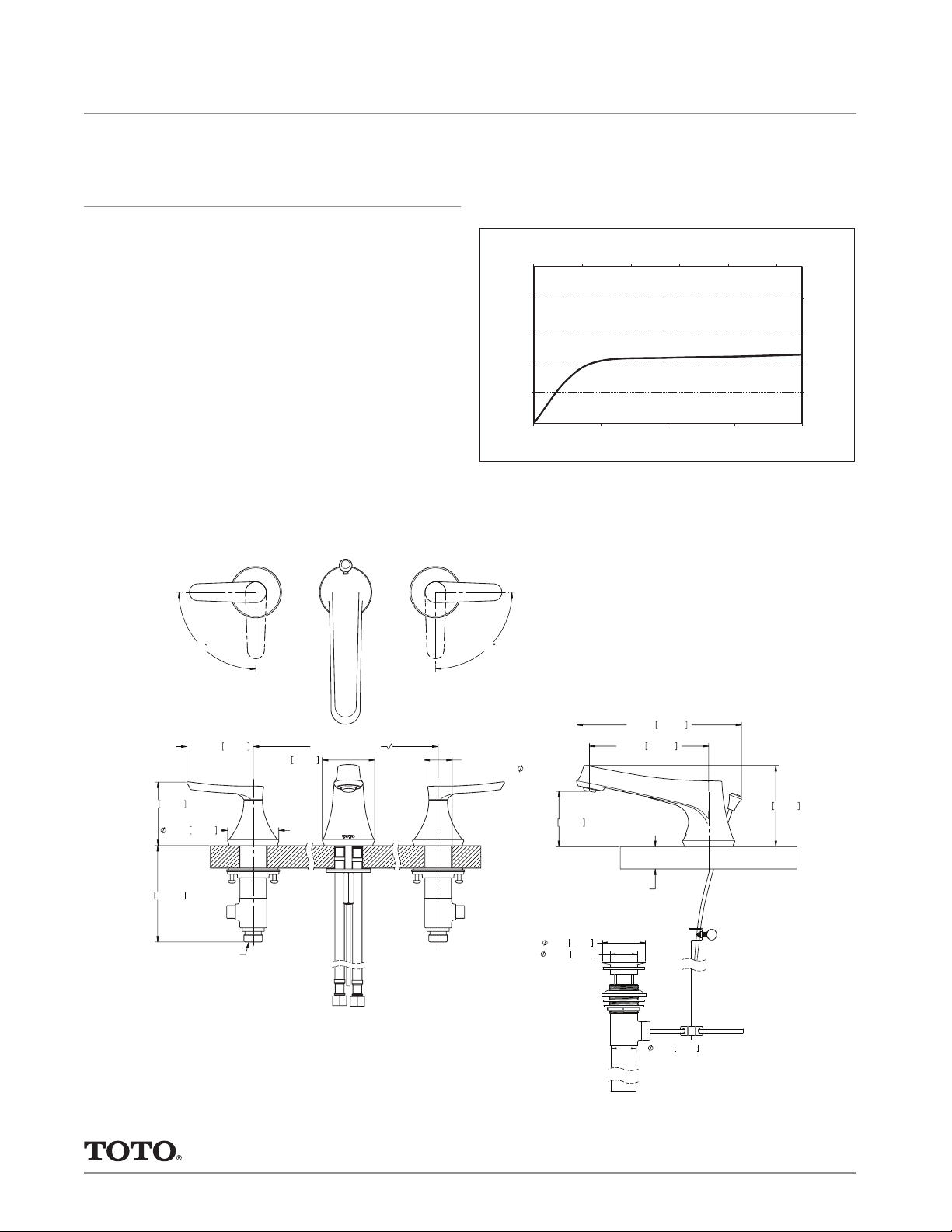

2-15/16"
2-13/16"
4-5/16"
72mm
2-1/4"
109mm
75mm
2-5/16"
58mm
HOT
1/2" NPSM
6-12" [152-305mm]
59mm
7-5/16"
186mm
5-5/16"
135mm
1-1/4"
3-5/8"
32mm
COLD
1-5/16-1-7/16"
[33-37mm]
Mounting Hole
2-7/16"
2-1/8"
1-5/16"
63mm
1-3/4" [44mm] Max.
Deck Thickness
54mm
34mm
These dimensions and specifications are subject to change without notice
92mm
#SS-01203, v.01Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
