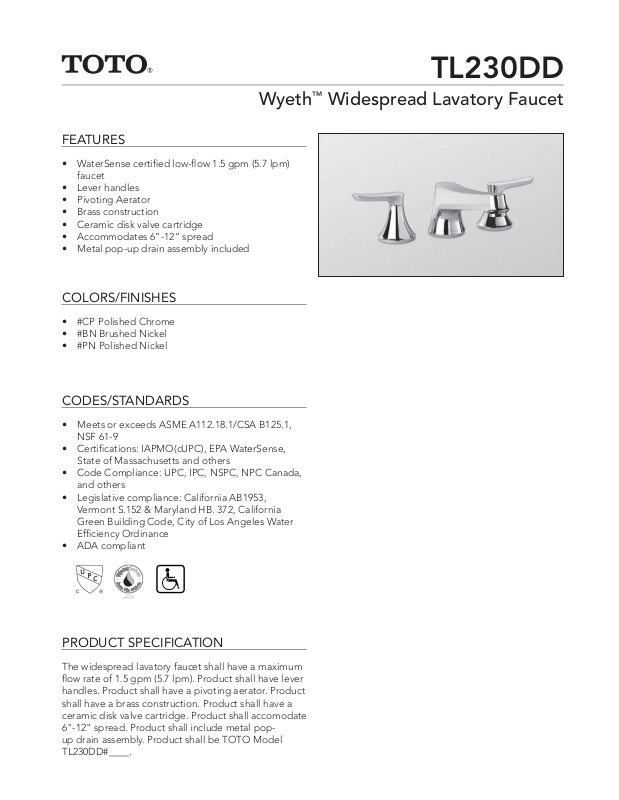

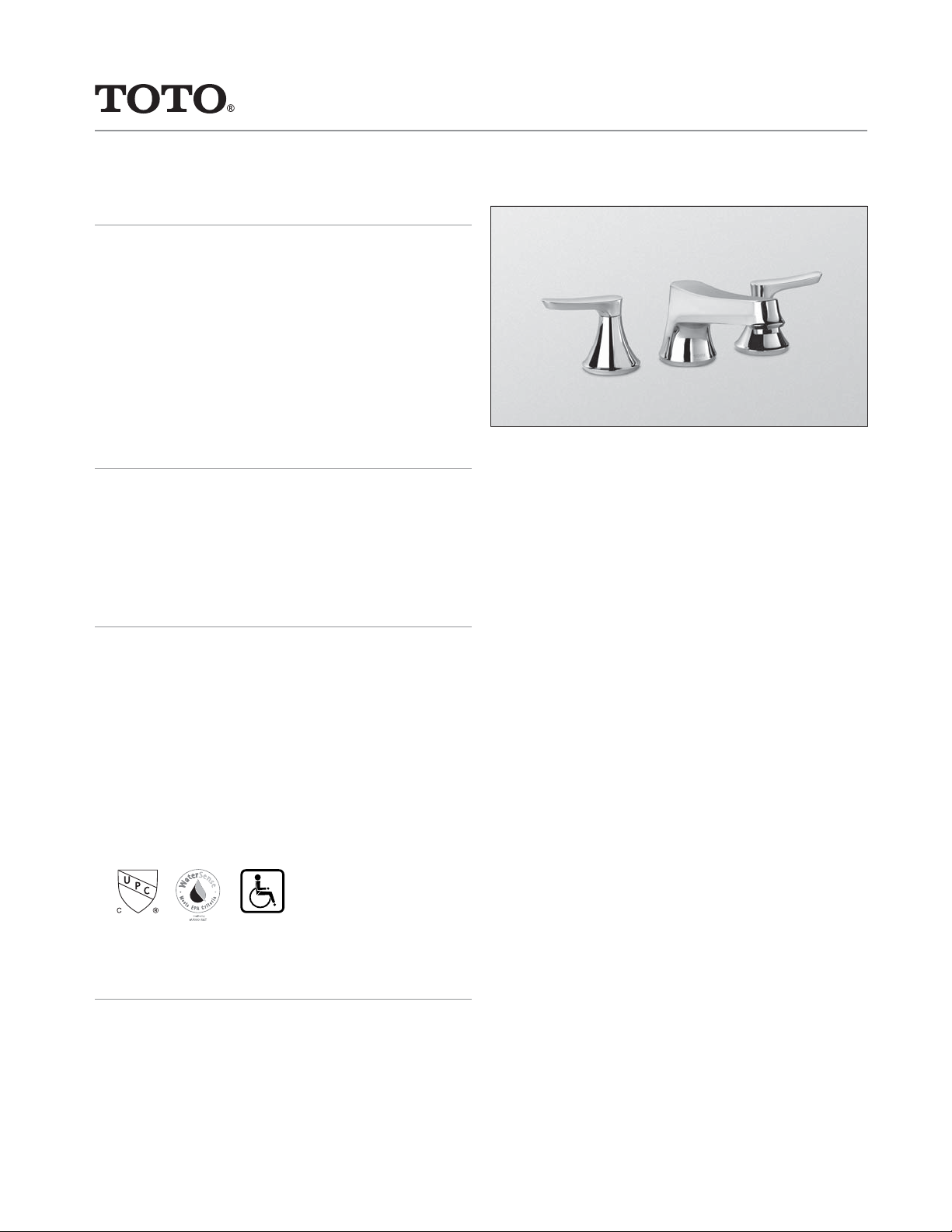

Wyeth™ Widespread Lavatory Faucet
FEATURES
• WaterSense certifi ed low-fl ow 1.5 gpm (5.7 lpm)
faucet
• Lever handles
• Pivoting Aerator
• Brass construction
• Ceramic disk valve cartridge
• Accommodates 6”-12” spread
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TL230DD
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9
• Certifi cations: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative compliance: California AB1953,
Vermont S.152 & Maryland HB. 372, California
Green Building Code, City of Los Angeles Water
Effi ciency Ordinance
• ADA compliant
PRODUCT SPECIFICATION
The widespread lavatory faucet shall have a maximum
fl ow rate of 1.5 gpm (5.7 lpm). Product shall have lever
handles. Product shall have a pivoting aerator. Product
shall have a brass construction. Product shall have a
ceramic disk valve cartridge. Product shall accomodate
6"-12" spread. Product shall include metal popup drain assembly. Product shall be TOTO Model
TL230DD#____.
Page 2

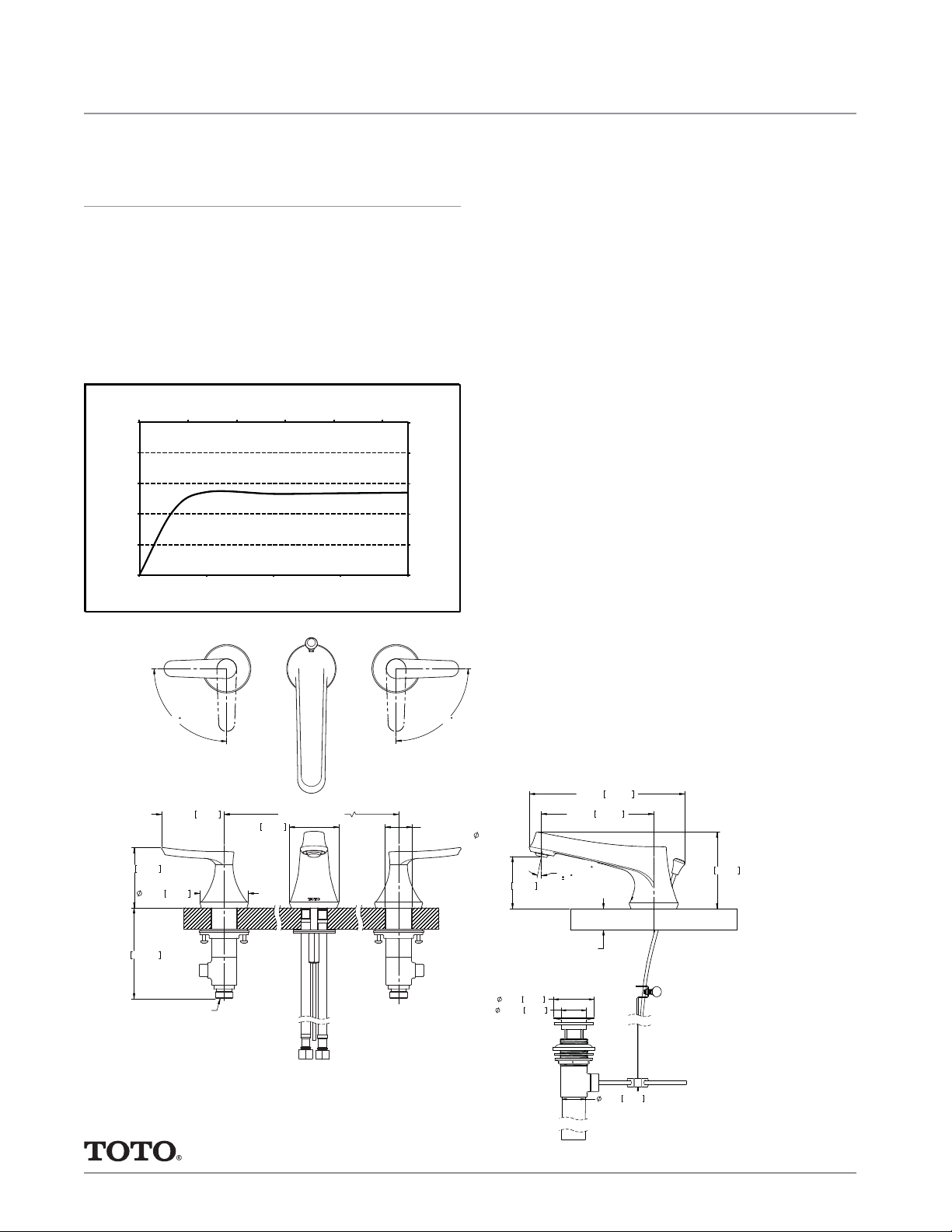

TL230DD
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Dimensions 13-1/2"L x 7-1/2"W x
4-3/4"H
• Shipping Weight 8.0 lbs.
• Maximum Flow Rate 1.5 gpm (5.7 lpm)
Wyeth™ Widespread Lavatory Faucet
75mm
Pressure (kPa)
Pressure (psi)
Open
2-5/16"
59mm
Open
6-12" [152-305mm]
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0 20 40 60 80
Close
90
2-15/16"
9.5
7.6
Flow rate (lpm)
5.7
3.8
1.9
0.0
90
1-5/16-1-7/16"
[33-37mm]
Mounting Hole
Close
5-5/16"
7-5/16"
186mm
135mm
2-13/16"
72mm
2-1/4"
58mm
4-5/16"
109mm
1/2" NPSM
HOT
COLD
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
2-7/16"
2-1/8"
1-5/16"
63mm
(
1-3/4" [44mm] Max.
Deck Thickness
54mm
34mm
12
6
Adjustability)
1-1/4"
32mm
3-5/8"
92mm
These dimensions and specifi cations are subject to change without notice
Printed in U.S.A. | © TOTO USA 09/12 | Printed on recycled paper ♻
#SS-00894, v.01
