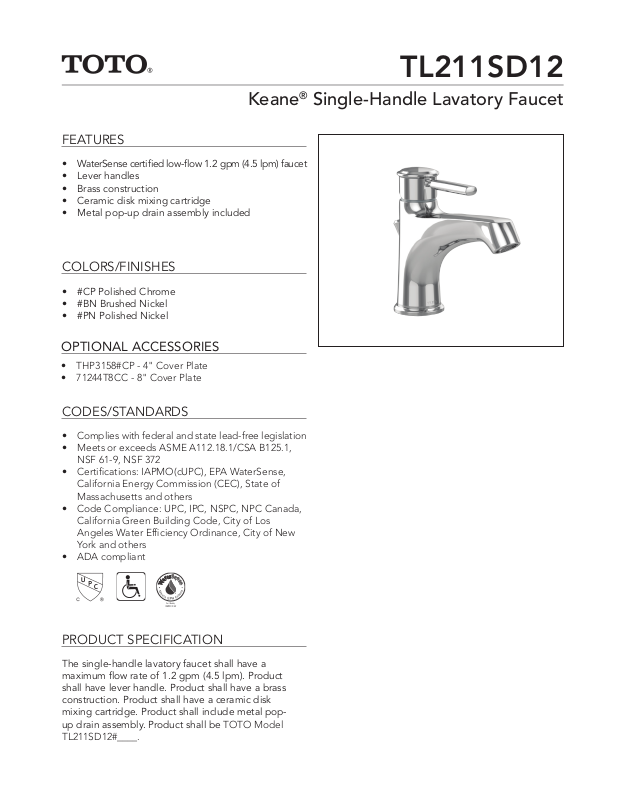

Page 1
Keane® Single-Handle Lavatory Faucet
FEATURES
• WaterSense certified low-flow 1.2 gpm (4.5 lpm) faucet
• Lever handles
• Brass construction
• Ceramic disk mixing cartridge
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
OPTIONAL ACCESSORIES
• THP3158#CP - 4" Cover Plate
• 71244T8CC - 8" Cover Plate
TL211SD12
CODES/STANDARDS
• Complies with federal and state lead-free legislation
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifi cations: IAPMO(cUPC), EPA WaterSense,
California Energy Commission (CEC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
California Green Building Code, City of Los
Angeles Water Effi ciency Ordinance, City of New
York and others
• ADA compliant
Certified by
PRODUCT SPECIFICATION
The single-handle lavatory faucet shall have a
maximum fl ow rate of 1.2 gpm (4.5 lpm). Product
shall have lever handle. Product shall have a brass
construction. Product shall have a ceramic disk
mixing cartridge. Product shall include metal popup drain assembly. Product shall be TOTO Model
TL211SD12#____.
Page 2
TL211SD12
50°
50°
7-15/16"
202mm
Cold
Hot
7-15/16"
202mm
Flow rate data / chart
Part No.: TL211SD12#$$
Description: Keane Single Handle Faucet
SPECIFICATIONS
Keane® Single-Handle Lavatory Faucet
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Maximum Flow Rate 1.2 gpm (4.5 lpm)
• Shipping Dimensions 15"L x 7-3/4"W x 3"H
• Shipping Weight 5.0 lbs.
2-1/4"
57mm
1-3/4" [44mm] Max.
Deck Thickness
6-5/16"
161mm
3-11/16"
Pressure (kPa)
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0 20 40 60 80
Pressure (psi)
1-11/16"
93mm
Closed
5-13/16"
25°
147mm
Open
42mm
9.5
7.6
Flow rate (lpm)
5.7
3.8
1.9
0.0
1-5/16" - 1-7/16"
[33-37mm]
Mounting Hole
3/8" Comp.
Hot
50°
50°
Hose Length
20-5/8"
Cold
524mm
2-1/8"
54mm
1-5/16"
34mm
1-1/4"
32mm
These dimensions and specifications are subject to change without notice
#SS-01179 v.01Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
