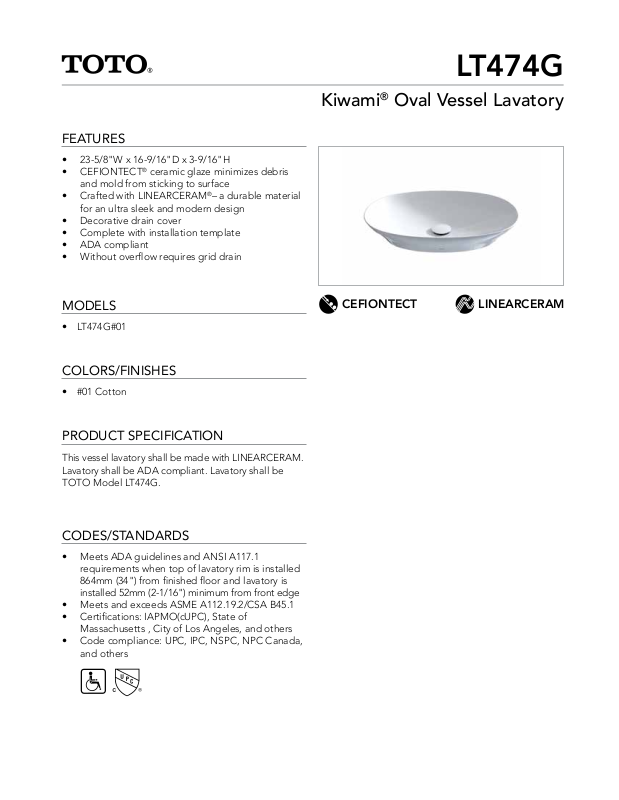

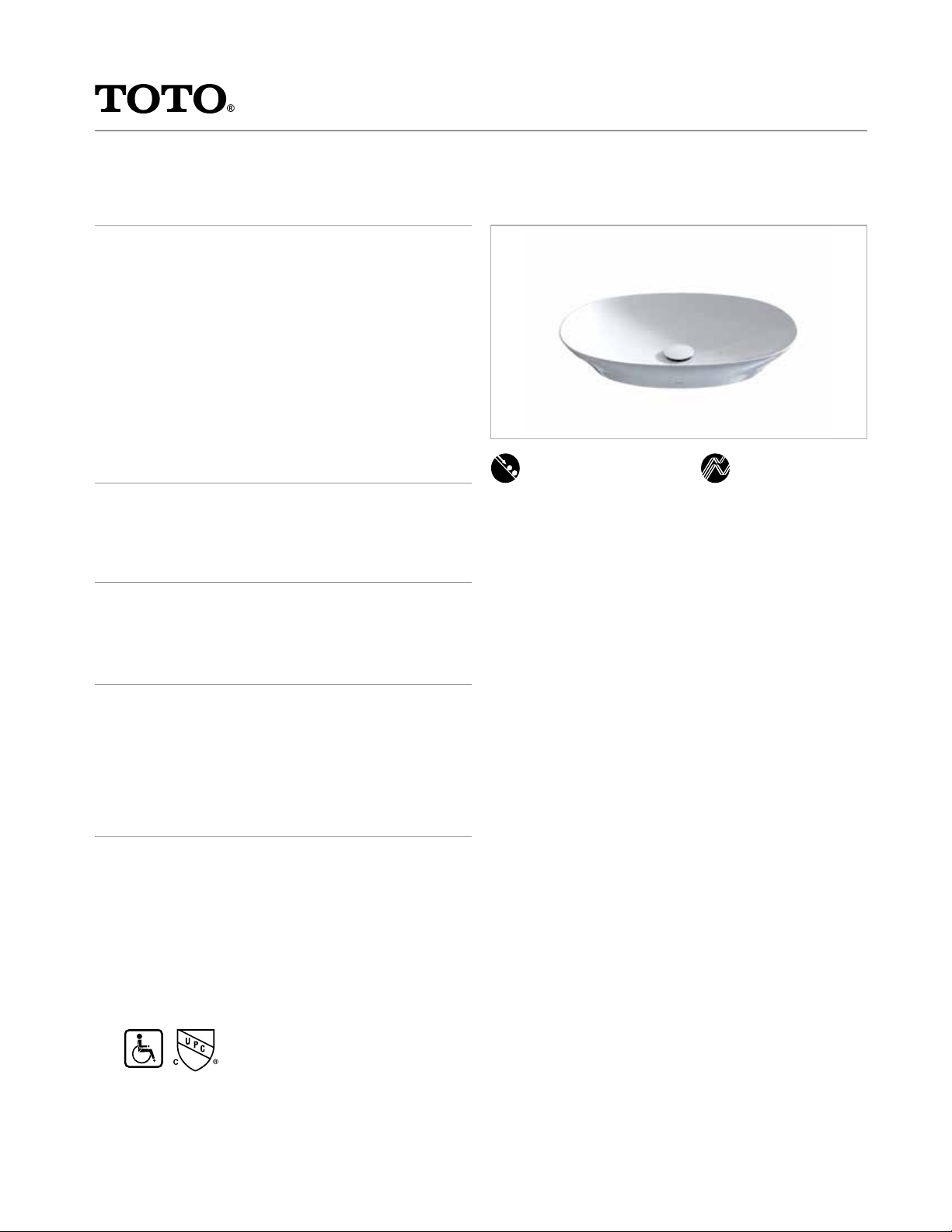

FEATURES
• 23-5/8"W x 16-9/16"D x 3-9/16"H
• CEFIONTECT® ceramic glaze minimizes debris
and mold from sticking to surface
• Crafted with LINEARCERAM®– a durable material
for an ultra sleek and modern design
• Decorative drain cover
• Complete with installation template
• ADA compliant
• Without overow requires grid drain
LT474G
Kiwami® Oval Vessel Lavatory
MODELS
• LT474G#01
COLORS/FINISHES
• #01 Cotton
PRODUCT SPECIFICATION
This vessel lavatory shall be made with LINEARCERAM.
Lavatory shall be ADA compliant. Lavatory shall be
TOTO Model LT474G.
CODES/STANDARDS
• Meets ADA guidelines and ANSI A117.1
requirements when top of lavatory rim is installed
864mm (34") from nished oor and lavatory is
installed 52mm (2-1/16") minimum from front edge
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
CEFIONTECT LINEARCERAM
Page 2

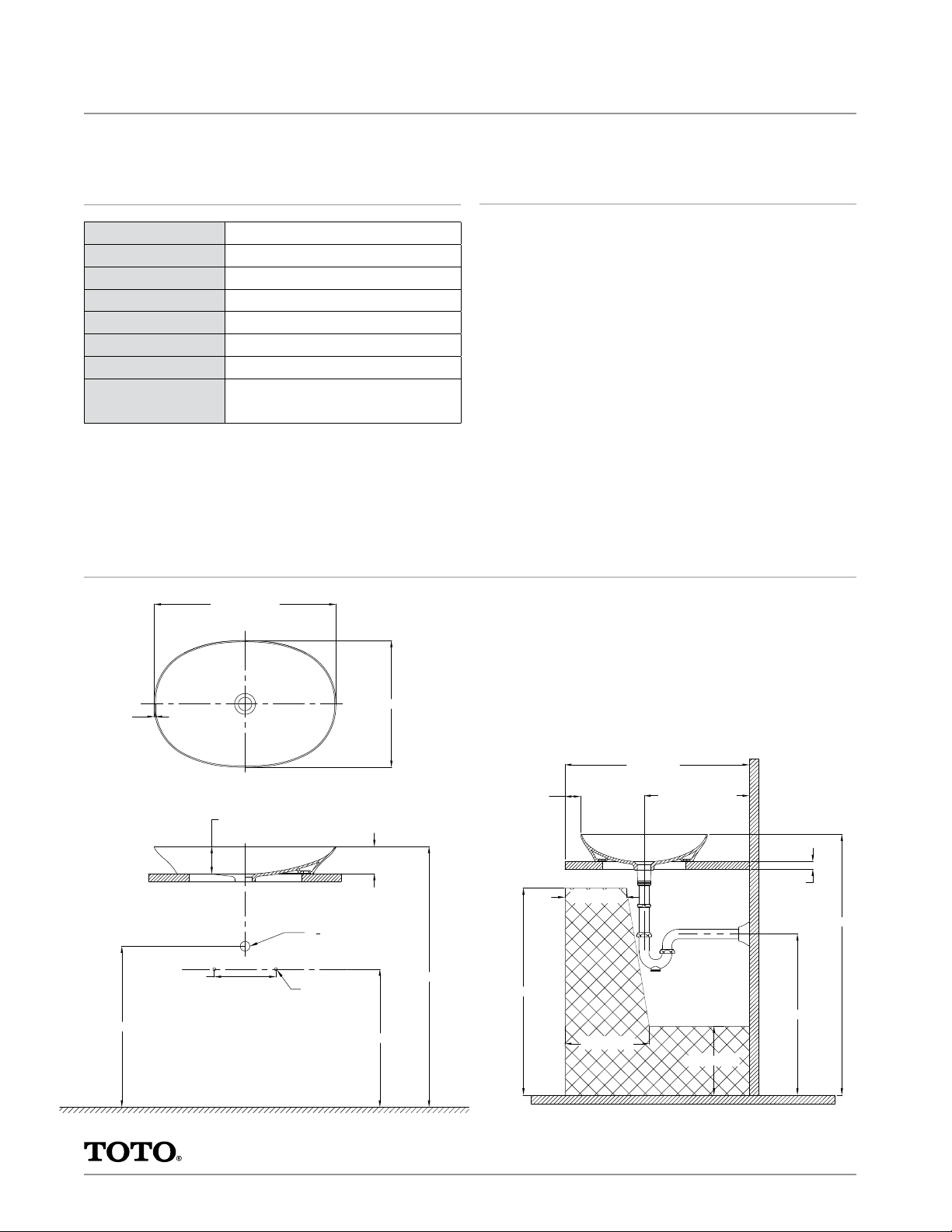

LT474G
34" [864mm]
1
1
4
" *
WASTE
8" [203mm]
* Suggested Dimensions
3/8" * SUPPLY
*
18" [457mm]
21" [533mm]
*
3 9/16" [90mm]
3 9/16" [90mm]
23 5/8" [600mm]
16 9/16" [420mm]
3/16" [4mm] Ref.
ADA COMPLIANCE
MAX
24" [610mm]
2 1/16" [52mm]
27" [686mm]
1" [25mm]
11" [279mm]
9" [228mm]
8" [203mm]
34" [864mm]
21" [533mm]
13 11/16" [348mm]
MINIMUM
Kiwami® Oval Vessel Lavatory
SPECIFICATIONS
Was te
Size
Basin
Basin Depth
Warranty
Material
Shipping Weight
Shipping
Dimensions
DIMENSIONS
1-1/4"
23-5/8"W x 16-9/16"D x 3-9/16"H
23-5/16"W x 16-1/4"D
3-1/8"
One Year Limited Warranty
LINEARCERAM
®
21 lbs
25" x 17-7/8" x 8-3/4"
INSTALLATION NOTES
Use with Included Grid Drain Assembly Only. The
recommended faucet height from deck to spout is
8-5/16" (211mm) and below. Aim water supply away
from the drain cover.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
#SS-01494 v.01
