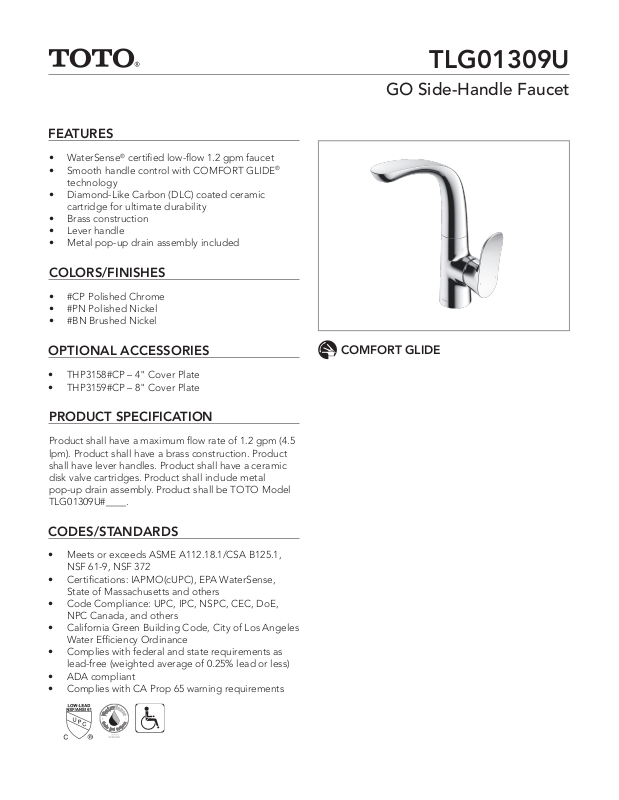

Page 1
FEATURES
• WaterSense® certified low-flow 1.2 gpm faucet
• Smooth handle control with COMFORT GLIDE®
technology
• Diamond-Like Carbon (DLC) coated ceramic
cartridge for ultimate durability
• Brass construction
• Lever handle
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
• #PN Polished Nickel
• #BN Brushed Nickel
TLG01309U
GO Side-Handle Faucet
OPTIONAL ACCESSORIES
• THP3158#CP – 4" Cover Plate
• THP3159#CP – 8" Cover Plate
PRODUCT SPECIFICATION
Product shall have a maximum flow rate of 1.2 gpm (4.5
lpm). Product shall have a brass construction. Product
shall have lever handles. Product shall have a ceramic
disk valve cartridges. Product shall include metal
pop-up drain assembly. Product shall be TOTO Model
TLG01309U#____.
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifications: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, CEC, DoE,
NPC Canada, and others
• California Green Building Code, City of Los Angeles
Water Efficiency Ordinance
• Complies with federal and state requirements as
lead-free (weighted average of 0.25% lead or less)
• ADA compliant
• Complies with CA Prop 65 warning requirements
COMFORT GLIDE
Page 2
TLG01309U
kPa lpm psi gpm
0 0 0 0
50 2.57 7.25 0.678922
100 3.63 14.5 0.958945
200 4.16 29 1.098956
300 4.23 43.5 1.117448
400 4.11 58 1.085747
413 4.13 60 1.091031
500 4.26 72.5 1.125373
550 4.28 80 1.130656
SPECIFICATIONS
GO Side-Handle Faucet
Material
Maximum Flow Rate
Warranty
DIMENSIONS
2-3/8”
(60mm)
Brass
1.2 gpm (4.5 lpm)
Lifetime Limited Warranty (Residential Use)
One Year (Commercial Use)
4-11/16”
(118.8mm)
5-3/4”
(145.4mm)
Cold Hot
9-3/4”
(248mm)
8-11/15”
(227.4mm)
Blue Red
1-9/16” (40mm)
Mounting Hole
Ø1-5/16”~1-7/16”
(Ø33~37mm)
2-15/16”
(74.7mm)
0 100 200 300 400 500
1.4
1.2
1
0.8
0.6
0.4
Flow rate (gpm)
0.2
0
0 10 20 30 40 50 60 70 80
Max Deck Thickness
1-3/8” (35mm)
Pressure (kPa)
Pressure (psi)
5.3
4.5
3.8
3.0
2.3
1.5
0.8
0.0
Flow rate (lpm)
20-1/4”
(515mm)
3/8” Comp
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
3/8” Comp
Ø2-7/16”
(Ø62mm)
7-15/16” (202mm)
Ø1-1/4”
(Ø31.75mm)
12” (304.6mm)
These dimensions and specications are subject to change without notice
# SS-01478 v.01
