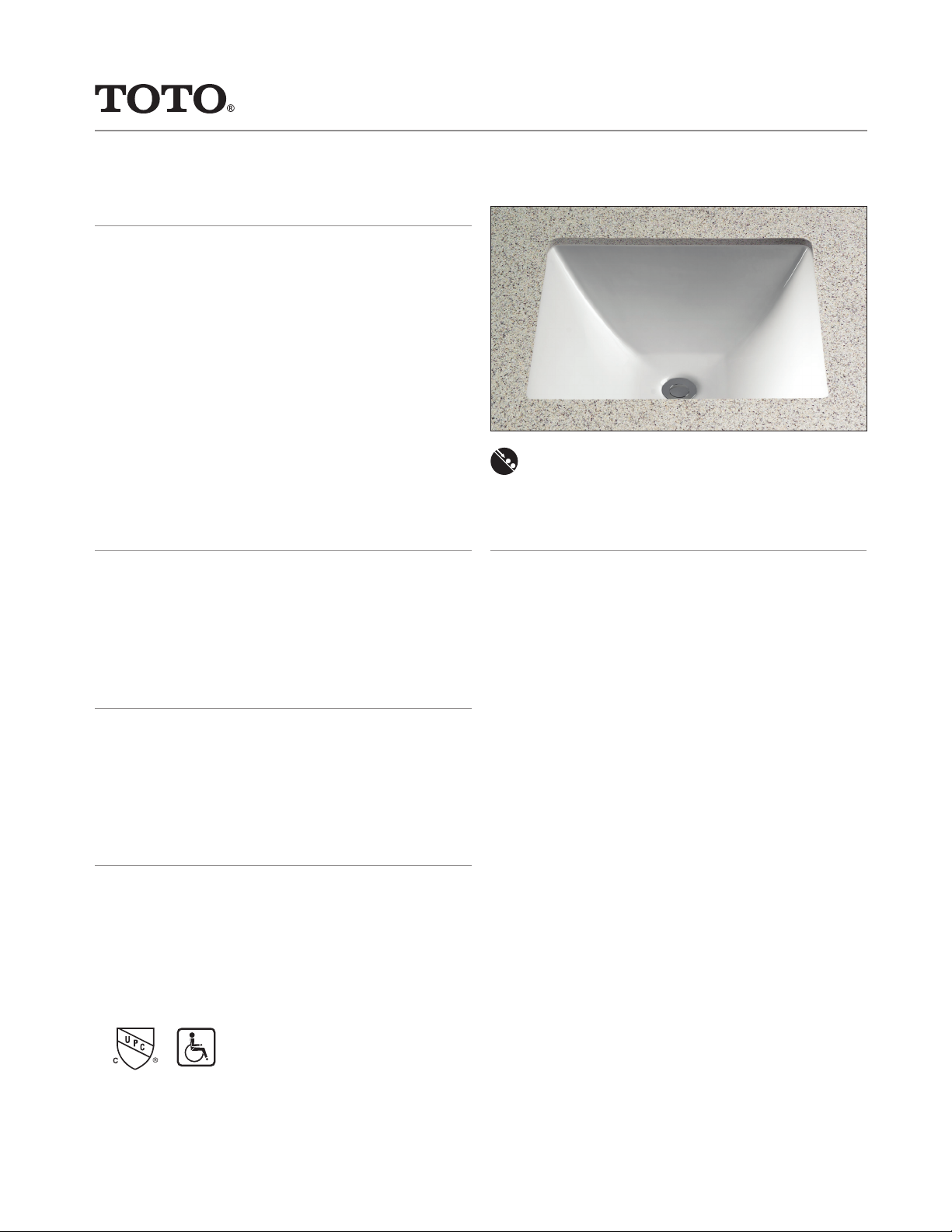

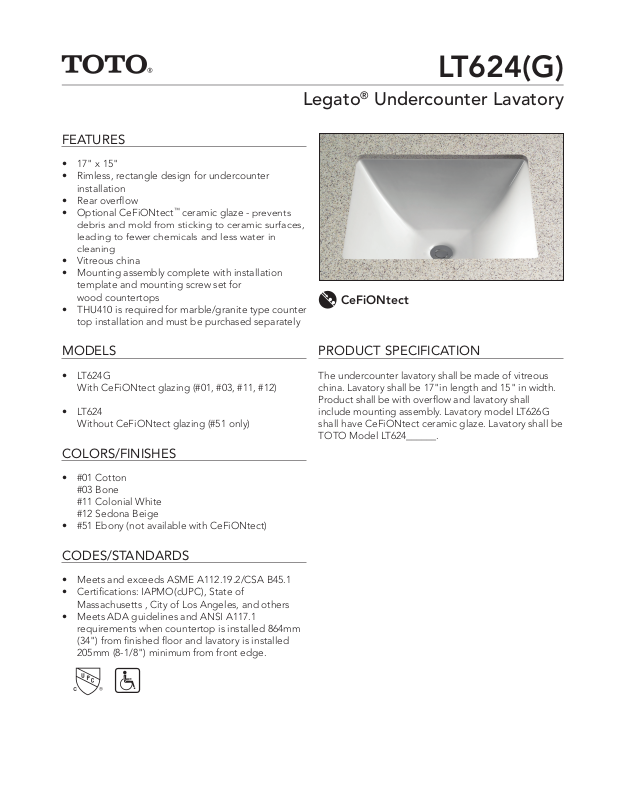

FEATURES
• 17" x 15"
• Rimless, rectangle design for undercounter
installation
• Rear overflow
• Optional CeFiONtect™ ceramic glaze -
debris and mold from sticking to ceramic surfaces,
leading to fewer chemicals and less water in
cleaning
• Vitreous china
• Mounting assembly complete with installation
template and mounting screw set for
wood countertops
• THU410 is required for marble/granite type counter
top installation and must be purchased separately
prevents
LT624(G)
Legato® Undercounter Lavatory
CeFiONtect
MODELS
• LT624G
With CeFiONtect glazing (#01, #03, #11, #12)
• LT624
Without CeFiONtect glazing (#51 only)
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
• #51 Ebony (not available with CeFiONtect)
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Meets ADA guidelines and ANSI A117.1
requirements when countertop is installed 864mm
(34") from finished floor and lavatory is installed
205mm (8-1/8") minimum from front edge.
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous
china. Lavatory shall be 17"in length and 15" in width.
Product shall be with overflow and lavatory shall
include mounting assembly. Lavatory model LT626G
shall have CeFiONtect ceramic glaze. Lavatory shall be
TOTO Model LT624______.
Page 2

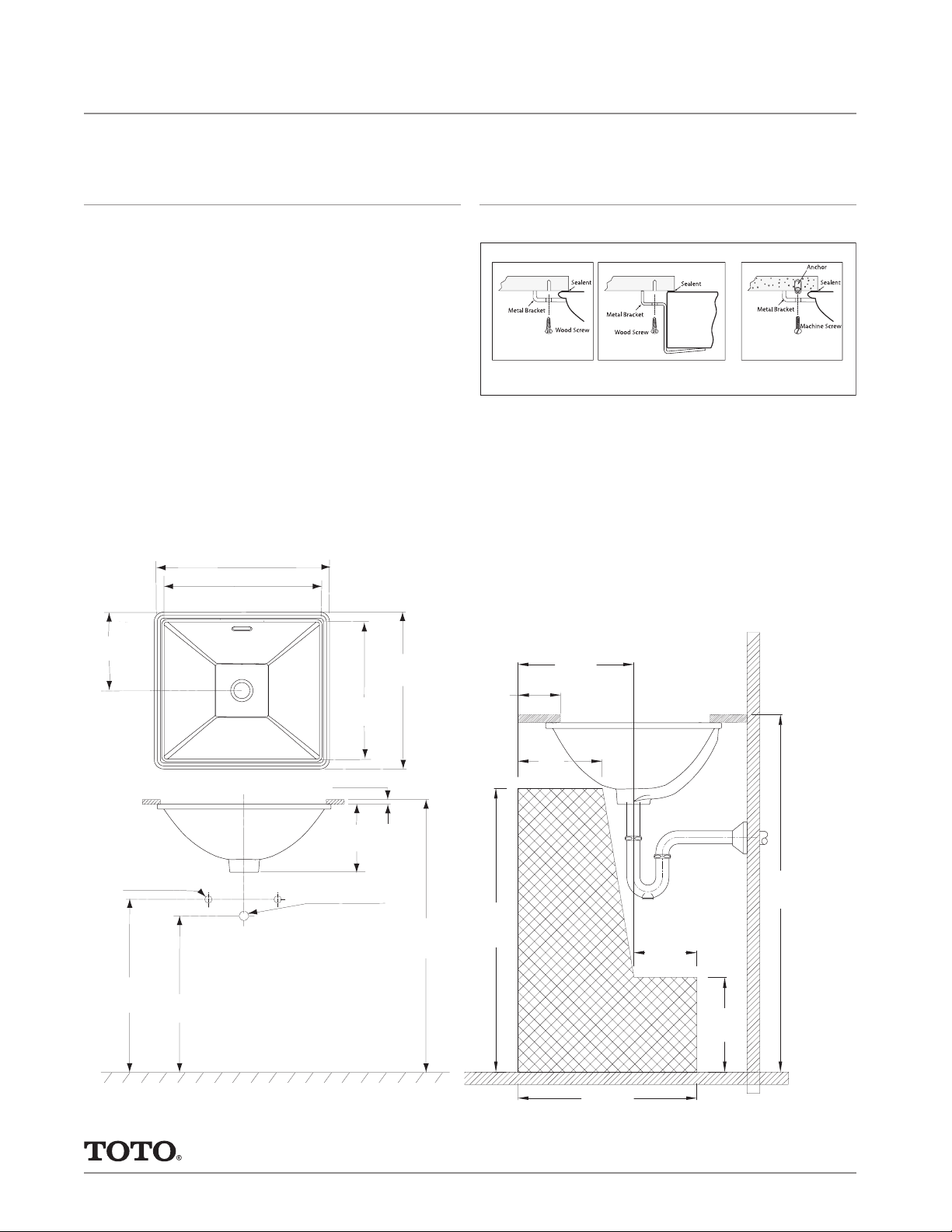

18”
(457 mm)*
21”
(533 mm)*
SUPPLIES
34”
(863 mm)*
7-7/8”
(200 mm)
3/4” (19 mm)
17”
(431 mm)
15” (381 mm)
BASIN DEPTH
17” (432 mm)
BASIN WIDTH
19” (482 mm)
8.5”
(215 mm)
1-1/4” (32 mm) O.D. WASTE
*Suggested Dimension
Mounting Hardware
LT624(G)
Legato® Undercounter Lavatory
SPECIFICATIONS INSTALLATION NOTES
• Waste 1-1/4" O.D.
• Size 19"W x 17"D
• Basin 17"W x 15"D
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight 24.5 lbs.
• Shipping Dimensions 22-1/4"W X 18-3/4"D X
9-3/4H"
Wood/Composite Wood/Etc.
THU408 or THU409
(Included)
Marble/Granite/Etc.
THU410
(Sold Separately)
8.5”
(215 mm)
19” (482 mm)
17” (432 mm)
BASIN WIDTH
15” (381 mm)
BASIN DEPTH
3/4” (19 mm)
7-7/8”
(200 mm)
17”
(431 mm)
4.5”
(114 mm)
(286 mm)
8”
(203 mm)
11-1/4”
21”
(533 mm)*
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
SUPPLIES
18”
(457 mm)*
1-1/4” (32 mm) O.D. WASTE
*Suggested Dimension
27”
34”
(863 mm)*
(686 mm)
17”
(432 mm)
6”
(152 mm)
9”
(229 mm)
ADA Requirements
These dimensions and specications are subject to change without notice
MAX
34”
(864 mm)
#SS-00436 v.05
