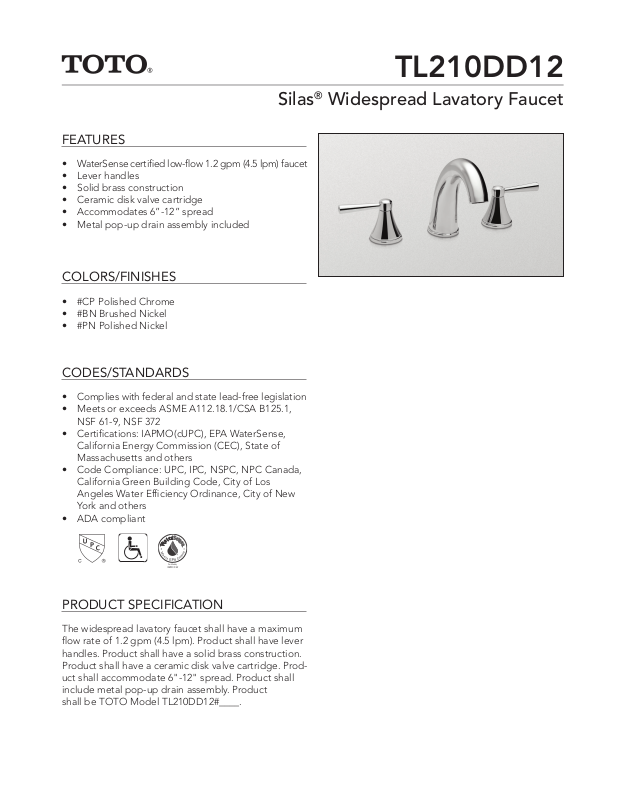

Silas® Widespread Lavatory Faucet
FEATURES
• WaterSense certified low-flow 1.2 gpm (4.5 lpm) faucet
• Lever handles
• Solid brass construction
• Ceramic disk valve cartridge
• Accommodates 6”-12” spread
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TL210DD12
CODES/STANDARDS
• Complies with federal and state lead-free legislation
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifications: IAPMO(cUPC), EPA WaterSense,
California Energy Commission (CEC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
California Green Building Code, City of Los
Angeles Water Efficiency Ordinance, City of New
York and others
• ADA compliant
Certified by
PRODUCT SPECIFICATION
The widespread lavatory faucet shall have a maximum
flow rate of 1.2 gpm (4.5 lpm). Product shall have lever
handles. Product shall have a solid brass construction.
Product shall have a ceramic disk valve cartridge. Product shall accommodate 6"-12" spread. Product shall
include metal pop-up drain assembly. Product
shall be TOTO Model TL210DD12#____.
Page 2
TL210DD12
Flow rate data / chart
Part No.: TL210DD12#$$
Description: Silas Widespread Faucet
SPECIFICATIONS
Silas® Widespread Lavatory Faucet
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Maximum Flow Rate 1.2 gpm (4.5 lpm)
• Shipping Dimensions 13-1/2"L x 7-1/2"W x
4-3/4"H
• Shipping Weight 8.6 lbs.
Close
90
Open
Open
Pressure (kPa)
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0 20 40 60 80
Pressure (psi)
Close
90
9.5
7.6
Flow rate (lpm)
5.7
3.8
1.9
0.0
2-11/16"
69mm
2-1/8"
4-5/16"
3-1/16"
54mm
79mm
109mm
1/2" NPSM
2-1/8"
HOT
54mm
6-12" [52-305mm]
COLD
7-5/8"
194mm
5-5/16"
135mm
1-5/16”-1-7/16"
[33-37mm]
Mounting Hole
4-1/4"
108mm
1-3/4" [44mm] Max.
Deck Thickness
2-1/8"
1-5/16"
54mm
34mm
28
1-1/4"
32mm
6-1/16"
154mm
These dimensions and specifications are subject to change without notice
