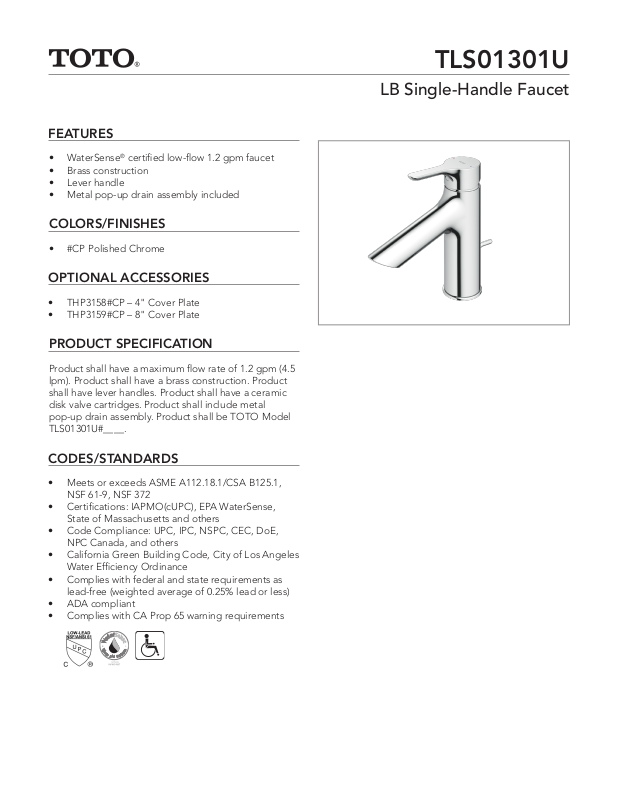

FEATURES
• WaterSense® certified low-flow 1.2 gpm faucet
• Brass construction
• Lever handle
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
OPTIONAL ACCESSORIES
• THP3158#CP – 4" Cover Plate
• THP3159#CP – 8" Cover Plate
PRODUCT SPECIFICATION
TLS01301U
LB Single-Handle Faucet
Product shall have a maximum flow rate of 1.2 gpm (4.5
lpm). Product shall have a brass construction. Product
shall have lever handles. Product shall have a ceramic
disk valve cartridges. Product shall include metal
pop-up drain assembly. Product shall be TOTO Model
TLS01301U#____.
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifications: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, CEC, DoE,
NPC Canada, and others
• California Green Building Code, City of Los Angeles
Water Efficiency Ordinance
• Complies with federal and state requirements as
lead-free (weighted average of 0.25% lead or less)
• ADA compliant
• Complies with CA Prop 65 warning requirements
Page 2
Red
Blue
Cold water
Mixed
water
Hot water
45°
45°
Red
Hot water
45°
1-5/16”~
1-7/16”
(33-37mm)
Mounting
hole
1-5/16”~
1-7/16”
Mounting hole
(33-37mm)
22°
25°
(241mm)
(Ø60mm)
2-3/8”
9-1/2”
Mixed
water
45°
45°
Mixed
water
45°
45°
22°
(173mm)
25°
(106mm)
(264mm)
Deck
thickness
Maximum
(285mm)
(198mm)
(423mm)
open
close
3/8”
Comp
Maximum 11-1/4”
7-13/16”
4-3/16”
6-13/6”
10-7/16”
16-11/16”
1-7/16”
(Ø60mm)
2-3/8”
(Ø31.75mm)
1-1/4”
(35mm)
Blue
Cold water
Mixed
water
45°
Red
Blue
Cold water
Mixed
water
Hot water
45°
45°
Red
Blue
Cold water
Mixed
water
Hot water
45°
45°
TLS01301U
SPECIFICATIONS
LB Single-Handle Faucet
Material
Maximum Flow Rate
Warranty
DIMENSIONS
Red
Hot water
45°
Mixed
water
Brass
1.2 gpm (4.5 lpm)
Lifetime Limited Warranty (Residential Use)
One Year (Commercial Use)
Blue
Cold water
45°
25°
22°
close
2-1/2”
open
4-3/16”
(63mm)
(106mm)
0 100 200 300 400 500
1.4
1.2
1
0.8
0.6
0.4
Flow rate (gpm)
0.2
0
0 10 20 30 40 50 60 70 80
(35mm)
1-7/16”
Deck
thickness
Maximum
Pressure (kPa)
Pressure (psi)
6-1/8”
(154mm)
5.3
4.5
3.8
3.0
2.3
1.5
0.8
0.0
Flow rate (lpm)
7-13/16”
(198mm)
(Ø60mm)
(Ø31.75mm)
Maximum 11-1/4”
hole
Mounting
1-5/16”~
1-7/16”
(33-37mm)
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
2-3/8”
14-5/16”
(363mm)
1-1/4”
(285mm)
These dimensions and specications are subject to change without notice
3/8”
Comp
# SS-01482 v.01
