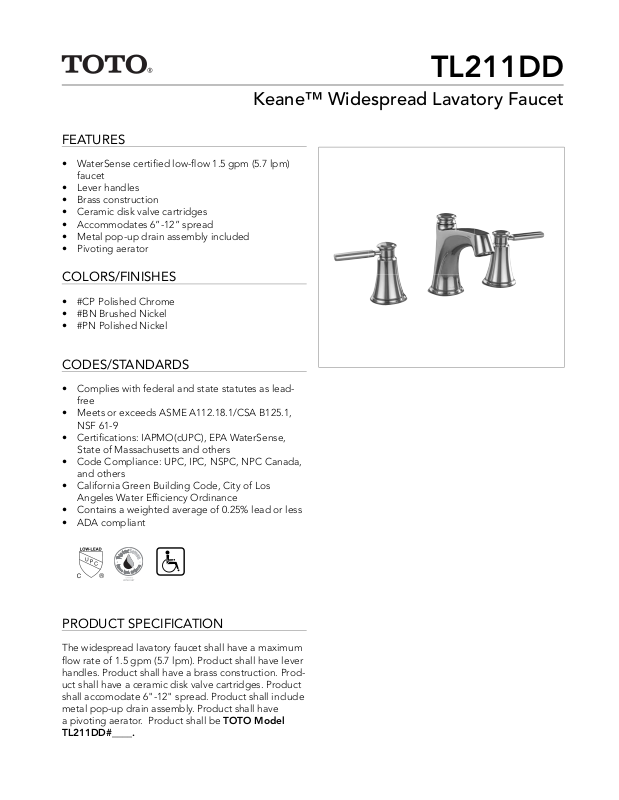

Keane™ Widespread Lavatory Faucet
FEATURES
• WaterSense certified low-flow 1.5 gpm (5.7 lpm)
faucet
• Lever handles
• Brass construction
• Ceramic disk valve cartridges
• Accommodates 6”-12” spread
• Metal pop-up drain assembly included
• Pivoting aerator
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TL211DD
• Complies with federal and state statutes as leadfree
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9
• Certifications: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• California Green Building Code, City of Los
Angeles Water Efficiency Ordinance
• Contains a weighted average of 0.25% lead or less
• ADA compliant
PRODUCT SPECIFICATION
The widespread lavatory faucet shall have a maximum
fl ow rate of 1.5 gpm (5.7 lpm). Product shall have lever
handles. Product shall have a brass construction. Product shall have a ceramic disk valve cartridges. Product
shall accomodate 6"-12" spread. Product shall include
metal pop-up drain assembly. Product shall have
a pivoting aerator. Product shall be TOTO Model
TL211DD#____.
Page 2
TL211DD
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Dimensions 13-1/2"L x 7-1/2"W x
4-3/4"H
• Shipping Weight 8.6 lbs.
• Maximum Flow Rate 1.5 gpm (5.7 lpm)
Pressure (kPa)
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0 20 40 60 80
Pressure (psi)
9.5
7.6
5.7
3.8
1.9
0.0
Flow rate (lpm)
Keane™ Widespread Lavatory Faucet
3-11/16"
4-5/16"
94mm
109mm
&ORVH
2-1/4"
90°
3-1/4"
57mm
1360
83mm
2SHQ
2-1/4"
+27
6-12" [152-305mm]
57mm
&2/'
2SHQ
&ORVH
90°
1-5/16" - 1-7/16"
[33-37mm]
Mounting Hole
5-1/8"
130mm
7"
178mm
5-3/8"
137mm
30°
6° Adjustability)
54mm
34mm
(
1-3/4" [44mm] Max.
Deck Thickness
4"
101mm
2-1/8"
1-5/16"
These dimensions and specifi cations are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
1-1/4"
32mm
#SS-01055, v.02
