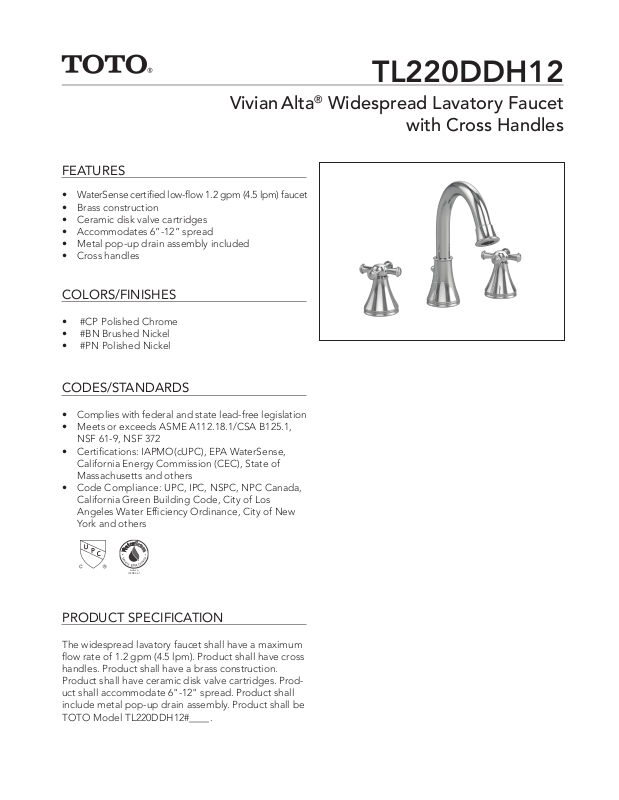

Page 1
Vivian Alta® Widespread Lavatory Faucet
FEATURES
• WaterSense certifi ed low-fl ow 1.2 gpm (4.5 lpm) faucet
• Brass construction
• Ceramic disk valve cartridges
• Accommodates 6”-12” spread
• Metal pop-up drain assembly included
• Cross handles
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TL220DDH12
with Cross Handles
CODES/STANDARDS
• Complies with federal and state lead-free legislation
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifi cations: IAPMO(cUPC), EPA WaterSense,
California Energy Commission (CEC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
California Green Building Code, City of Los
Angeles Water Effi ciency Ordinance, City of New
York and others
Certified by
PRODUCT SPECIFICATION
The widespread lavatory faucet shall have a maximum
fl ow rate of 1.2 gpm (4.5 lpm). Product shall have cross
handles. Product shall have a brass construction.
Product shall have ceramic disk valve cartridges. Product shall accommodate 6"-12" spread. Product shall
include metal pop-up drain assembly. Product shall be
TOTO Model TL220DDH12#____.
Page 2
TL220DDH12
Flow rate data / chart
Part No.: TL220DD1H12#$$
Description: Vivian Alta Widespread Faucet
SPECIFICATIONS
Vivian Alta® Widespread Lavatory Faucet with Cross Handles
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Maximum Flow Rate 1.2 gpm (4.5 lpm)
• Shipping Dimensions: 11-1/4" x 8-1/4" x 6"
• Shipping Weight: 8.1 lbs.
CLOSEDCLOSED
90°
OPEN OPEN
90°
Pressure (kPa)
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0 20 40 60 80
Pressure (psi)
9.5
7.6
Flow rate (lpm)
5.7
3.8
1.9
0.0
6-12" [152-305mm]
1-1/4" - 1-3/8"
[32-35mm]
Hole
1/2" NPSM 1/2" NPSM
1-3/8" - 1-1/2"
[35-39mm]
Hole
HOT
COLD
7-1/2"
190mm
5-9/16"
141mm
2-7/8"
4-1/8"
2-1/16"
52mm
73mm
106mm
4-3/4"
2-1/8"
1-5/16"
121mm
1-1/4"
54mm
34mm
30°
32mm
7-3/4"
196mm
These dimensions and specications are subject to change without notice
#SS-01202, v.01Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
