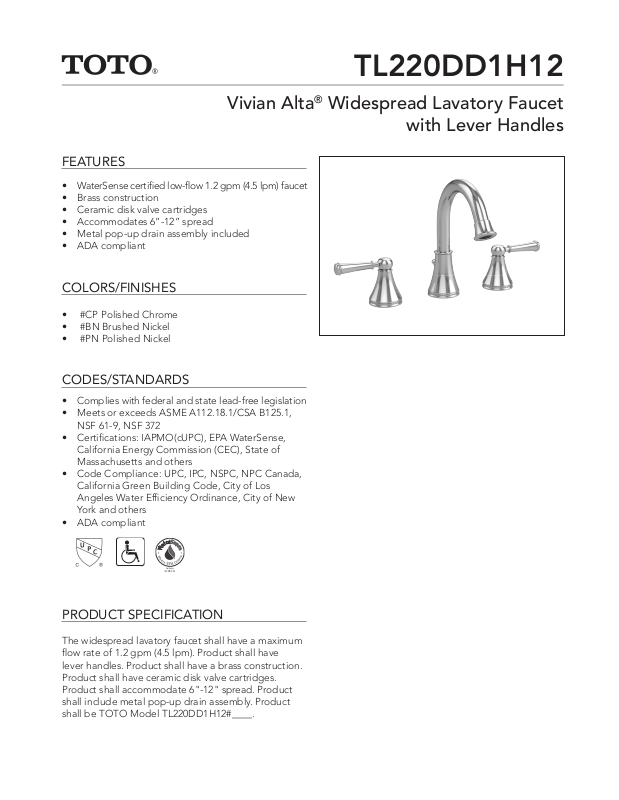

Vivian Alta® Widespread Lavatory Faucet
FEATURES
• WaterSense certifi ed low-fl ow 1.2 gpm (4.5 lpm) faucet
• Brass construction
• Ceramic disk valve cartridges
• Accommodates 6”-12” spread
• Metal pop-up drain assembly included
• ADA compliant
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TL220DD1H12
with Lever Handles
CODES/STANDARDS
• Complies with federal and state lead-free legislation
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifi cations: IAPMO(cUPC), EPA WaterSense,
California Energy Commission (CEC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
California Green Building Code, City of Los
Angeles Water Effi ciency Ordinance, City of New
York and others
• ADA compliant
Certified by
PRODUCT SPECIFICATION
The widespread lavatory faucet shall have a maximum
fl ow rate of 1.2 gpm (4.5 lpm). Product shall have
lever handles. Product shall have a brass construction.
Product shall have ceramic disk valve cartridges.
Product shall accommodate 6"-12" spread. Product
shall include metal pop-up drain assembly. Product
shall be TOTO Model TL220DD1H12#____.
Page 2
TL220DD1H12
Flow rate data / chart
Part No.: TL220DD1H12#$$
Description: Vivian Alta Widespread Faucet
Vivian Alta® Widespread Lavatory Faucet with Lever Handles
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Maximum Flow Rate 1.2 gpm (4.5 lpm)
• Shipping Dimensions 11-1/4" x 8-1/4" x 6"
• Shipping Weight 8.2 lbs.
CLOSEDCLOSED
90°
OPEN OPEN
90°
Pressure (kPa)
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
0.0
0 20 40 60 80
Pressure (psi)
9.5
7.6
Flow rate (lpm)
5.7
3.8
1.9
0.0
3-3/16"
81mm
7-1/2"
190mm
5-9/16"
141mm
6-12" [152-305mm]
54mm
34mm
30°
32mm
1-1/4" - 1-3/8"
[32-35mm]
Hole
1-3/8" - 1-1/2"
[35-39mm]
Hole
HOT
1/2" NPSM1/2" NPSM
COLD
2-1/16"
2-7/8"
4-1/8"
52mm
106mm
73mm
4-3/4"
2-1/8"
1-5/16"
121mm
1-1/4"
7-3/4"
196mm
These dimensions and specications are subject to change without notice
