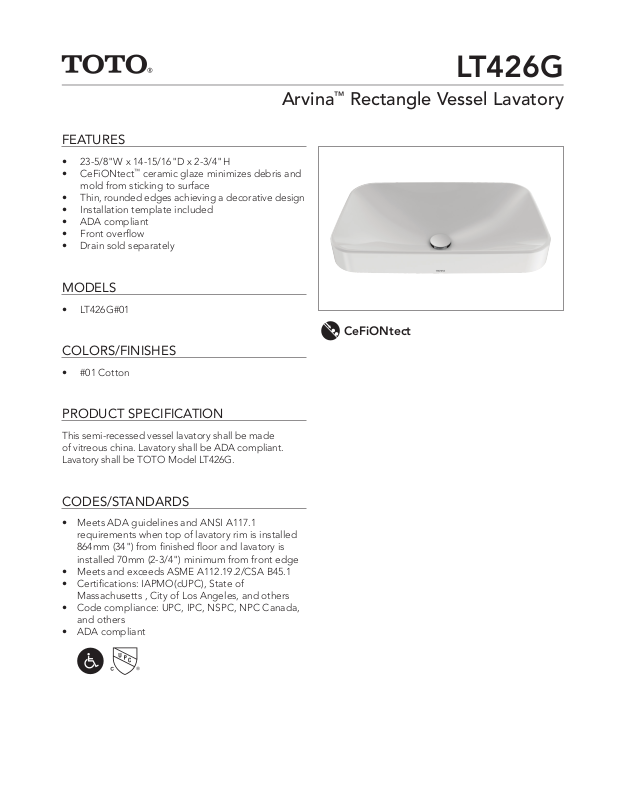

Arvina™ Rectangle Vessel Lavatory
FEATURES
• 23-5/8"W x 14-15/16"D x 2-3/4"H
• CeFiONtect™ ceramic glaze minimizes debris and
mold from sticking to surface
• Thin, rounded edges achieving a decorative design
• Installation template included
• ADA compliant
• Front overflow
• Drain sold separately
MODELS
• LT426G#01
COLORS/FINISHES
LT426G
CeFiONtect
• #01 Cotton
PRODUCT SPECIFICATION
This semi-recessed vessel lavatory shall be made
of vitreous china. Lavatory shall be ADA compliant.
Lavatory shall be TOTO Model LT426G.
CODES/STANDARDS
• Meets ADA guidelines and ANSI A117.1
requirements when top of lavatory rim is installed
864mm (34") from finished floor and lavatory is
installed 70mm (2-3/4") minimum from front edge
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
Page 2
LT426G
4 3/4" [120mm]
SPECIFICATIONS
Arvina Rectangle Vessel Lavatory
Was te
Size
Basin
Basin Depth
Warranty
Material
Shipping Weight
Shipping
Dimensions
DIMENSIONS
1-1/4"
23-5/8"W x 14-15/16"D x 2-3/4"H
22-11/16"W x 14"D
4-3/4"
One Year Limited Warranty
Vitreous China
30 lbs
25-1/4" x 19-5/8" x 7-3/4"
23 5/8" [600mm]
14" [356mm]
BASIN DEPTH
21" [533mm]
22 11/16" [576mm]
BASIN WIDTH
3 1/8" [80mm]
1
WASTE
8" [203mm]
*
* Suggested Dimensions
3/8" * SUPPLY
1
" *
4
14 15/16" [380mm]
2 3/4" [70mm]
18" [457mm]
34" [864mm]
*
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
2 3/4" [70mm]
27" [686mm]
ADA COMPLIANCE
24" [610mm]
13 3/4" [349mm]
1" [25mm]
8" [203mm]
34" [864mm]
MAX
21" [533mm]
11" [279mm]
9" [228mm]
#SS-01251 v.01
