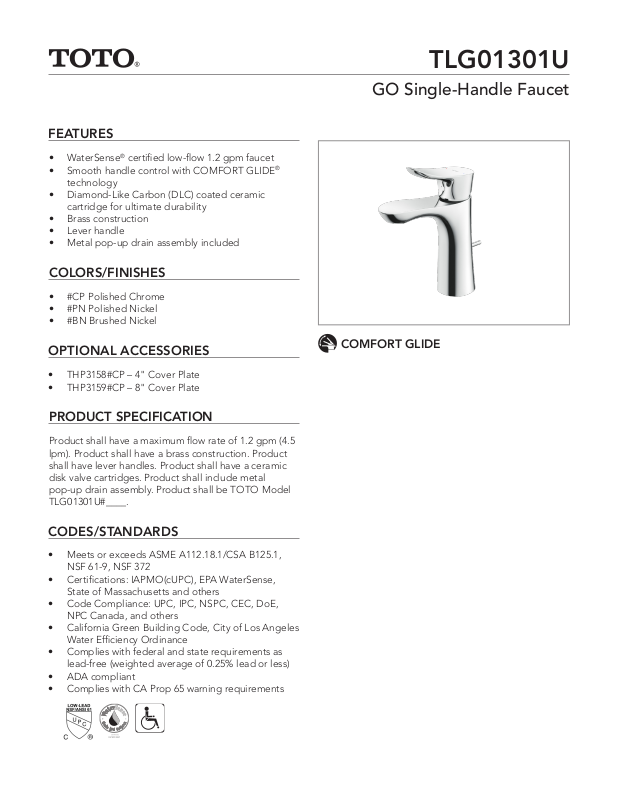

Page 1
FEATURES
• WaterSense® certified low-flow 1.2 gpm faucet
• Smooth handle control with COMFORT GLIDE®
technology
• Diamond-Like Carbon (DLC) coated ceramic
cartridge for ultimate durability
• Brass construction
• Lever handle
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
• #PN Polished Nickel
• #BN Brushed Nickel
TLG01301U
GO Single-Handle Faucet
OPTIONAL ACCESSORIES
• THP3158#CP – 4" Cover Plate
• THP3159#CP – 8" Cover Plate
PRODUCT SPECIFICATION
Product shall have a maximum flow rate of 1.2 gpm (4.5
lpm). Product shall have a brass construction. Product
shall have lever handles. Product shall have a ceramic
disk valve cartridges. Product shall include metal
pop-up drain assembly. Product shall be TOTO Model
TLG01301U#____.
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifications: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, CEC, DoE,
NPC Canada, and others
• California Green Building Code, City of Los Angeles
Water Efficiency Ordinance
• Complies with federal and state requirements as
lead-free (weighted average of 0.25% lead or less)
• ADA compliant
• Complies with CA Prop 65 warning requirements
COMFORT GLIDE
Page 2
Hot water
Red
Blue
Hot water
Blue
Red
2-3/8”
Hot water
Blue
Red
2-3/8”
(60mm)
Cold water
Mixed
water
Cold water
Mixed
water
Cold water
Mixed
water
open
22°
Hot water
Red
Blue
Hot water
Blue
Red
2-3/8”
(60mm)
open
close
2-3/8”
(60mm)
open
close
Hot water
Blue
Red
2-3/8”
(60mm)
close
Cold water
Mixed
water
Cold water
Mixed
water
Cold water
Mixed
water
20-9/16”(522mm)
22°
11°
4-9/16”
(116mm)
4-1/16”
(104mm)
7” (178mm)
Deck thickness
Maximum
2-1/16”(53mm)
Ø2-3/8”
(Ø60mm)
7-15/16” (202mm)
Ø1-1/4”
(Ø31.75mm)
Maximum 11-1/4”
(285mm)
3/8” Comp
22°
9-7/16” (239mm)
6-15/16” (176mm)
11°
4-7/8”
(124mm)
Deck thickness
Maximum
2-1/16”(53mm)
Ø2-3/8”
(Ø60mm)
7-15/16” (202mm)
3/8” Comp
Ø1-1/4”
(Ø31.75mm)
Maximum 11-1/4”
(285mm)
23-11/16”(602mm)
open
22°
14°
11-3/8” (289mm)
9” (228mm)
5-11/16”
(145mm)
Deck thickness
Maximum
2-1/16”(53mm)
Ø2-3/8”
(Ø60mm)
3/8” Comp
Maximum 11-1/4”
(285mm)
Ø1-1/4”
(Ø31.75mm)
9-5/8” (245mm)
21-7/8”(555mm)
Red
Blue
Hot water
Blue
Red
2-3/8”
(60mm)
open
2-3/8”
(60mm)
open
close
Hot water
Blue
Red
2-3/8”
(60mm)
close
Cold water
Mixed
water
Cold water
Mixed
water
20-9/16”(522mm)
7” (178mm)
Deck thickness
Maximum
2-1/16”(53mm)
Maximum 11-1/4”
(285mm)
3/8” Comp
Mounting hole
1-5/16”~1-7/16”
(33-37mm)
Mounting hole
1-5/16”~1-7/16”
(33-37mm)
Mounting hole
1-5/16”~1-7/16”
(33-37mm)
22°
9-7/16” (239mm)
6-15/16” (176mm)
11°
4-7/8”
(124mm)
Deck thickness
Maximum
2-1/16”(53mm)
Ø2-3/8”
(Ø60mm)
7-15/16” (202mm)
3/8” Comp
Ø1-1/4”
(Ø31.75mm)
Maximum 11-1/4”
(285mm)
23-11/16”(602mm)
open
22°
14°
11-3/8” (289mm)
9” (228mm)
5-11/16”
(145mm)
Deck thickness
Maximum
2-1/16”(53mm)
Ø2-3/8”
(Ø60mm)
3/8” Comp
Maximum 11-1/4”
(285mm)
Ø1-1/4”
(Ø31.75mm)
9-5/8” (245mm)
21-7/8”(555mm)
TLG01301U
SPECIFICATIONS
Material
Maximum Flow Rate
Warranty
Brass
1.2 gpm (4.5 lpm)
Lifetime Limited Warranty (Residential Use)
One Year (Commercial Use)
GO Single-Handle Faucet
Pressure (kPa)
Pressure (psi)
0 100 200 300 400 500
1.4
1.2
1
0.8
0.6
0.4
Flow rate (gpm)
0.2
0
0 10 20 30 40 50 60 70 80
5.3
4.5
3.8
3.0
2.3
1.5
0.8
0.0
Flow Rate (lpm)
DIMENSIONS
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specications are subject to change without notice
# SS-01475 v.01
