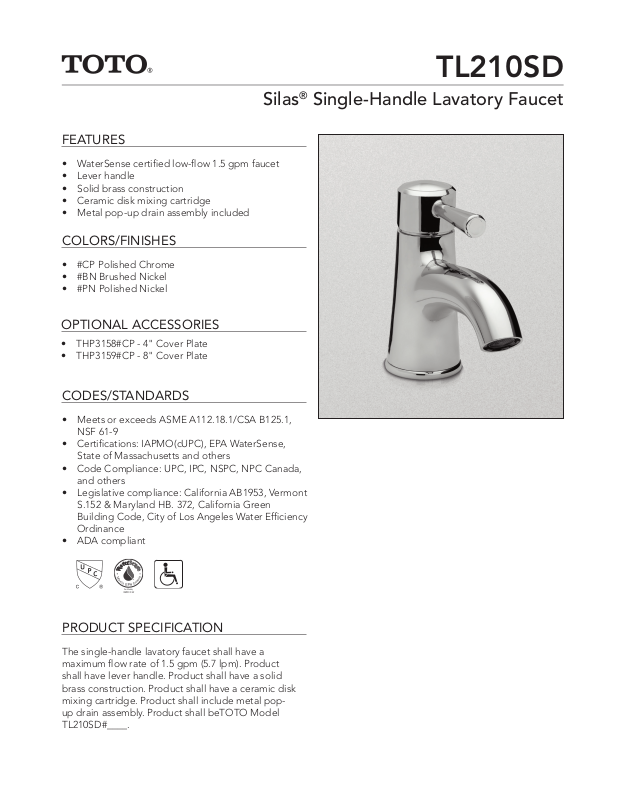

Silas® Single-Handle Lavatory Faucet
FEATURES
• WaterSense certified low-flow 1.5 gpm faucet
• Lever handle
• Solid brass construction
• Ceramic disk mixing cartridge
• Metal pop-up drain assembly included
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
OPTIONAL ACCESSORIES
• THP3158#CP - 4" Cover Plate
• THP3159#CP - 8" Cover Plate
TL210SD
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9
• Certifications: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative compliance: California AB1953, Vermont
S.152 & Maryland HB. 372, California Green
Building Code, City of Los Angeles Water Efficiency
Ordinance
• ADA compliant
Certified by
PRODUCT SPECIFICATION
The single-handle lavatory faucet shall have a
maximum flow rate of 1.5 gpm (5.7 lpm). Product
shall have lever handle. Product shall have a solid
brass construction. Product shall have a ceramic disk
mixing cartridge. Product shall include metal popup drain assembly. Product shall beTOTO Model
TL210SD#____.
Page 2
TL210SD
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Dimensions 15"L x 7-7/8"W x 3"H
• Shipping Weight 5.0 lbs.
• Maximum Flow Rate 1.5 gpm (5.7 lpm)
Silas® Single-Handle Lavatory Faucet
0 100 200 300 400 500
2.5
2.0
1.5
1.0
Flow rate (gpm)
0.5
Pressure (kPa)
9.5
7.6
Flow rate (lpm)
5.7
3.8
1.9
2" [51mm] Max.
Deck Thickness
Hot
2-1/4"
57mm
1-5/16"-1-7/16"
[33-37mm]
Mounting Hole
0.0
0 20 40 60 80
Cold
50
50
5-9/16"
Hose Length
21-7/16"
141mm
544mm
2-7/16"
62mm
Close
Open
39
5-11/16"
25
7-13/16"
144mm
199mm
Pressure (psi)
1-3/4"
44mm
0.0
2-1/8"
54mm
1-5/16"
3/8" Comp.
34mm
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
1-1/4"
32mm
#SS-00805, v.07
