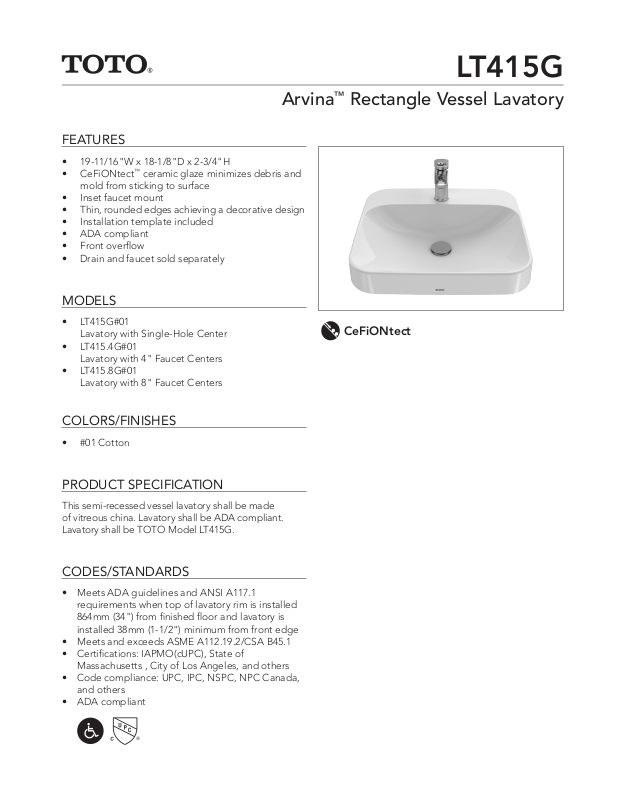

Arvina™ Rectangle Vessel Lavatory
FEATURES
• 19-11/16"W x 18-1/8"D x 2-3/4"H
• CeFiONtect™ ceramic glaze minimizes debris and
mold from sticking to surface
• Inset faucet mount
• Thin, rounded edges achieving a decorative design
• Installation template included
• ADA compliant
• Front overflow
• Drain and faucet sold separately
MODELS
LT415G
• LT415G#01
Lavatory with Single-Hole Center
• LT415.4G#01
Lavatory with 4" Faucet Centers
• LT415.8G#01
Lavatory with 8" Faucet Centers
COLORS/FINISHES
• #01 Cotton
PRODUCT SPECIFICATION
This semi-recessed vessel lavatory shall be made
of vitreous china. Lavatory shall be ADA compliant.
Lavatory shall be TOTO Model LT415G.
CODES/STANDARDS
• Meets ADA guidelines and ANSI A117.1
requirements when top of lavatory rim is installed
864mm (34") from finished floor and lavatory is
installed 38mm (1-1/2") minimum from front edge
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
CeFiONtect
Page 2
LT415G
BASIN WIDTH
ADA COMPLIANCE
SPECIFICATIONS
Arvina Rectangle Vessel Lavatory
Was te
Size
Basin
Basin Depth
Warranty
Material
Shipping Weight
Shipping
Dimensions
DIMENSIONS
19 11/16" [500mm]
1-1/4"
19-11/16"W x 18-1/8"D x 2-3/4"H
18-3/4"W x 13-1/8"D
4-3/4"
One Year Limited Warranty
Vitreous China
32 lbs
25-1/4" x 19-5/8" x 7-3/4"
18 1/8" [460mm]
13 1/8" [333mm]
BASIN DEPTH
18 3/4" [476mm]
4 3/4" [120mm]
3 1/8" [80mm]
8" [203mm]
*
21" [533mm]
* Suggested Dimensions
2 3/4" [70mm]
1
1
" *
4
WASTE
3/8" * SUPPLY
18" [457mm]
34" [864mm]
*
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
1 1/2" [38mm]
27" [686mm]
24" [610mm]
8" [203mm]
11" [279mm]
12 1/16" [306mm]
9" [228mm]
1" [25mm]
21" [533mm]
34" [864mm]
MAX
#SS-01248 v.01
