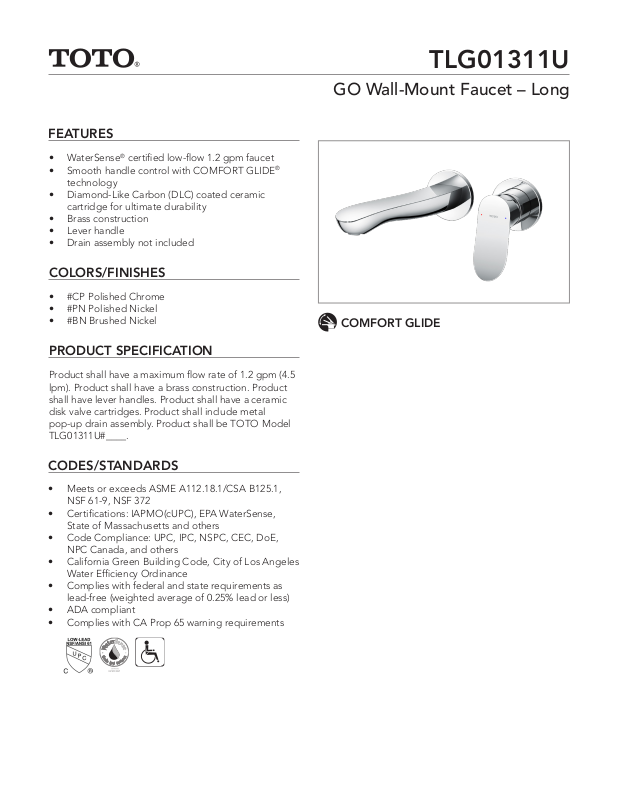

Page 1
FEATURES
• WaterSense® certified low-flow 1.2 gpm faucet
• Smooth handle control with COMFORT GLIDE®
technology
• Diamond-Like Carbon (DLC) coated ceramic
cartridge for ultimate durability
• Brass construction
• Lever handle
• Drain assembly not included
COLORS/FINISHES
• #CP Polished Chrome
• #PN Polished Nickel
• #BN Brushed Nickel
PRODUCT SPECIFICATION
TLG01311U
GO Wall-Mount Faucet – Long
COMFORT GLIDE
Product shall have a maximum flow rate of 1.2 gpm (4.5
lpm). Product shall have a brass construction. Product
shall have lever handles. Product shall have a ceramic
disk valve cartridges. Product shall include metal
pop-up drain assembly. Product shall be TOTO Model
TLG01311U#____.
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1,
NSF 61-9, NSF 372
• Certifications: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, CEC, DoE,
NPC Canada, and others
• California Green Building Code, City of Los Angeles
Water Efficiency Ordinance
• Complies with federal and state requirements as
lead-free (weighted average of 0.25% lead or less)
• ADA compliant
• Complies with CA Prop 65 warning requirements
Page 2
TLG01311U
5/16” (8mm)
Cold
4-3/4” (120mm)
3-15/16” (100mm)
3” (76mm)
1-3/4” (46mm)
1-13/16”
(45.8mm)
Red
Blue
Hot
MIX 1-13/16”
(45.8mm)
2-1/4”~3-1/4”
(57~83mm)
9-7/16”
(240mm)
3-15/16” (100mm)
Ø2-3/4”
(Ø70mm)
Ø2-3/4”
(Ø70mm)
1/2” NPT
Water supply
0 0 0 0
50 2.25 7.25 0.594387
100 3.15 14.5 0.832142
200 3.55 29 0.937811
300 3.7 43.5 0.977437
400 3.95 58 1.04348
413 4 60 1.056688
500 4.1 72.5 1.083105
550 4.15 80 1.096314
SPECIFICATIONS
GO Wall-Mount Faucet – Long
Material
Maximum Flow Rate
Warranty
DIMENSIONS
3” (76mm)
1-3/4” (46mm)
1-13/16”
(45.8mm)
Brass
1.2 gpm (4.5 lpm)
Lifetime Limited Warranty (Residential Use)
One Year (Commercial Use)
4-3/4” (120mm)
3-15/16” (100mm)
Red
Hot
Blue
Cold
0 100 200 300 400 500
1.4
1.2
1
0.8
0.6
0.4
Flow rate (gpm)
0.2
0
0 10 20 30 40 50 60 70 80
4-1/4”
(106.9mm)
Pressure (kPa)
Pressure (psi)
center
5/16” (8mm)
Ø1-3/4”
(Ø45mm)
1/2” NPT
5/8”
(16.5mm)
5.3
4.5
3.8
3.0
2.3
1.5
0.8
0.0
Flow rate (lpm)
2-1/4”~3-1/4”
(57~83mm)
9-7/16”
(240mm)
Ø2-3/4”
(Ø70mm)
3-15/16” (100mm)
MIX 1-13/16”
(45.8mm)
Ø2-3/4”
(Ø70mm)
Water supply
center
1/2” NPT
5/8”
(16.5mm)
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
5/16” (8mm)
2” (51.5mm)
8-15/16” (227mm)
9-3/4” (248mm)
# SS-01480 v.01
