Page 1

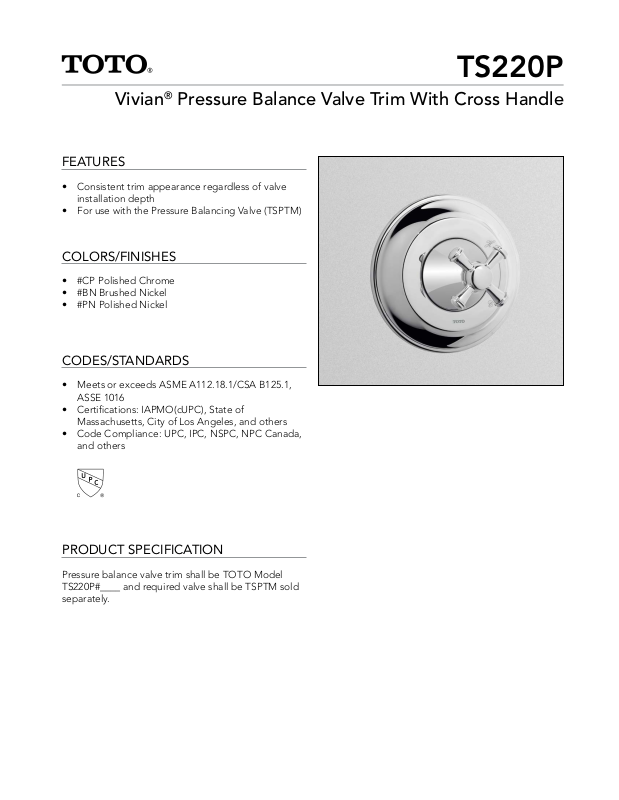

Vivian® Pressure Balance Valve Trim With Cross Handle
FEATURES
• Consistent trim appearance regardless of valve
installation depth
• For use with the Pressure Balancing Valve (TSPTM)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS220P
• Meets or exceeds ASME A112.18.1/CSA B125.1,
ASSE 1016
• Certifications: IAPMO(cUPC), State of
Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
Pressure balance valve trim shall be TOTO Model
TS220P#____ and required valve shall be TSPTM sold
separately.
Page 2
TS220P
Vivian® Pressure Balance Valve Trim With Cross Handle
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 3.2 lbs.
• Shipping Dimensions 8-1/2"L x 7-1/2"W x 5-1/2"H
INSTALLATION NOTES
VALVE REQUIRED:
Pressure balancing valve model TSPTM sold separately.
7-1/16"
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
180mm
Min: 1-11/16" [43mm]
Max: 2-11/16" [68mm]
These dimensions and specifications are subject to change without notice
4-1/8"
104mm
Valve
C
L
Finished
Wall Surface
#SS-00853, v.04
