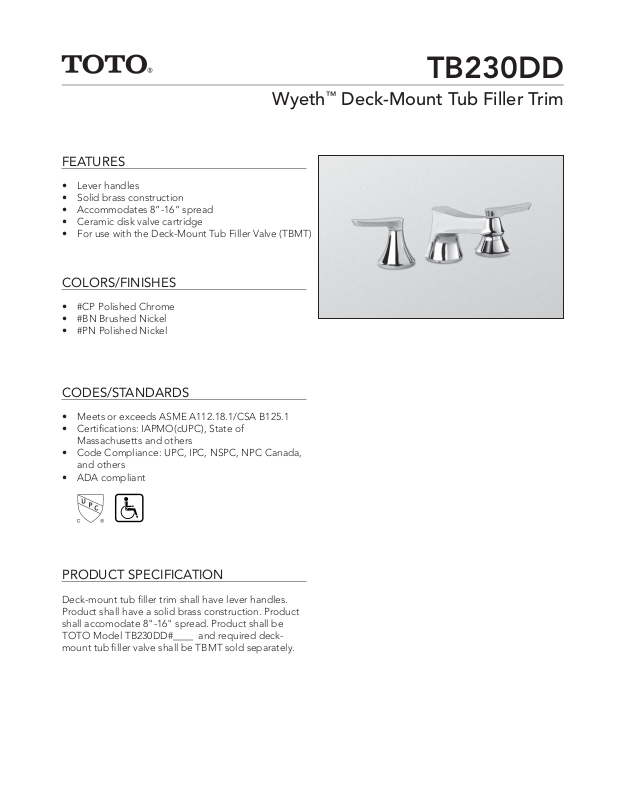

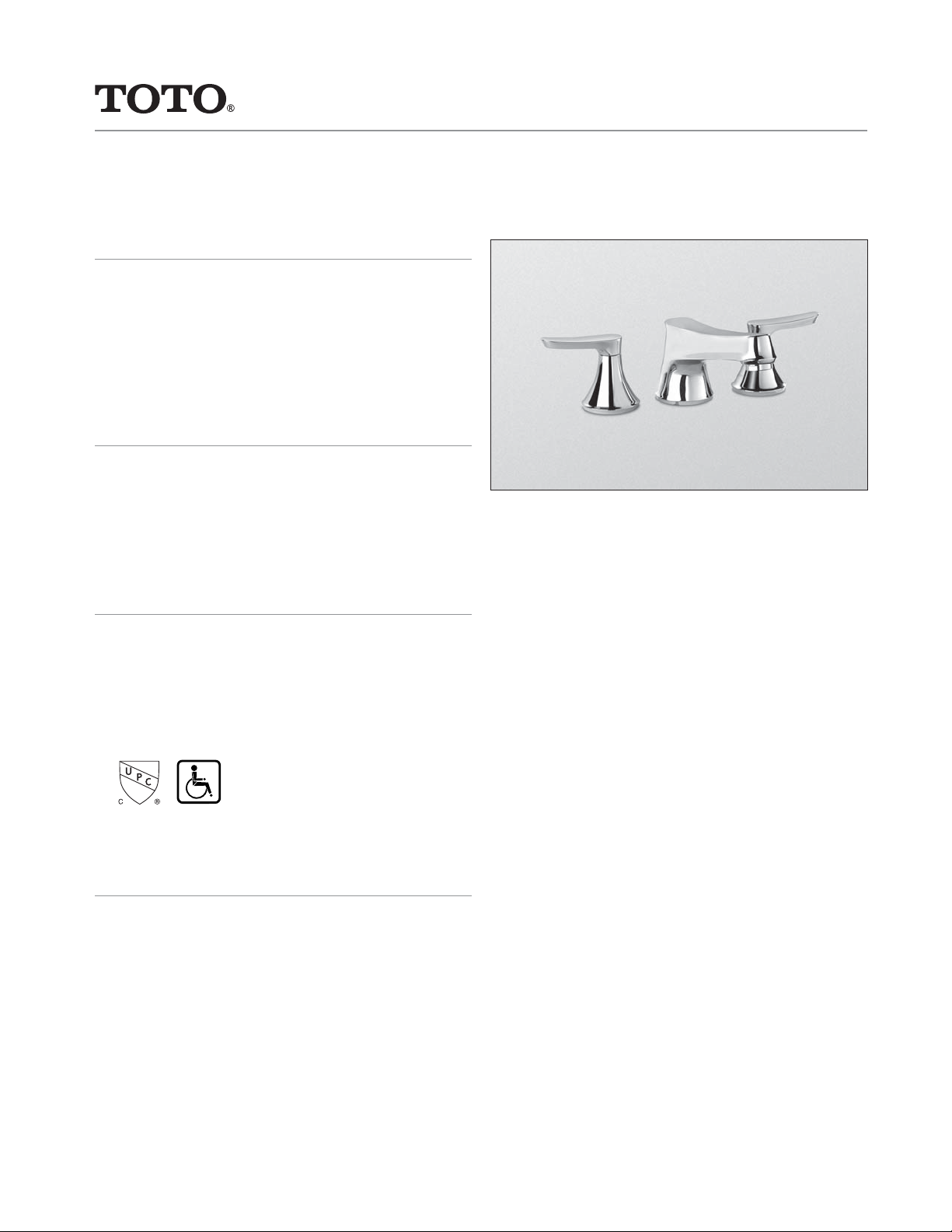

Wyeth™ Deck-Mount Tub Filler Trim
FEATURES
• Lever handles
• Solid brass construction
• Accommodates 8”-16” spread
• Ceramic disk valve cartridge
• For use with the Deck-Mount Tub Filler Valve (TBMT)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TB230DD
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Deck-mount tub fi ller trim shall have lever handles.
Product shall have a solid brass construction. Product
shall accomodate 8"-16" spread. Product shall be
TOTO Model TB230DD#____ and required deckmount tub fi ller valve shall be TBMT sold separately.

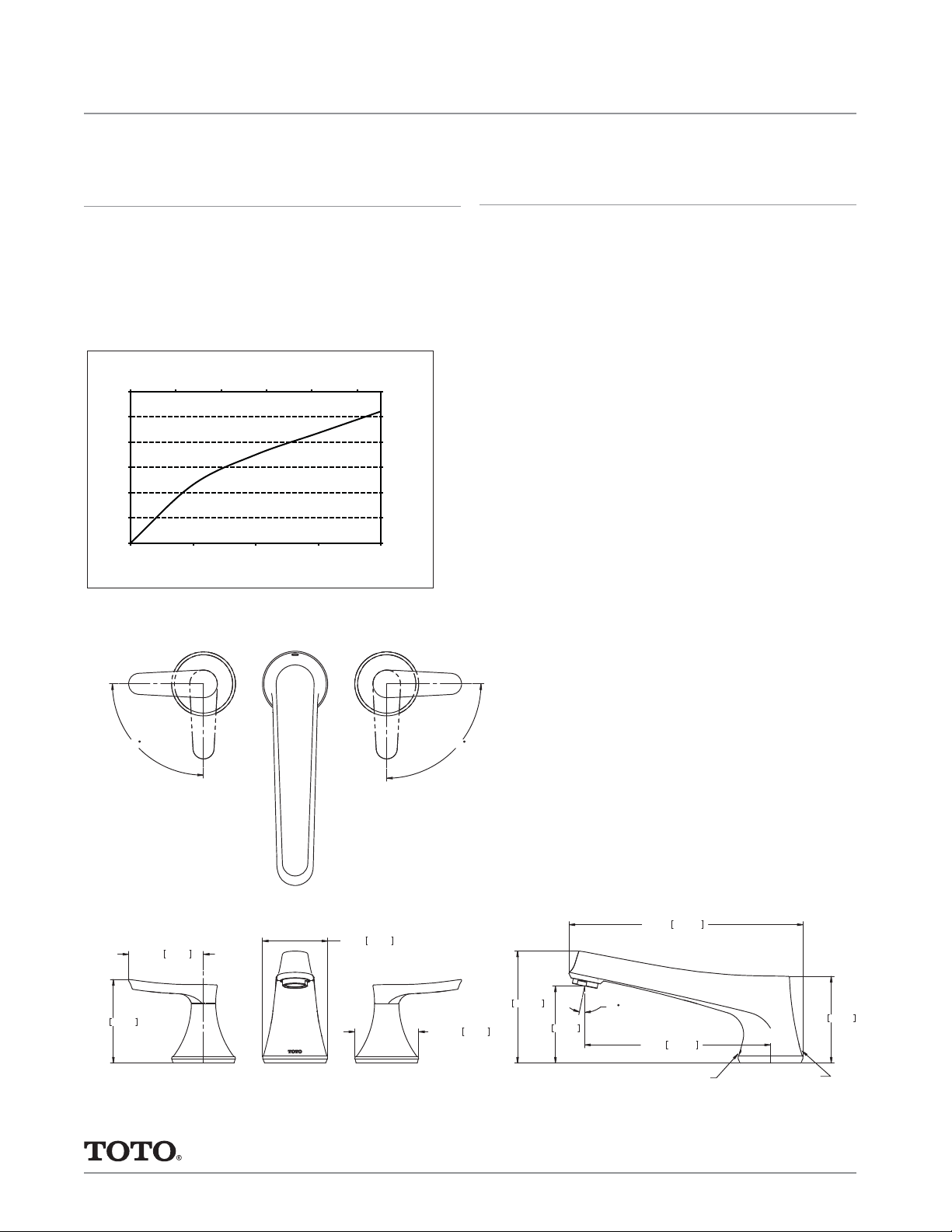

Page 2
TB230DD
Wyeth™ Deck-Mount Tub Filler Trim
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 7.3 lbs.
• Shipping Dimensions 11-1/2"L x 8-3/8"W x 5-7/8"H
0 100 200 300 400 500
12.0
10.0
8.0
6.0
Flow rate (gpm)
4.0
2.0
0.0
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
45.4
37.9
Flow Rate (lpm)
30.3
22.7
15.1
7.6
0.0
INSTALLATION NOTES
VALVE REQUIRED:
Deck-mount tub fi ller valve TBMT sold separately.
CLOSED
HOT
90 90
OPEN
2-7/8"
3-5/8"
93mm
3-1/4"
83mm
OPEN
72mm
COLD
2-13/16"
CLOSED
71mm
4-7/8"
124mm
3-3/8"
85mm
10-1/4"
260mm
12
8-1/8"
206mm
TOTO logo
ASME/CUPC
3-3/4"
96mm
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifi cations are subject to change without notice
#SS-00898, v.01
Printed in U.S.A. | © TOTO USA 09/12 | Printed on recycled paper ♻
