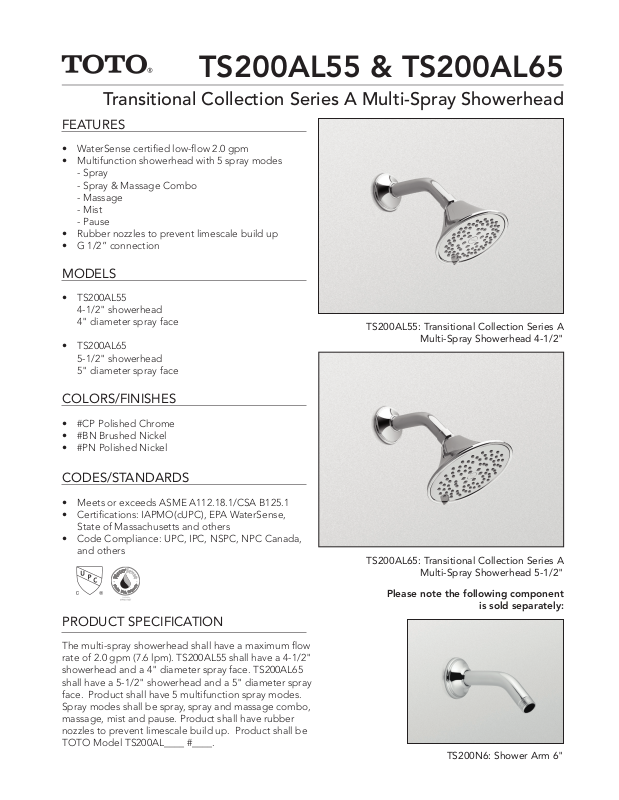

Page 1
TS200AL55 & TS200AL65
Transitional Collection Series A Multi-Spray Showerhead
FEATURES
• WaterSense certified low-flow 2.0 gpm
• Multifunction showerhead with 5 spray modes
- Spray
- Spray & Massage Combo
- Massage
- Mist
- Pause
• Rubber nozzles to prevent limescale build up
• G 1/2” connection
MODELS
• TS200AL55
4-1/2" showerhead
4" diameter spray face
• TS200AL65
5-1/2" showerhead
5" diameter spray face
TS200AL55: Transitional Collection Series A
Multi-Spray Showerhead 4-1/2"
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), EPA WaterSense,
State of Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The multi-spray showerhead shall have a maximum flow
rate of 2.0 gpm (7.6 lpm). TS200AL55 shall have a 4-1/2"
showerhead and a 4" diameter spray face. TS200AL65
shall have a 5-1/2" showerhead and a 5" diameter spray
face. Product shall have 5 multifunction spray modes.
Spray modes shall be spray, spray and massage combo,
massage, mist and pause. Product shall have rubber
nozzles to prevent limescale build up. Product shall be
TOTO Model TS200AL____ #____.
TS200AL65: Transitional Collection Series A
Multi-Spray Showerhead 5-1/2"
Please note the following component
is sold separately:
TS200N6: Shower Arm 6"
Page 2
TS200AL55 & TS200AL65
Transitional Collection Series A Multi-Spray Showerhead
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass / Plastics
• Shipping Weight TS200AL55: 0.9 lbs.
TS200AL65: 1.0 lbs.
• Shipping Dimensions TS200AL55 & TS200AL65:
3-1/2"L x 5-3/4"W x 6-3/4"H
• Maximum Flow Rate 2.0 gpm (7.6 lpm)
0 100 200 300 400 500
3.0
2.5
2.0
1.5
Flow rate (gpm)
1.0
0.5
0.0
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
11.4
9.5
Flow rate (lpm)
7.6
5.7
3.8
1.9
0.0
INSTALLATION NOTES
OPTIONAL SHOWERHEAD COMPONENT:
TS200N6: Shower Arm 6" sold separately.
TS200AL55:
4-7/16"
TS200AL65: 5-3/8" (
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
(112mm)
G 1/2"
136mm)
3-3/8” (85mm)
These dimensions and specifications are subject to change without notice
Printed in U.S.A. | © TOTO USA 09/11 | Printed on recycled paper ♻
#SS-00809, v.04
