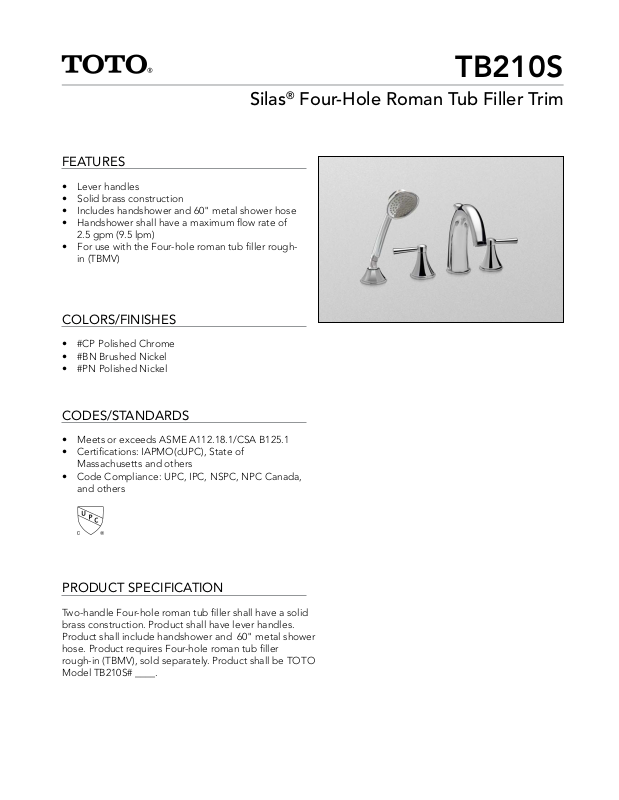

Page 1
Silas® Four-Hole Roman Tub Filler Trim
FEATURES
• Lever handles
• Solid brass construction
• Includes handshower and 60" metal shower hose
• Handshower shall have a maximum flow rate of
2.5 gpm (9.5 lpm)
• For use with the Four-hole roman tub filler roughin (TBMV)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TB210S
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
Two-handle Four-hole roman tub filler shall have a solid
brass construction. Product shall have lever handles.
Product shall include handshower and 60" metal shower
hose. Product requires Four-hole roman tub filler
rough-in (TBMV), sold separately. Product shall be TOTO
Model TB210S# ____.
Page 2
TB210S
Silas® Four-Hole Roman Tub Filler Trim
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 9.0 lbs.
• Shipping Dimensions 11-1/2"L x 8-3/8"W x 5-7/8"H
0 100 200 300 400 500
12.0
10.0
8.0
6.0
4.0
Flow rate (gpm)
2.0
0.0
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
Hand Shower Tub Spout
45.4
37.9
Flow Rate (lpm)
30.3
22.7
15.1
7.6
0.0
INSTALLATION NOTES
VALVE REQUIRED:
Four-hole roman tub filler rough-in model TBMV sold
separately.
CLOSED
3-9/16"
90mm
2-11/16"
HOT
90
OPEN OPEN
3-3/16"
81mm
68mm
2-11/16"
68mm
COLD
CLOSED
90
9-1/8"
232mm
8-3/4"
223mm
6"
152mm
3-3/8"
86mm
4-7/8"
124mm
33
24
7-3/16"
183mm
8-1/16"
204mm
8-3/4"
223mm
2-11/16"
68mm
Hose Length
60" [1520mm]
7-3/16"
183mm
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-00803, v.03
