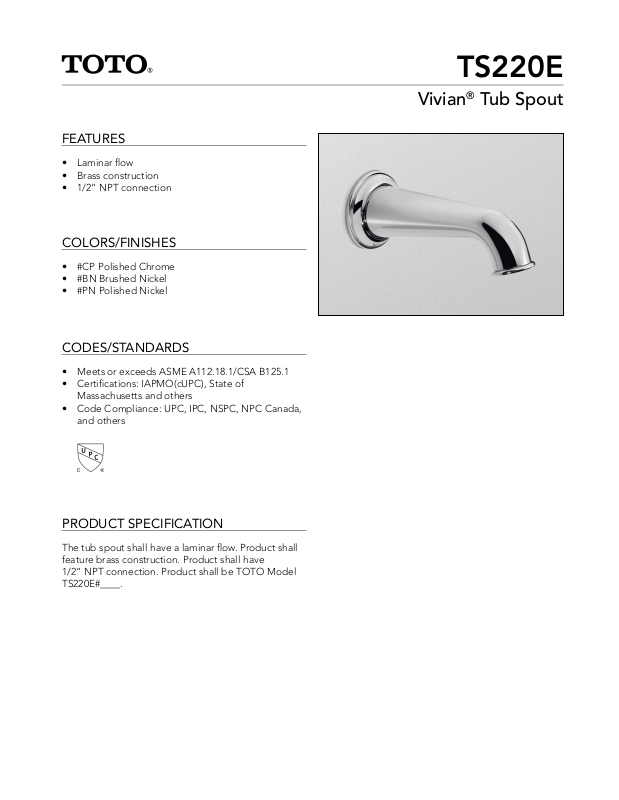

Page 1
FEATURES
• Laminar flow
• Brass construction
• 1/2” NPT connection
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS220E
Vivian® Tub Spout
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The tub spout shall have a laminar flow. Product shall
feature brass construction. Product shall have
1/2” NPT connection. Product shall be TOTO Model
TS220E#____.
Page 2
TS220E
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 2.75 lbs.
• Shipping Dimensions 9-1/4”L x 4”W x 3-1/2”H
Vivian® Tub Spout
3-1/4"
82mm
18deg
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
7-5/8"
194mm
6-7/8"
These dimensions and specifications are subject to change without notice
1/2" NPT
~4-6" [102-152mm]
174mm
Tub Rim
#SS-00851, v.04
