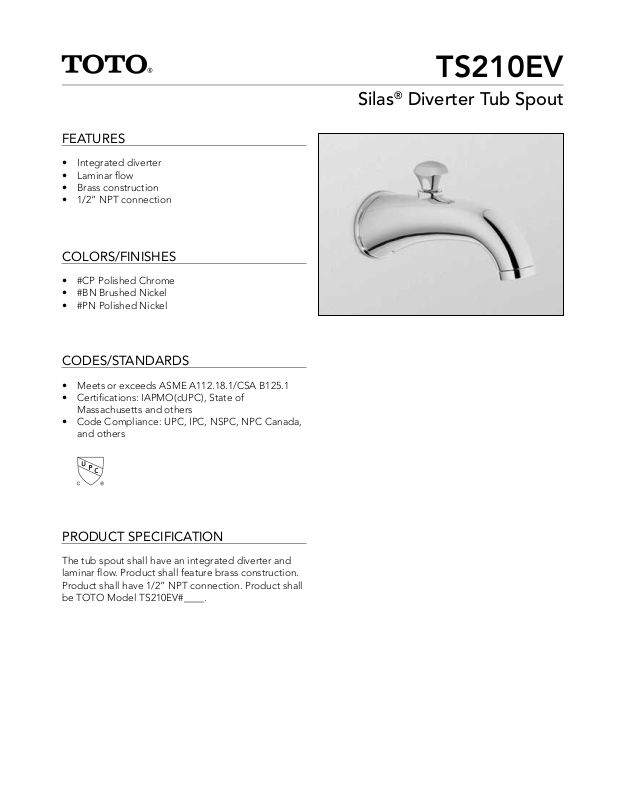

Page 1
FEATURES
• Integrated diverter
• Laminar flow
• Brass construction
• 1/2” NPT connection
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS210EV
Silas® Diverter Tub Spout
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The tub spout shall have an integrated diverter and
laminar flow. Product shall feature brass construction.
Product shall have 1/2” NPT connection. Product shall
be TOTO Model TS210EV#____.
Page 2
TS210EV
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 3.0 lbs.
• Shipping Dimensions 9-1/4”L x 4”W x 3-1/2”H
Silas® Diverter Tub Spout
2-11/16"
4-1/4"
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
68mm
108mm
7-3/4"
17
7-1/8"
These dimensions and specifications are subject to change without notice
196mm
1/2" NPT
~4-6" [102-152mm]
180mm
Tub Rim
#SS-00817, v.02
