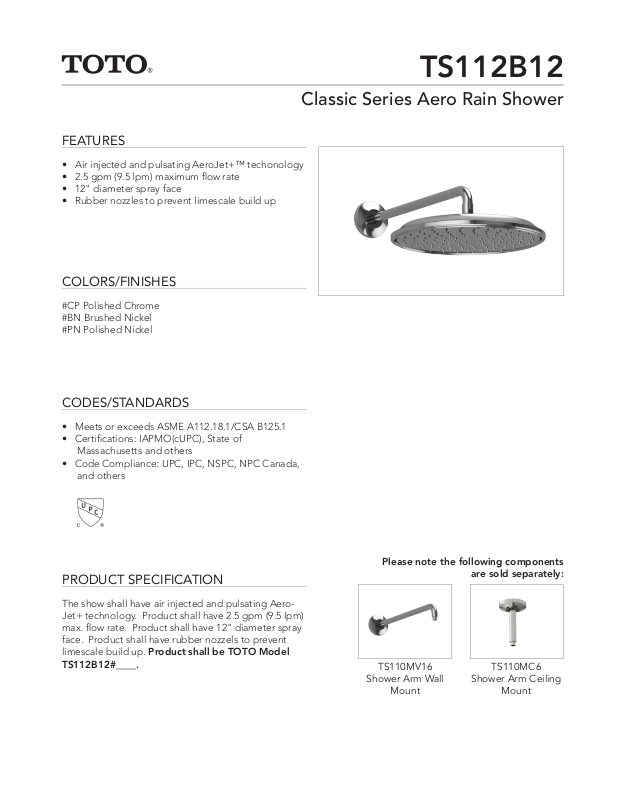

Page 1
FEATURES
• Air injected and pulsating AeroJet+™ techonology
• 2.5 gpm (9.5 lpm) maximum fl ow rate
• 12" diameter spray face
• Rubber nozzles to prevent limescale build up
COLORS/FINISHES
#CP Polished Chrome
#BN Brushed Nickel
#PN Polished Nickel
TS112B12
Classic Series Aero Rain Shower
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
The show shall have air injected and pulsating AeroJet+ technology. Product shall have 2.5 gpm (9.5 lpm)
max. fl ow rate. Product shall have 12" diameter spray
face. Product shall have rubber nozzels to prevent
limescale build up. Product shall be TOTO Model
TS112B12#____.
Please note the following components
are sold separately:
TS110MV16
Shower Arm Wall
Mount
TS110MC6
Shower Arm Ceiling
Mount
Page 2
TS112B12
Classic Series Aero Rain Shower
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 8.2 lbs.
• Shipping Dimensions 13-1/8" x 14-1/8" x 4-1/4"
• Maximum Flow Rate 2.5 gpm (9.5 lpm)
0 100 200 300 400 500
3.0
2.5
2.0
1.5
Flow rate (gpm)
1.0
0.5
0.0
0 20 40 60 80
Pressure (kPa)
Pressure (psi)
11.4
9.5
7.6
5.7
3.8
1.9
0.0
Flow rate (lpm)
INSTALLATION NOTES
Required Components:
- TS110MV16 (Wall Mount Shower Arm)
- TS110MC6 (Ceiling Mount Shower Arm)
16”(406mm)
4-3/8”(111mm)
12”(300mm)
Shown with
TS110MV16
These dimensions and specifi cations are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
1/2”NPT
1/2”NPT
7-3/4”(195mm)
Shown with
TS110MC6
#SS-01025, v.01
