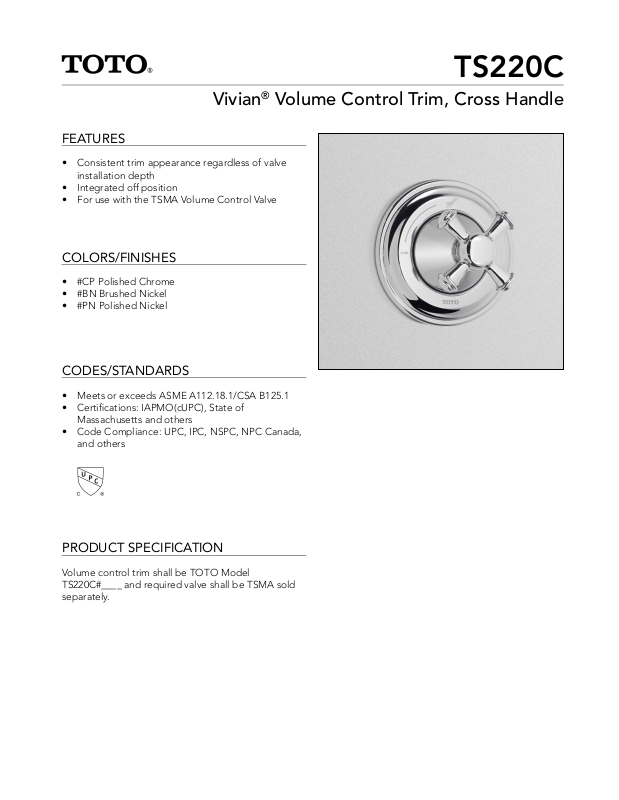

Page 1
Vivian® Volume Control Trim, Cross Handle
FEATURES
• Consistent trim appearance regardless of valve
installation depth
• Integrated off position
• For use with the TSMA Volume Control Valve
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TS220C
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
PRODUCT SPECIFICATION
Volume control trim shall be TOTO Model
TS220C#____ and required valve shall be TSMA sold
separately.
Page 2
TS220C
Vivian® Volume Control Trim, Cross Handle
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 1.6 lbs.
• Shipping Dimensions 7"L x 3-1/2"W x 4"H
INSTALLATION NOTES
VALVE REQUIRED:
Volume control valve model TSMA sold separately.
3-15/16"
100mm
Min: 2-1/2" [65mm]
Max: 3-3/4" [95mm]
2-9/16"
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
66mm
These dimensions and specifications are subject to change without notice
Valve
C
L
Finished
Wall Surface
#SS-00847, v.06
