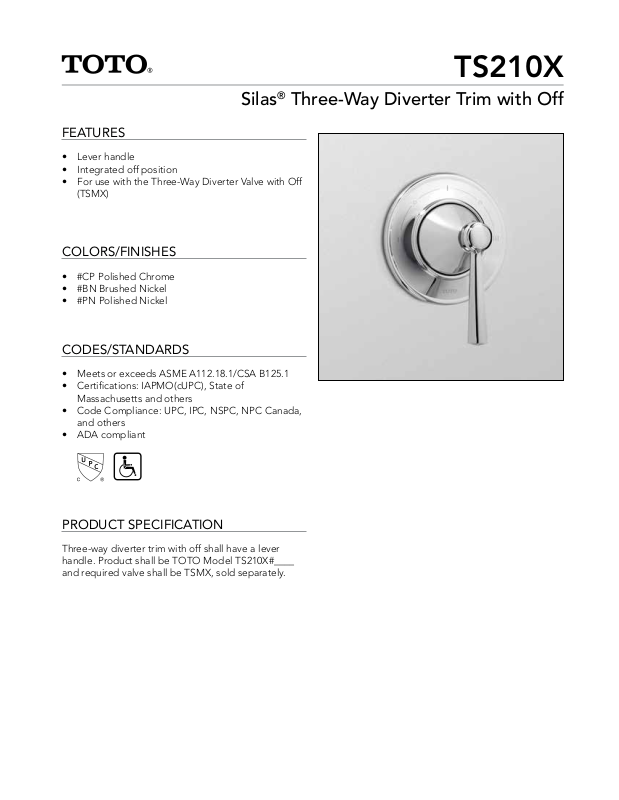

Page 1
Silas® Three-Way Diverter Trim with Off
FEATURES
• Lever handle
• Integrated off position
• For use with the Three-Way Diverter Valve with Off
(TSMX)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS210X
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Three-way diverter trim with off shall have a lever
handle. Product shall be TOTO Model TS210X#____
and required valve shall be TSMX, sold separately.
Page 2
TS210X
Valve
C
L
Max: 3-3/4" [95mm]
Min: 2-1/2" [65mm]
Finished
Silas® Three-Way Diverter Trim with Off
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 1.7 lbs.
• Shipping Dimensions 7"L x 3-1/2"W x 4"H
INSTALLATION NOTES
VALVE REQUIRED:
Three-Way diverter valve with off model TSMX sold
separately.
5-1/16"
3-15/16"
128mm
100mm
2-9/16"
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
65mm
Min: 2-1/2" [65mm]
Max: 3-3/4" [95mm]
Valve
C
L
Finished
Wall Surface
#SS-00919, v.02
