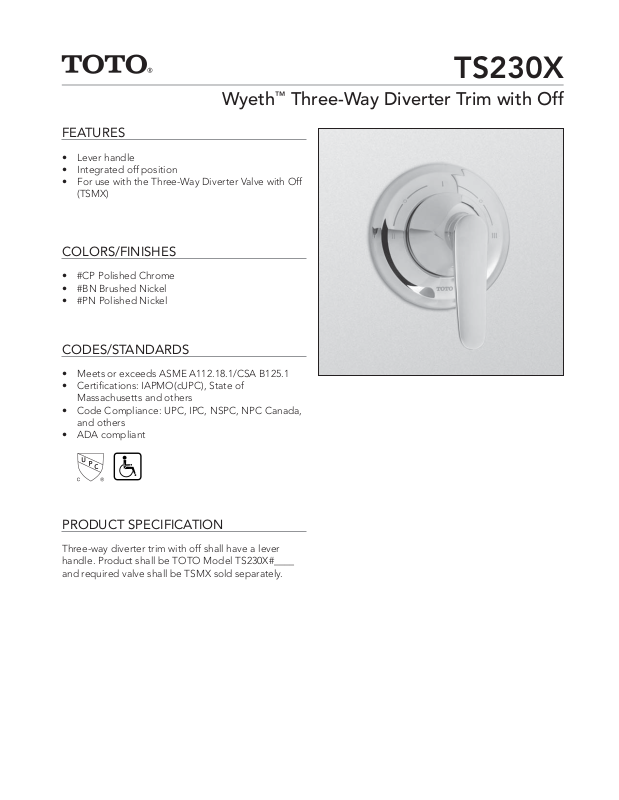

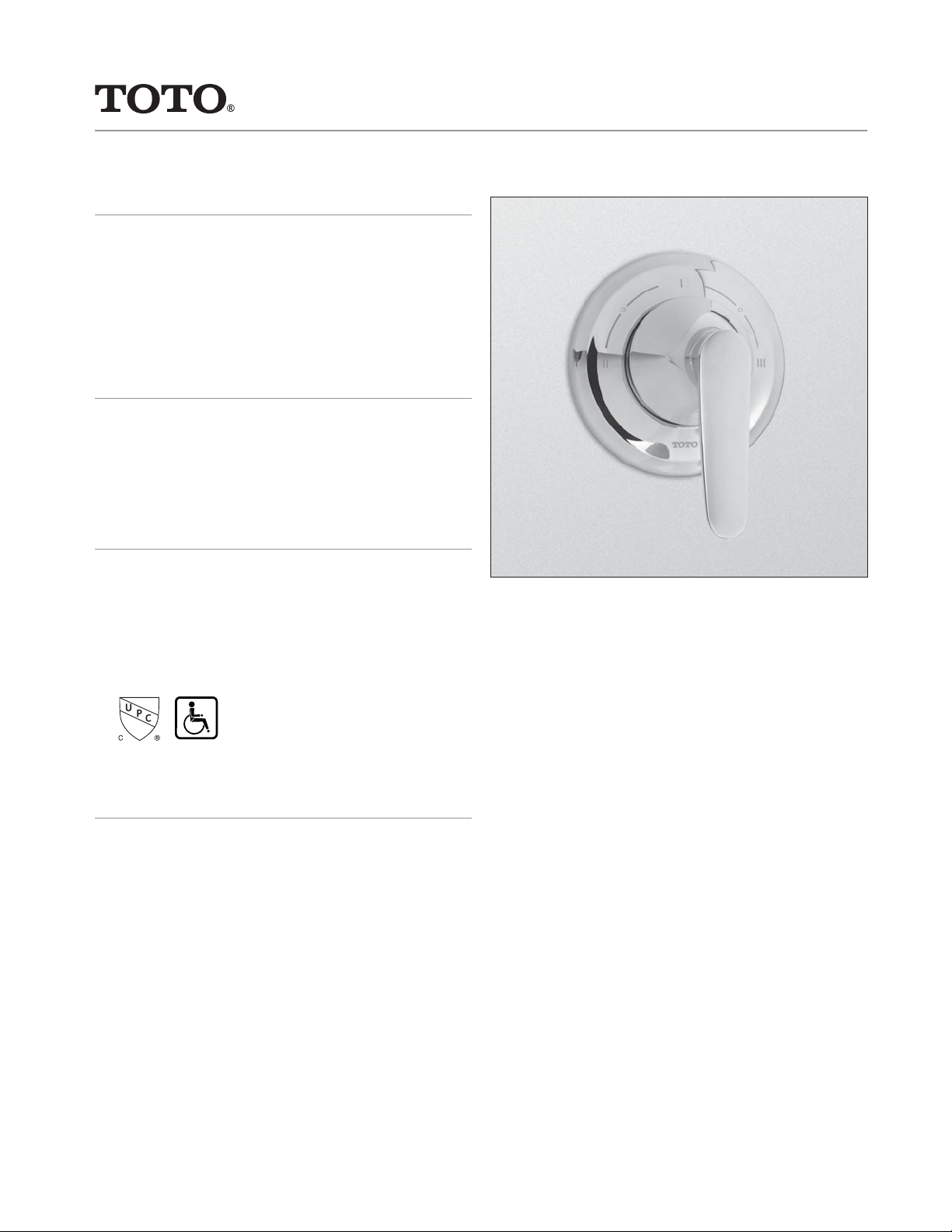

Wyeth™ Three-Way Diverter Trim with Off
FEATURES
• Lever handle
• Integrated off position
• For use with the Three-Way Diverter Valve with Off
(TSMX)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS230X
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Three-way diverter trim with off shall have a lever
handle. Product shall be TOTO Model TS230X#____
and required valve shall be TSMX sold separately.
Page 2
TS230X
Wyeth™ Three-Way Diverter Trim with Off
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 1.7 lbs.
• Shipping Dimensions 7"L x 3-1/2"W x 4"H

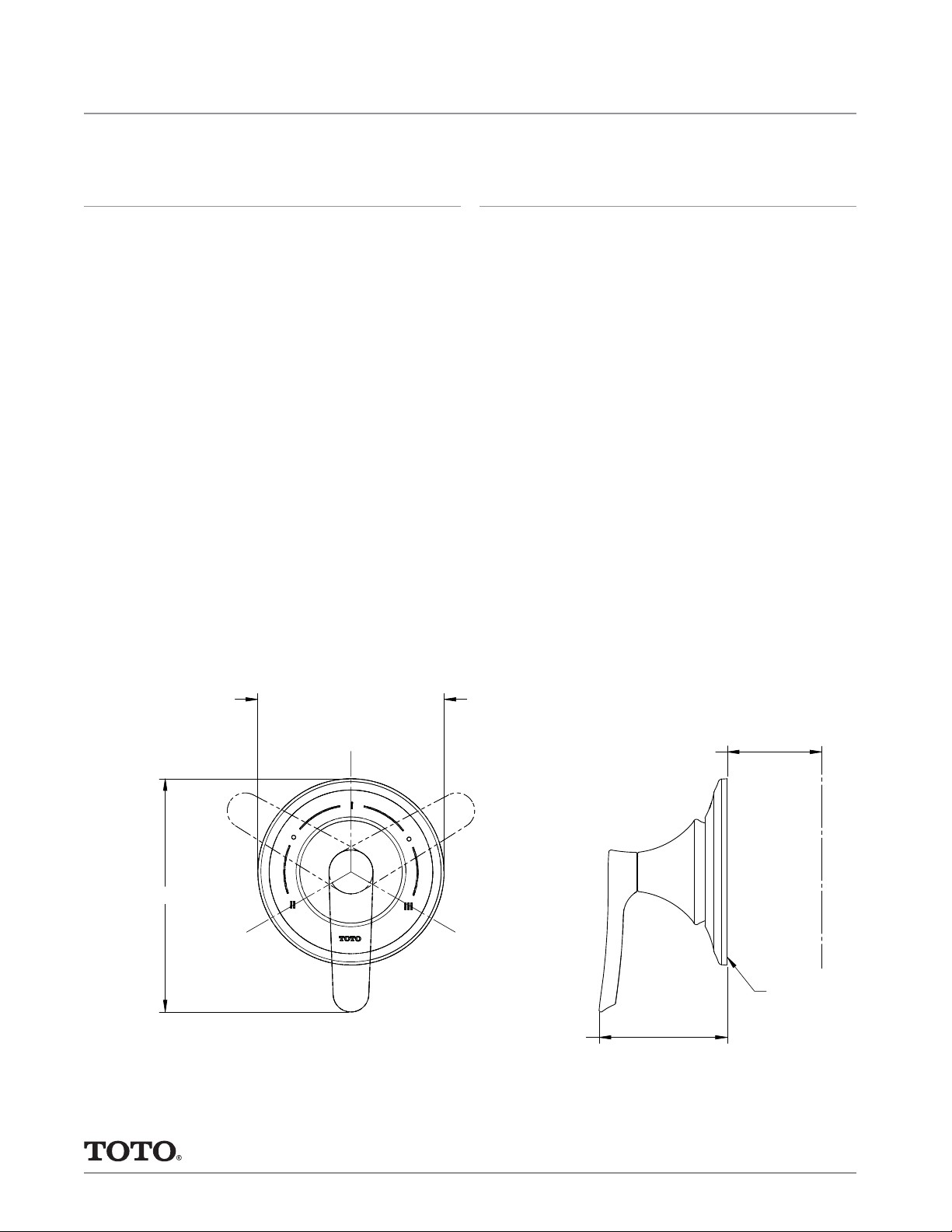

INSTALLATION NOTES
VALVE REQUIRED:
Three-Way diverter valve with off model TSMX sold
separately.
4-15/16"
Outlet 3
Position
(125mm)
Position
O
ø3-15/16"
O
Position
Outlet 1
Position
(100mm)
Outlet 2
Position
O
Position
2-11/16"
(69mm)
Min: 2-1/2" (65mm)
Max: 3-3/4" (95mm)
Valve
C
L
Finished
Wall Surface
