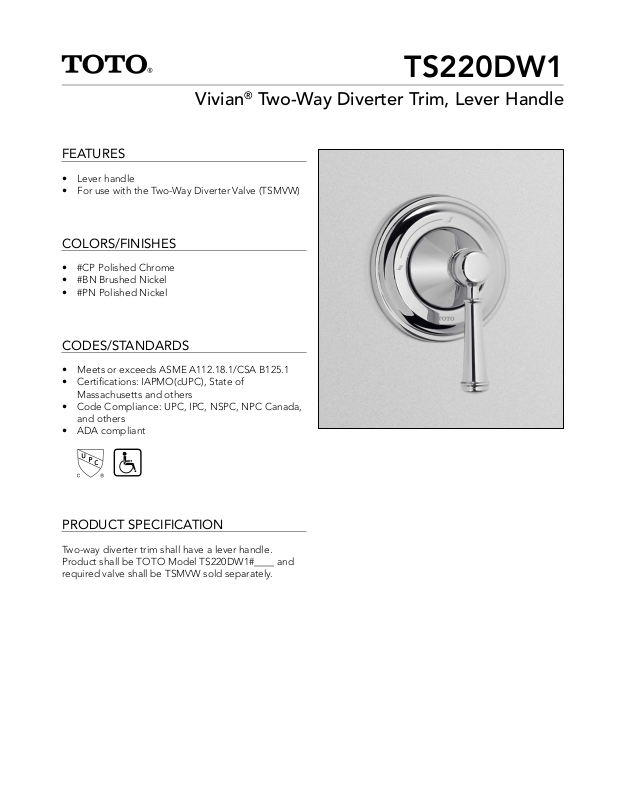

Vivian® Two-Way Diverter Trim, Lever Handle
FEATURES
• Lever handle
• For use with the Two-Way Diverter Valve (TSMVW)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS220DW1
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Two-way diverter trim shall have a lever handle.
Product shall be TOTO Model TS220DW1#____ and
required valve shall be TSMVW sold separately.
Page 2

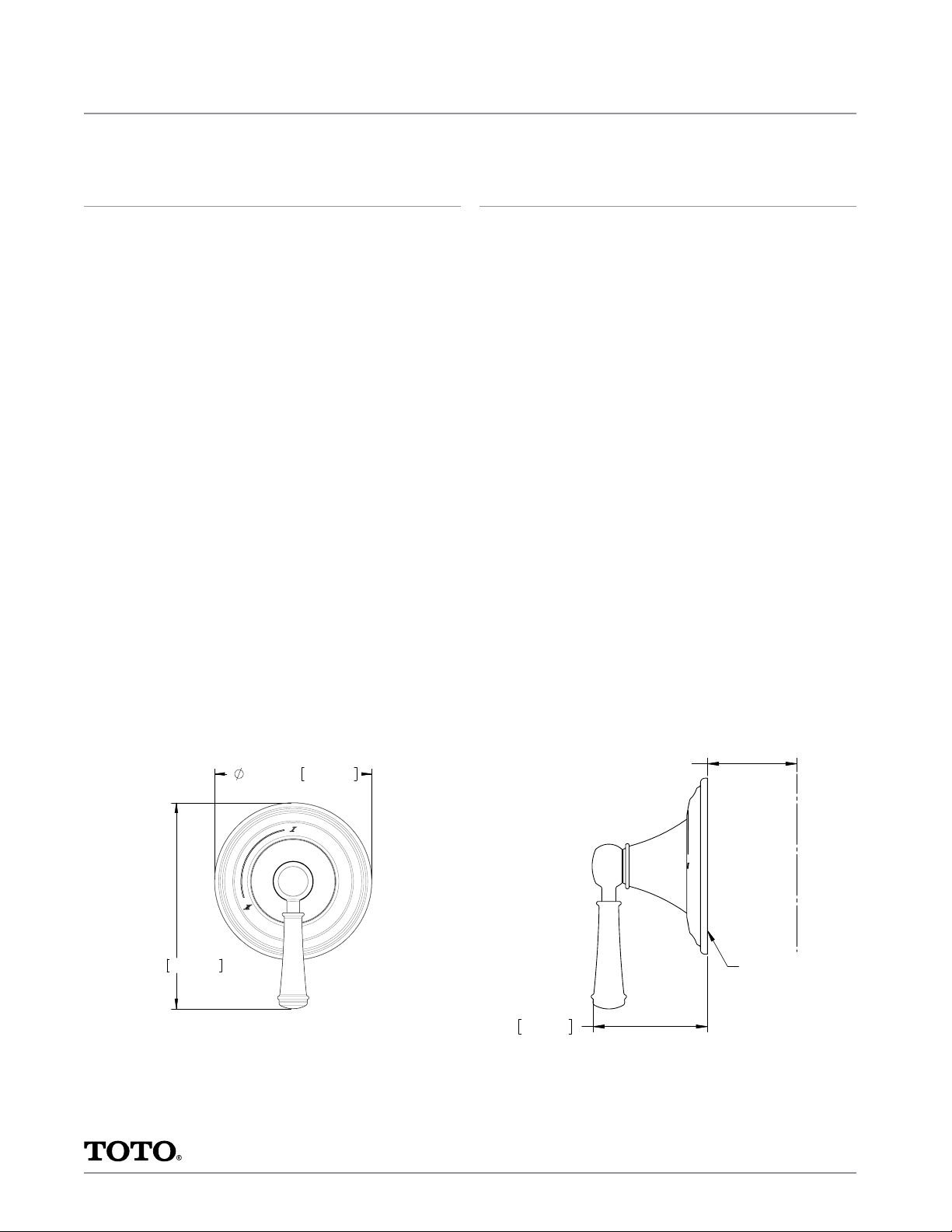

TS220DW1
3-15/16"
100mm
5-3/16"
131mm
2-5/8"
66mm
Max: 3-3/4" [95mm]
Min: 2-1/2" [65mm]
Finished
Wall Surface
Valve
C
L
Vivian® Two-Way Diverter Trim, Lever Handle
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 1.6 lbs.
• Shipping Dimensions 7"L x 3-1/2"W x 4"H
INSTALLATION NOTES
VALVE REQUIRED:
Two-way diverter valve model TSMVW sold separately.
3-15/16"
5-1/8"
131mm
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
100mm
Valve
C
Min: 2-1/2" [65mm]
L
Max: 3-3/4" [95mm]
Finished
Wall Surface
2-9/16"
These dimensions and specifications are subject to change without notice
65mm
#SS-00922, v.02
