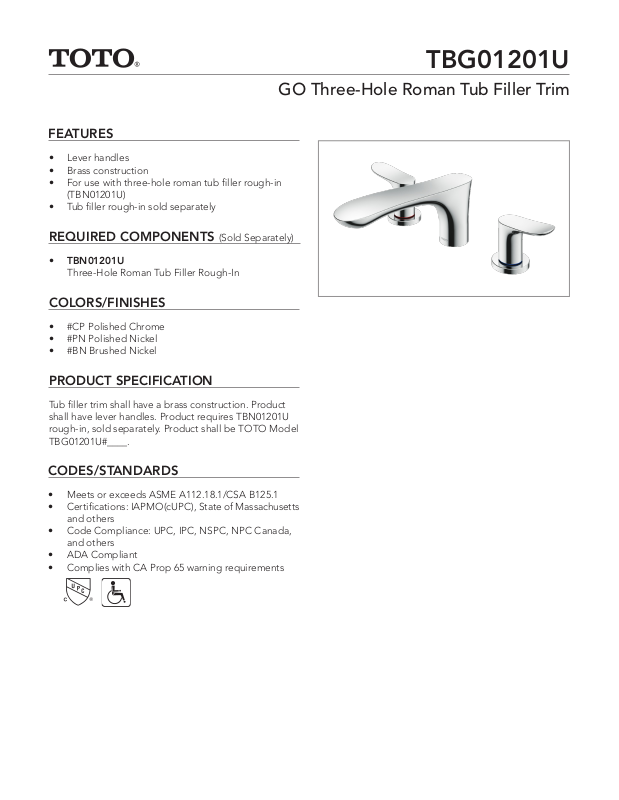

Page 1
GO Three-Hole Roman Tub Filler Trim
FEATURES
• Lever handles
• Brass construction
• For use with three-hole roman tub filler rough-in
(TBN01201U)
• Tub filler rough-in sold separately
REQUIRED COMPONENTS (Sold Separately)
• TBN01201U
Three-Hole Roman Tub Filler Rough-In
COLORS/FINISHES
• #CP Polished Chrome
• #PN Polished Nickel
• #BN Brushed Nickel
TBG01201U
PRODUCT SPECIFICATION
Tub filler trim shall have a brass construction. Product
shall have lever handles. Product requires TBN01201U
rough-in, sold separately. Product shall be TOTO Model
TBG01201U#____.
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of Massachusetts
and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA Compliant
• Complies with CA Prop 65 warning requirements
Page 2
TBG01201U
0 0 0 0
50 14 7.25 3.698409
100 21.9 14.5 5.785368
200 34.4 29 9.087519
300 43.7 43.5 11.54432
400 51.4 58 13.57844
500 59.4 72.5 15.69182
550 62.4 80 16.48434
GO Three-Hole Roman Tub Filler Trim
SPECIFICATIONS
Material
Warranty
0 100 200 300 400 500
18
15
12
9
6
Flow rate (gpm)
3
0
0 10 20 30 40 50 60 70 80
Brass
Lifetime Limited Warranty (Residential Use)
One Year (Commercial Use)
DIMENSIONS
Pressure (kPa)
Pressure (psi)
INSTALLATION NOTES
• Check local codes for requirements on installing
an ASSE 1070/ASME A112.1070/CSA B125.70
compliant device in series with the tub filler
• Three-hole roman tub filler rough-in TBN01201U
sold separately
• Please refer to the TBN01201U spec sheet for more
68
57
Flow rate (lpm)
45
34
23
11
0
required installation details
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
8-11/16”
(Tub ller rough-in sold separately)
These dimensions and specications are subject to change without notice
# SS-01487 v.01
