Page 1

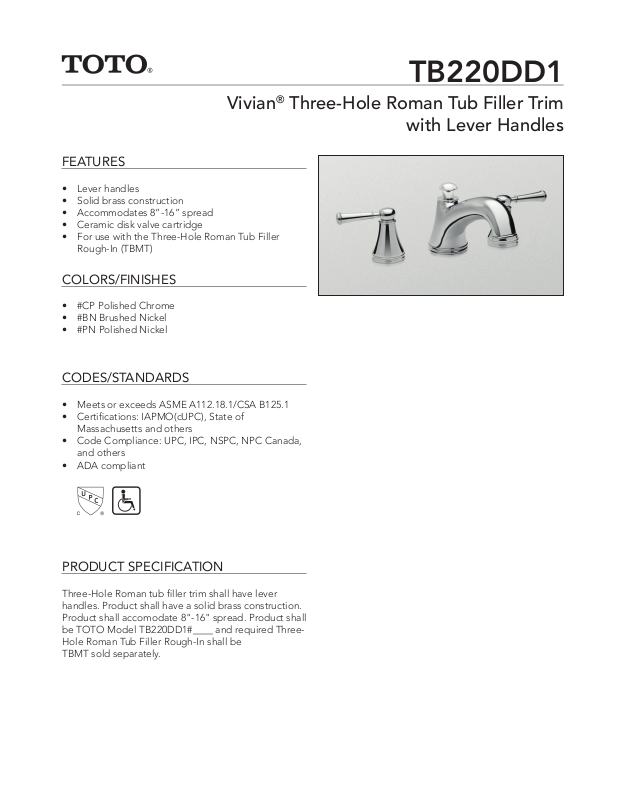

Vivian® Three-Hole Roman Tub Filler Trim
FEATURES
• Lever handles
• Solid brass construction
• Accommodates 8”-16” spread
• Ceramic disk valve cartridge
• For use with the Three-Hole Roman Tub Filler
Rough-In (TBMT)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TB220DD1
with Lever Handles
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certications: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Three-Hole Roman tub ller trim shall have lever
handles. Product shall have a solid brass construction.
Product shall accomodate 8"-16" spread. Product shall
be TOTO Model TB220DD1#____ and required ThreeHole Roman Tub Filler Rough-In shall be
TBMT sold separately.
Page 2
TB220DD1
Vivian® Three-Hole Roman Tub Filler Trim with Lever Handles
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 6.3 lbs.
• Shipping Dimensions 11-1/2"L x 8-3/8"W x 5-7/8"H
0 100 200 300 400 500
12.0
10.0
8.0
6.0
Flow rate (gpm)
4.0
2.0
0.0
0 20 40 60 80
CLOSED
Pressure (kPa)
Pressure (psi)
45.4
37.9
Flow Rate (lpm)
30.3
22.7
15.1
7.6
0.0
INSTALLATION NOTES
VALVE REQUIRED:
Three-Hole Roman Tub Filler Rough-In
TBMT sold separately.
CLOSED
90
3-1/2"
HOT
OPEN OPEN
3-5/8"
92mm
89mm
2-13/16"
72mm
COLD
2-5/16"
90
59mm
3-1/8"
80mm
10"
253mm
22
7-7/8"
200mm
4-3/4"
121mm
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
#SS-00833, v.03
