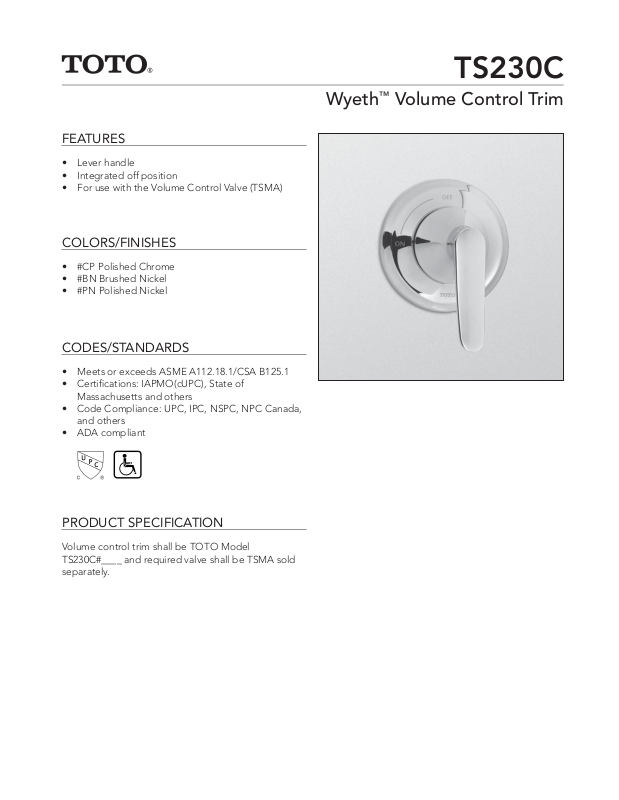

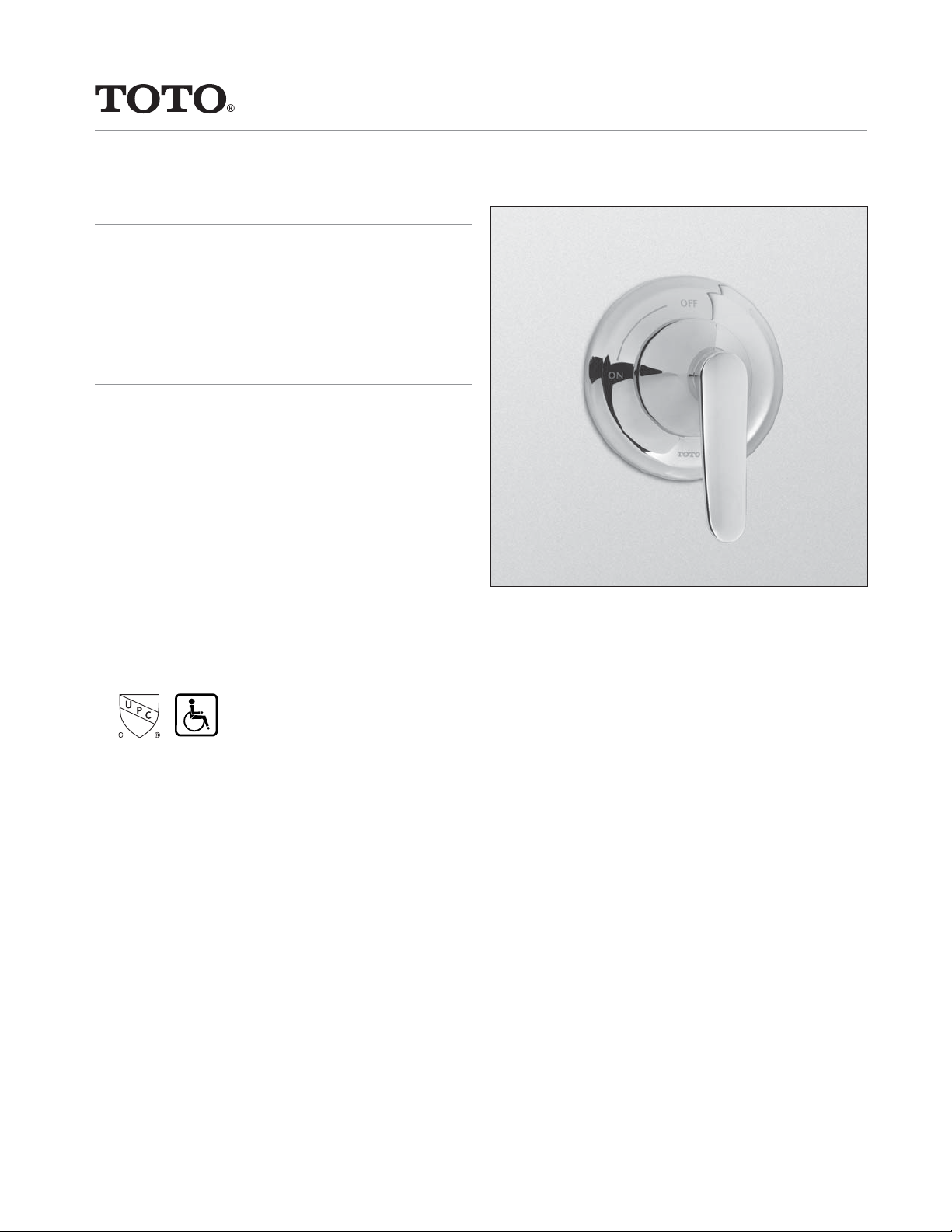

FEATURES
• Lever handle
• Integrated off position
• For use with the Volume Control Valve (TSMA)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS230C
Wyeth™ Volume Control Trim
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Volume control trim shall be TOTO Model
TS230C#____ and required valve shall be TSMA sold
separately.
Page 2
TS230C
Wyeth™ Volume Control Trim
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 1.7 lbs.
• Shipping Dimensions 7"L x 3-1/2"W x 4"H

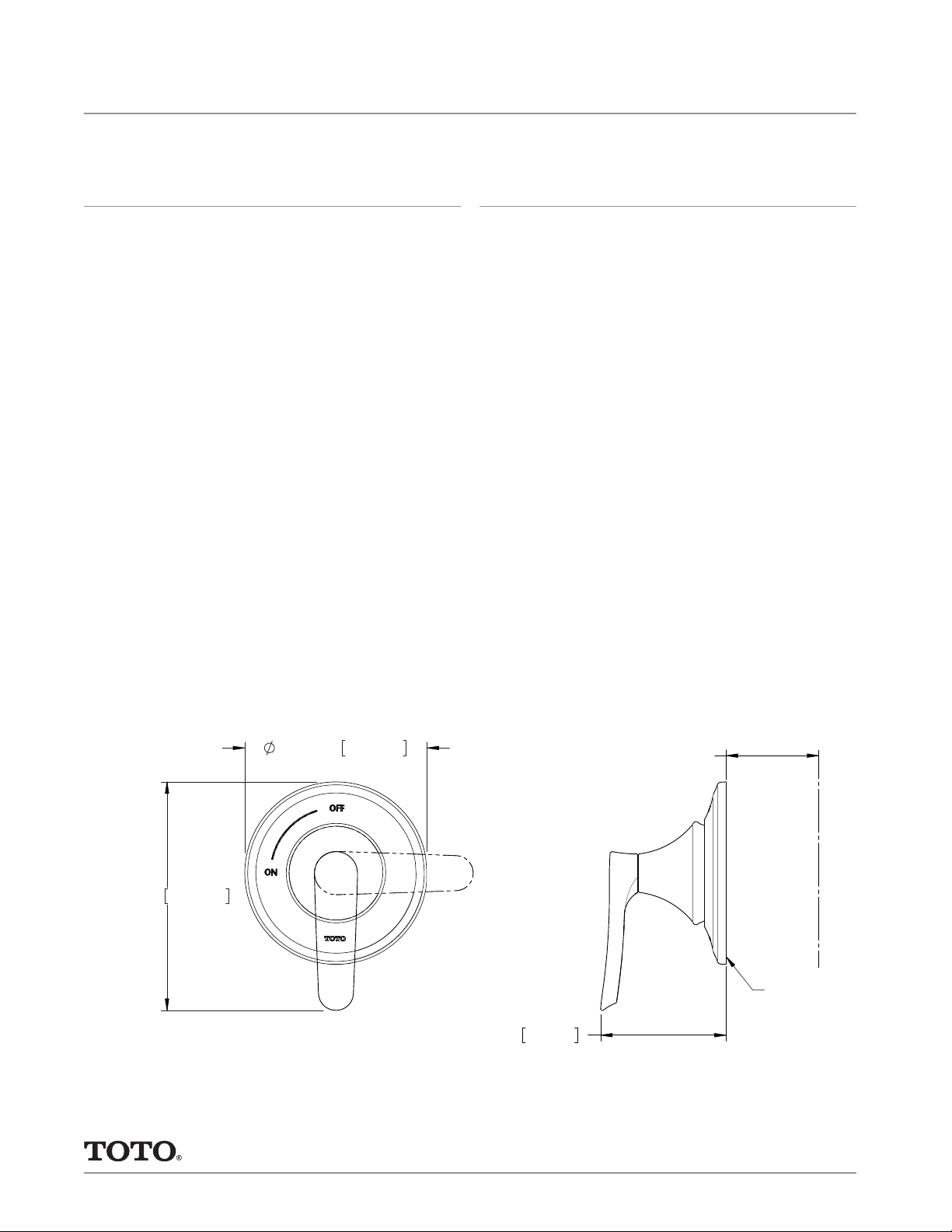

INSTALLATION NOTES
VALVE REQUIRED:
Volume control valve model TSMA sold separately.
3-15/16"
4-15/16"
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
125mm
100mm
O
Position
Valve
C
Min: 2-1/2" [65mm]
Max: 3-3/4" [95mm]
On
Position
Finished
Wall Surface
2-11/16"
These dimensions and specifi cations are subject to change without notice
69mm
Printed in U.S.A. | © TOTO USA 09/12 | Printed on recycled paper ♻
L
#SS-00908, v.01
