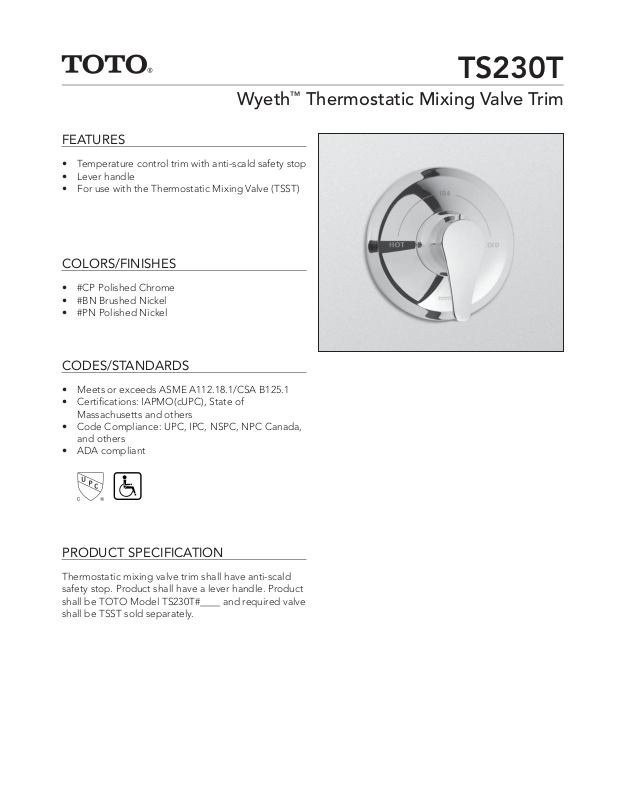

Wyeth™ Thermostatic Mixing Valve Trim
FEATURES
• Temperature control trim with anti-scald safety stop
• Lever handle
• For use with the Thermostatic Mixing Valve (TSST)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS230T
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Thermostatic mixing valve trim shall have anti-scald
safety stop. Product shall have a lever handle. Product
shall be TOTO Model TS230T#____ and required valve
shall be TSST sold separately.
Page 2
TS230T
Wyeth™ Thermostatic Mixing Valve Trim
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 2.4 lbs.
• Shipping Dimensions 8-1/2"L x 7-1/2"W x 5-1/2"H
INSTALLATION NOTES
INSTALLATION NOTES
VALVE REQUIRED:
1/2" Thermostatic mixing valve model TSST sold
separately.
6-1/2"
165mm
Min: 2-1/2" [65mm]
Max: 3-3/4" [95mm]
3-3/4"
96mm
Valve
C
L
Finished Wall
Surface
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com
These dimensions and specifi cations are subject to change without notice
#SS-00900, v.01
Printed in U.S.A. | © TOTO USA 09/12 | Printed on recycled paper ♻
