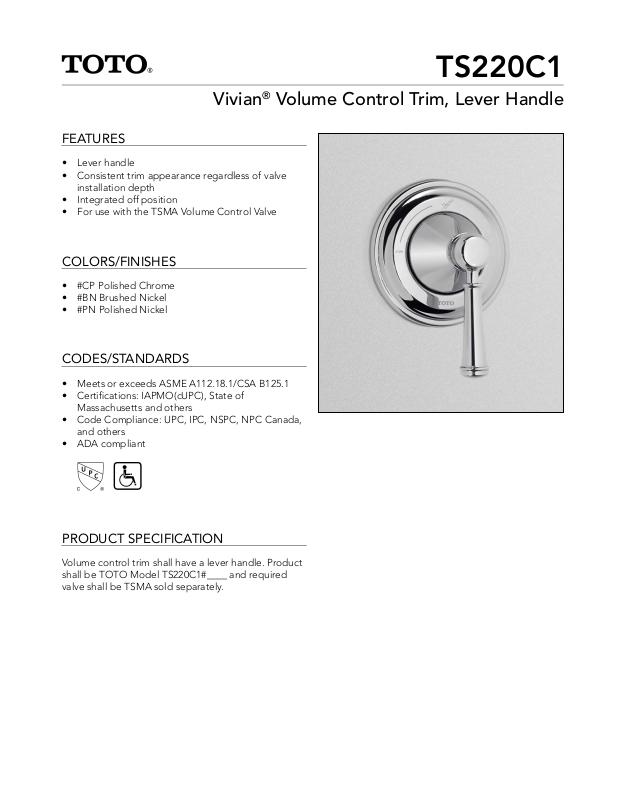

Vivian® Volume Control Trim, Lever Handle
FEATURES
• Lever handle
• Consistent trim appearance regardless of valve
installation depth
• Integrated off position
• For use with the TSMA Volume Control Valve
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
TS220C1
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Volume control trim shall have a lever handle. Product
shall be TOTO Model TS220C1#____ and required
valve shall be TSMA sold separately.
Page 2
TS220C1
Vivian® Volume Control Trim, Lever Handle
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 1.6 lbs.
• Shipping Dimensions 7"L x 3-1/2"W x 4"H
INSTALLATION NOTES
VALVE REQUIRED:
Volume control valve model TSMA sold separately.
3-15/16"
5-3/16"
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
131mm
O
Position
100mm
On
Position
2-5/8"
These dimensions and specifications are subject to change without notice
Min: 2-1/2" [65mm]
Max: 3-3/4" [95mm]
66mm
Valve
Finished
Wall Surface
#SS-00848, v.06
C
L
