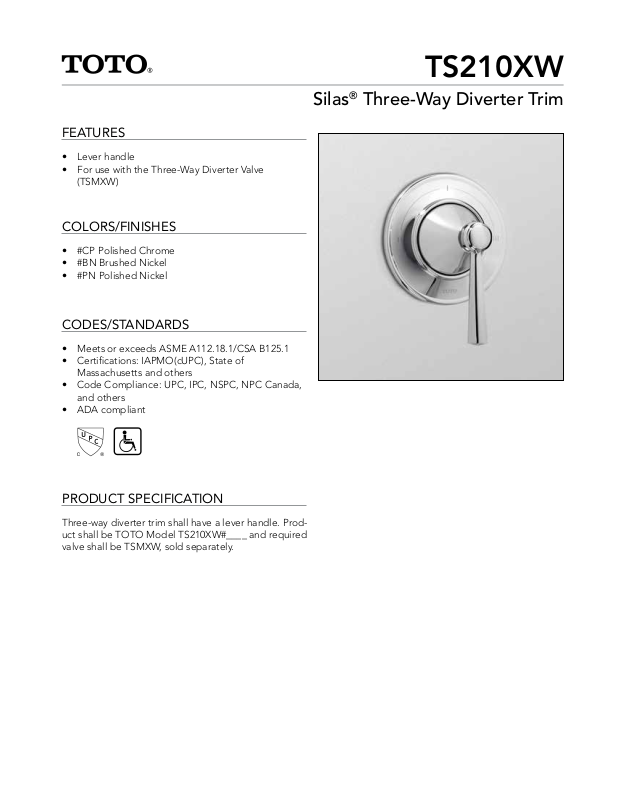

Page 1
FEATURES
• Lever handle
• For use with the Three-Way Diverter Valve
(TSMXW)
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifications: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
TS210XW
Silas® Three-Way Diverter Trim
PRODUCT SPECIFICATION
Three-way diverter trim shall have a lever handle. Product shall be TOTO Model TS210XW#____ and required
valve shall be TSMXW, sold separately.
Page 2
TS210XW
3-15/16"
100mm
5-1/16"
128mm
Valve
C
L
2-9/16"
65mm
Max: 3-3/4" [95mm]
Min: 2-1/2" [65mm]
Finished
Wall Surface
Silas® Three-Way Diverter Trim
SPECIFICATIONS
• Warranty Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
• Material Brass
• Shipping Weight 1.7 lbs.
• Shipping Dimensions 7"L x 3-1/2"W x 4"H
INSTALLATION NOTES
VALVE REQUIRED:
Three-Way diverter valve with off model TSMXW sold
separately.
5-1/16"
3-15/16"
128mm
100mm
2-9/16"
These dimensions and specifications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
65mm
Min: 2-1/2" [65mm]
Max: 3-3/4" [95mm]
Valve
C
L
Finished
Wall Surface
#SS-00920, v.02
