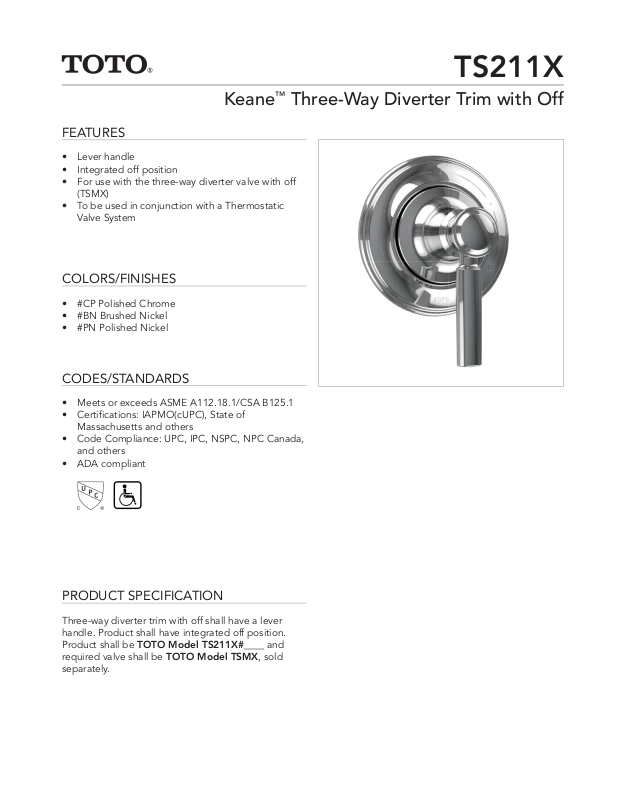

Keane™ Three-Way Diverter Trim with Off
FEATURES
• Lever handle
• Integrated off position
• For use with the three-way diverter valve with off
(TSMX)
• To be used in conjunction with a Thermostatic
Valve System
COLORS/FINISHES
• #CP Polished Chrome
• #BN Brushed Nickel
• #PN Polished Nickel
TS211X
CODES/STANDARDS
• Meets or exceeds ASME A112.18.1/CSA B125.1
• Certifi cations: IAPMO(cUPC), State of
Massachusetts and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• ADA compliant
PRODUCT SPECIFICATION
Three-way diverter trim with off shall have a lever
handle. Product shall have integrated off position.
Product shall be TOTO Model TS211X#____ and
required valve shall be TOTO Model TSMX, sold
separately.
Page 2
TS211X
Keane™ Three-Way Diverter Trim with Off
SPECIFICATIONS
• Warranty: Lifetime Limited Warranty
(Residential Use)
One Year (Commercial Use)
INSTALLATION NOTES
VALVE REQUIRED:
Three-way diverter valve with off, model TSMX,
sold separately.
• Material: Brass
• Shipping Weight: 1.7 lbs.
• Shipping Dimensions: 7"L x 3-3/4"W x 4"H
4-5/16"
5-7/16"
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
138mm
110mm
2-11/16"
These dimensions and specifi cations are subject to change without notice
Min: 2-1/2" [65mm]
Max: 3-3/4" [95mm]
69mm
9DOYH
)LQLVKHG
:DOO6XUIDFH
&
/
#SS-01064, v.02
