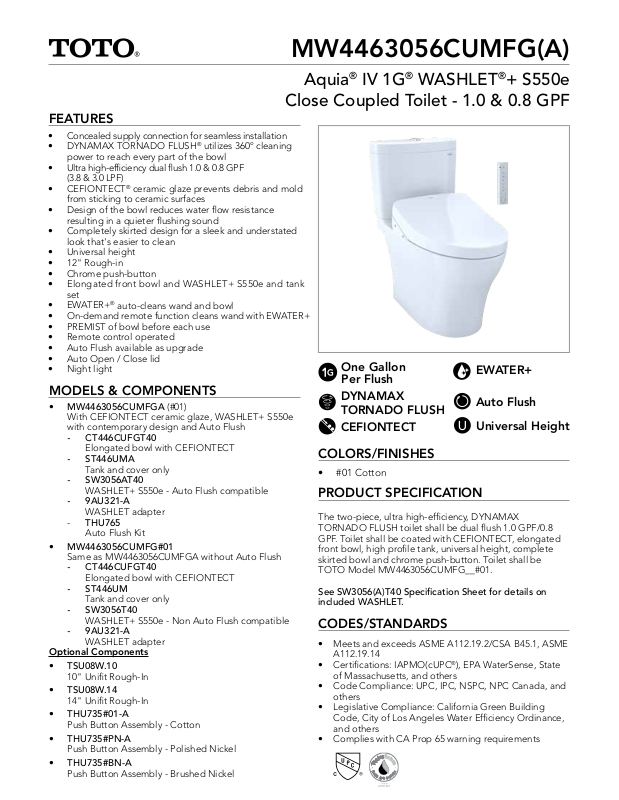

MW4463056CUMFG(A)
Close Coupled Toilet - 1.0 & 0.8 GPF
FEATURES
• Concealed supply connection for seamless installation
• DYNAMAX TORNADO FLUSH
power to reach every part of the bowl
• Ultra high-efficiency dual flush 1.0 & 0.8 GPF
(3.8 & 3.0 LPF)
• CEFIONTECT
from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Completely skirted design for a sleek and understated
look that's easier to clean
• Universal height
• 12" Rough-in
• Chrome push-button
• Elongated front bowl and WASHLET+ S550e and tank
set
• EWATER+
• On-demand remote function cleans wand with EWATER+
• PREMIST of bowl before each use
• Remote control operated
• Auto Flush available as upgrade
• Auto Open / Close lid
• Night light
®
ceramic glaze prevents debris and mold
®
auto-cleans wand and bowl
MODELS & COMPONENTS
• MW4463056CUMFGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S550e
with contemporary design and Auto Flush
- CT446CUFGT40
Elongated bowl with CEFIONTECT
- ST446UMA
Tank and cover only
- SW3056AT40
WASHLET+ S550e - Auto Flush compatible
- 9AU321-A
WASHLET adapter
- THU765
Auto Flush Kit
• MW4463056CUMFG#01
Same as MW4463056CUMFGA without Auto Flush
- CT446CUFGT40
Elongated bowl with CEFIONTECT
- ST446UM
Tank and cover only
- SW3056T40
WASHLET+ S550e - Non Auto Flush compatible
- 9AU321-A
WASHLET adapter
Optional Components
• TSU08W.10
10" Unifit Rough-In
• TSU08W.14
14" Unifit Rough-In
• THU735#01-A
Push Button Assembly - Cotton
• THU735#PN-A
Push Button Assembly - Polished Nickel
• THU735#BN-A
Push Button Assembly - Brushed Nickel
®
utilizes 360º cleaning
Aquia® IV 1G® WASHLET®+ S550e
One Gallon
Per Flush
DYNAMAX
TORNADO FLUSH
CEFIONTECT
COLORS/FINISHES
• #01 Cotton
PRODUCT SPECIFICATION
The two-piece, ultra high-efficiency, DYNAMAX
TORNADO FLUSH toilet shall be dual flush 1.0 GPF/0.8
GPF. Toilet shall be coated with CEFIONTECT, elongated
front bowl, high profile tank, universal height, complete
skirted bowl and chrome push-button. Toilet shall be
TOTO Model MW4463056CUMFG__#01.
See SW3056(A)T40 Specification Sheet for details on
included WASHLET.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1, ASME
A112.19.14
• Certifications: IAPMO(cUPC
of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada, and
others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency Ordinance,
and others
• Complies with CA Prop 65 warning requirements
EWATER+
Auto Flush
Universal Height
®
), EPA WaterSense, State
Page 2
MW4463056CUMFG(A)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Aquia® IV 1G® WASHLET®+ S550e
Close Coupled Toilet - 1.0 & 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
See SW3056(A)T40 Specication Sheet for details on included WASHLET.
1.0 & 0.8 GPF (3.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12" (10" & 14" Optional)
2-1/8"
One Year Limited Warranty
Vitreous China
CT446CUFGT40
85 lbs
ST446UMA
29 lbs
CT446CUFGT40
30-3/4"L x 17-3/8"W x 20-1/2"H
ST446UMA
17-1/4"L x 7-7/8"W x 17-1/2"H
®
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ultra-low high efficiency toilets require a system with
adequate supplemental flows from other water usage
fixtures and a 4" ID drainline with minimum 2% slope
and maximum linear runs of 60ft.
DIMENSIONS
