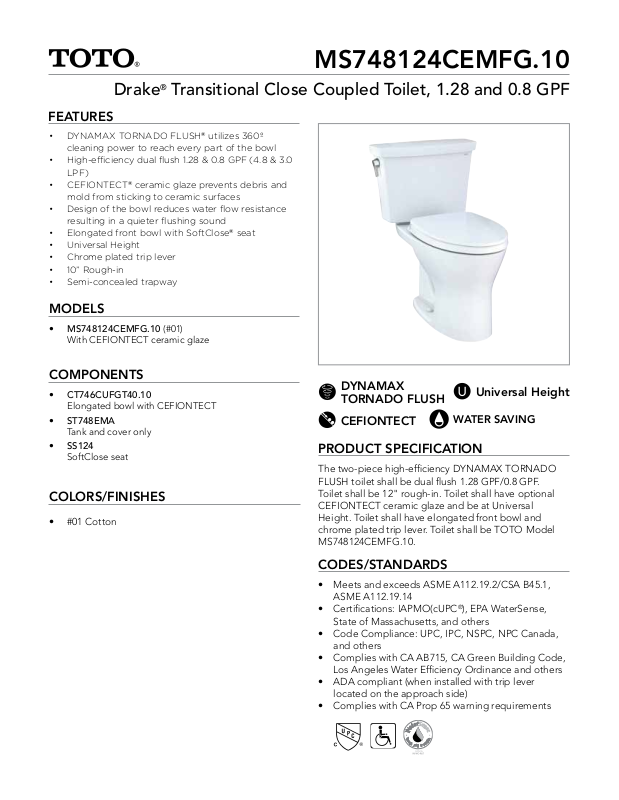

Drake® Transitional Close Coupled Toilet, 1.28 and 0.8 GPF
FEATURES
• DYNAMAX TORNADO FLUSH® utilizes 360º
cleaning power to reach every part of the bowl
• High-efficiency dual flush 1.28 & 0.8 GPF (4.8 & 3.0
LPF)
• CEFIONTECT
mold from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Elongated front bowl with SoftClose
• Universal Height
• Chrome plated trip lever
• 10” Rough-in
• Semi-concealed trapway
MODELS
• MS748124CEMFG.10 (#01)
With CEFIONTECT ceramic glaze
®
ceramic glaze prevents debris and
®
seat
MS748124CEMFG.10
COMPONENTS
• CT746CUFGT40.10
Elongated bowl with CEFIONTECT
• ST748EMA
Tank and cover only
• SS124
SoftClose seat
COLORS/FINISHES
• #01 Cotton
DYNAMAX
TORNADO FLUSH
CEFIONTECT
Universal Height
WATER SAVING
PRODUCT SPECIFICATION
The two-piece high-efficiency DYNAMAX TORNADO
FLUSH toilet shall be dual flush 1.28 GPF/0.8 GPF.
Toilet shall be 12" rough-in. Toilet shall have optional
CEFIONTECT ceramic glaze and be at Universal
Height. Toilet shall have elongated front bowl and
chrome plated trip lever. Toilet shall be TOTO Model
MS748124CEMFG.10.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Complies with CA AB715, CA Green Building Code,
Los Angeles Water Efficiency Ordinance and others
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MS748124CEMFG.10
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Transitional Close Coupled Toilet, 1.28 and 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Static)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUFGT40.10
66 lbs.
ST748EMA
33.1 lbs.
SS124
5.3 lbs.
CT746CUFGT40.10
28-1/4"L x 17-1/4"W1 x 10-3/4"W2 x 17-1/4"H
ST748EMA
19-7/8" L x 9-3/8" W x 15-5/8" H
SS124
20-7/8" L x 14-3/8" W x 3-1/16" H
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
DIMENSIONS
Fixture Dimensions shown are nominal. These dimensions and specications are subject to change without notice.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01641 v.01
