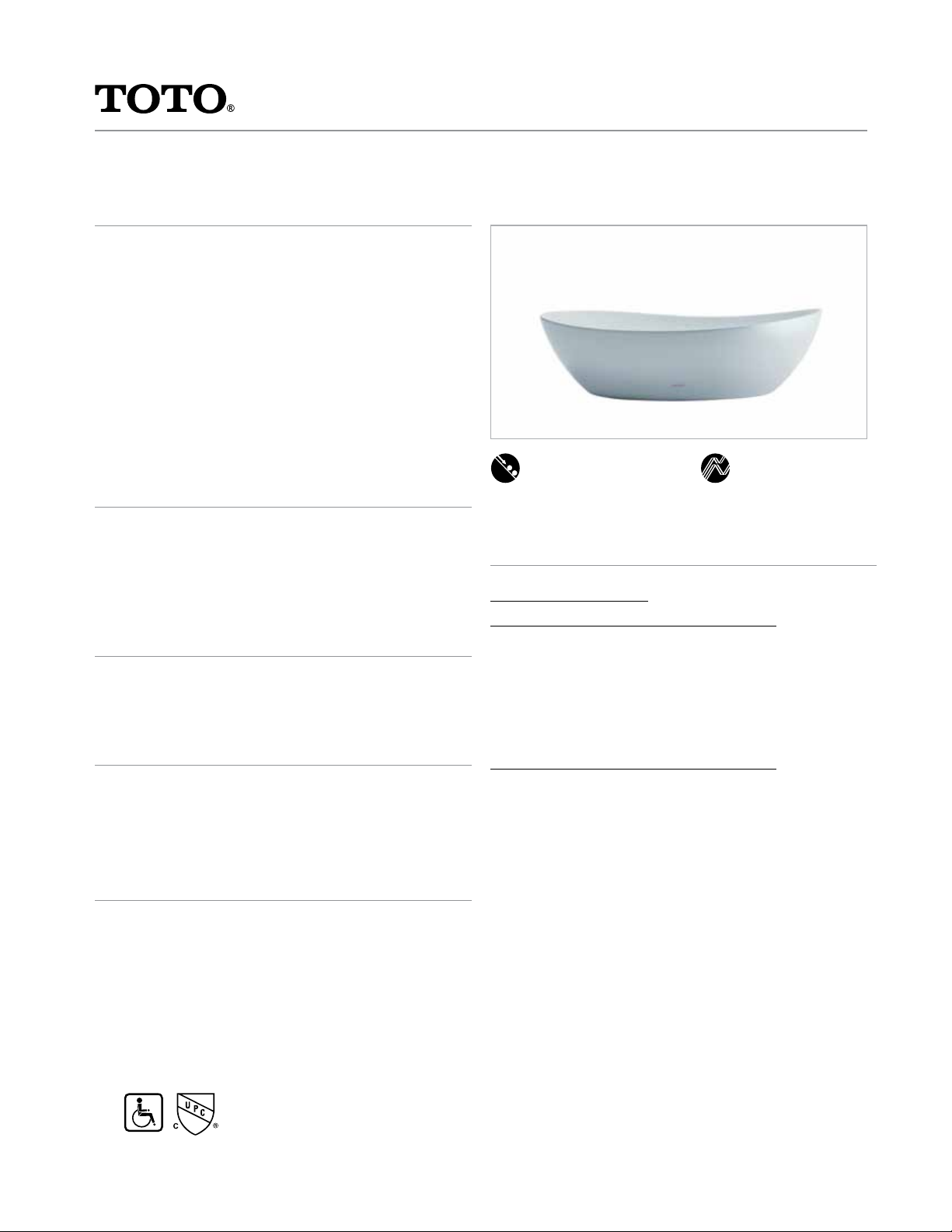

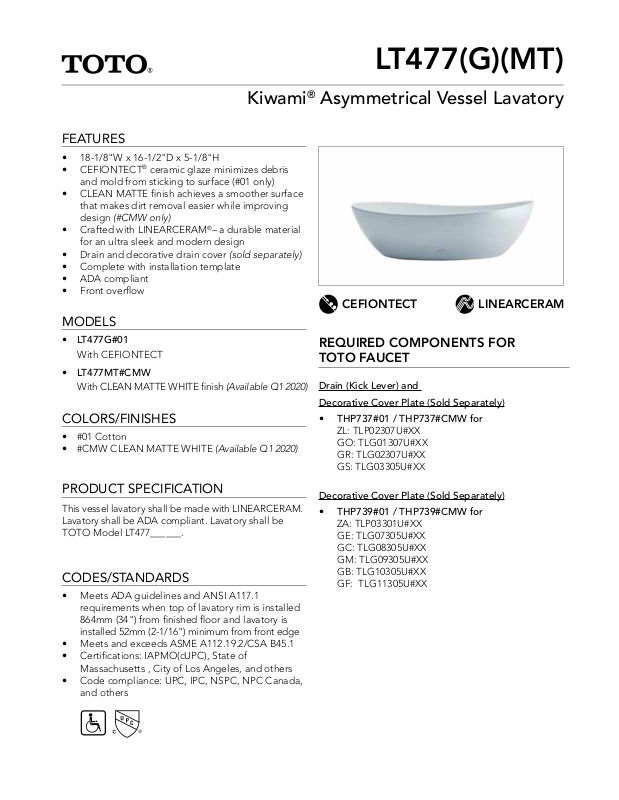

Kiwami® Asymmetrical Vessel Lavatory
FEATURES
• 18-1/8"W x 16-1/2"D x 5-1/8"H
• CEFIONTECT® ceramic glaze minimizes debris
and mold from sticking to surface (#01 only)
• CLEAN MATTE finish achieves a smoother surface
that makes dirt removal easier while improving
design (#CMW only)
• Crafted with LINEARCERAM®– a durable material
for an ultra sleek and modern design
• Drain and decorative drain cover (sold separately)
• Complete with installation template
• ADA compliant
• Front overflow
MODELS
LT477(G)(MT)
CEFIONTECT LINEARCERAM
• LT477G#01
With CEFIONTECT
• LT477MT#CMW
With CLEAN MATTE WHITE finish (Available Q1 2020)
COLORS/FINISHES
• #01 Cotton
• #CMW CLEAN MATTE WHITE (Available Q1 2020)
PRODUCT SPECIFICATION
This vessel lavatory shall be made with LINEARCERAM.
Lavatory shall be ADA compliant. Lavatory shall be
TOTO Model LT477______.
CODES/STANDARDS
• Meets ADA guidelines and ANSI A117.1
requirements when top of lavatory rim is installed
864mm (34") from finished floor and lavatory is
installed 52mm (2-1/16") minimum from front edge
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
REQUIRED COMPONENTS FOR
TOTO FAUCET
Drain (Kick Lever) and
Decorative Cover Plate (Sold Separately)
• THP737#01 / THP737#CMW for
ZL: TLP02307U#XX
GO: TLG01307U#XX
GR: TLG02307U#XX
GS: TLG03305U#XX
Decorative Cover Plate (Sold Separately)
• THP739#01 / THP739#CMW for
ZA: TLP03301U#XX
GE: TLG07305U#XX
GC: TLG08305U#XX
GM: TLG09305U#XX
GB: TLG10305U#XX
GF: TLG11305U#XX
Page 2

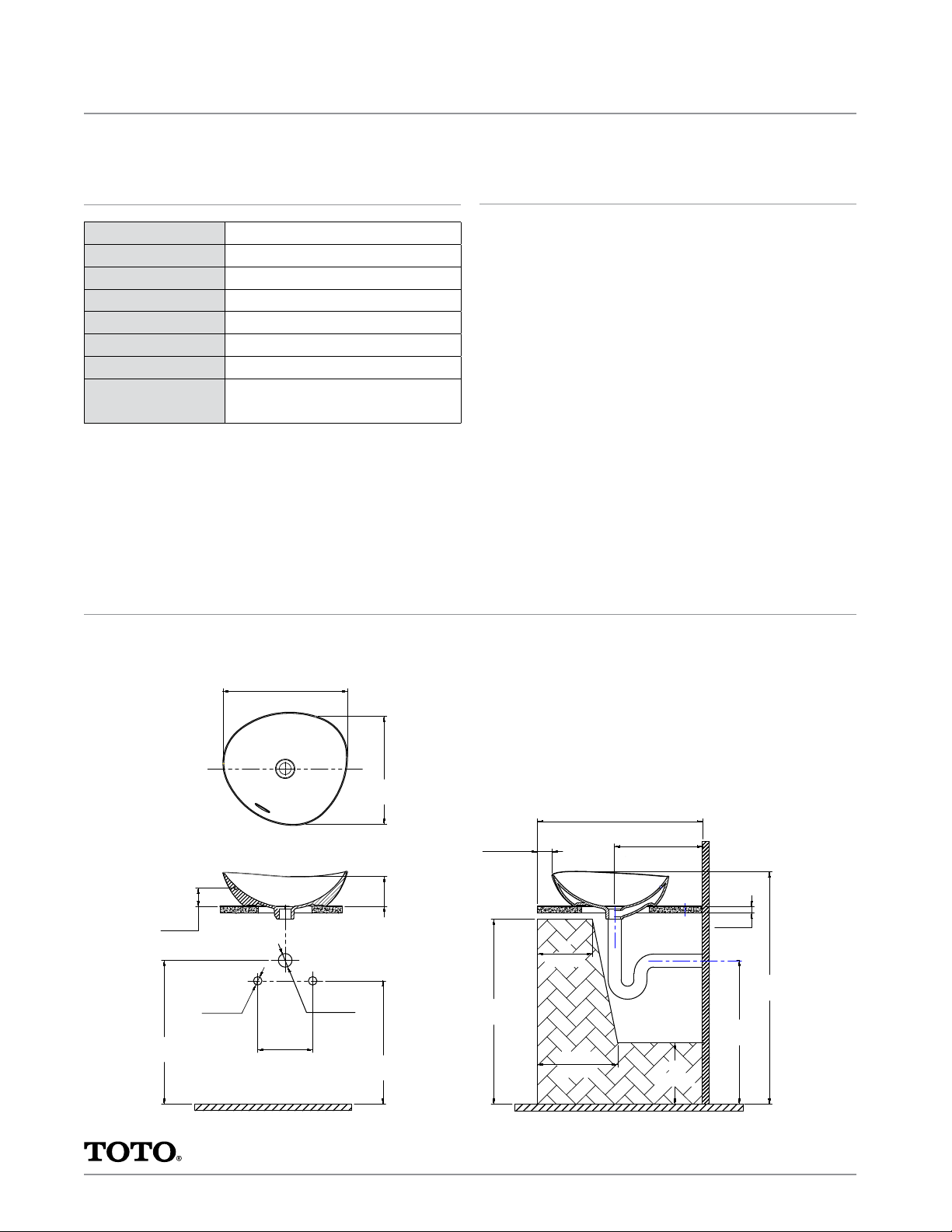

LT477(G)(MT)
4 5/16"
[110mm]
9"
[228mm]
12 13/16"
[325mm]
24"
[610mm]
2 1/8"
[54mm]
27"
[686mm]
8"
[203mm]
11 11/16"
[297mm]
1"
[25mm]
34"
[864mm]
21"
[533mm]
* 18"
[457mm]
2 11/16"
[68mm]
15 13/16"
[401mm]
18 1/8"
[460mm]
* Ø 3/8"
* Ø 1-1/4"
* 21"
[533mm]
SUPPLY INLET WASTE
* Suggested Dimensions
8"
[203mm]
OUTLET
ADA Compliance Check
Kiwami® Asymmetrical Vessel Lavatory
SPECIFICATIONS
Was te
Size
Basin
Basin Depth
Warranty
Material
Shipping Weight
Shipping
Dimensions
DIMENSIONS
1-1/4"
18-1/8"W x 16-1/2"D x 5-1/8"H
19-3/8"W x 14-5/8"D
5-1/8"
One Year Limited Warranty
LINEARCERAM
®
17.5 lbs
17-3/4" x 17-3/4" x 7-3/4"
INSTALLATION NOTES
Recommended drains , THP737 or THP739. No drain
is included. The recommended faucet height from
deck to spout is 8-5/16" (211m) and below. Aim water
supply away from the drain cover.
