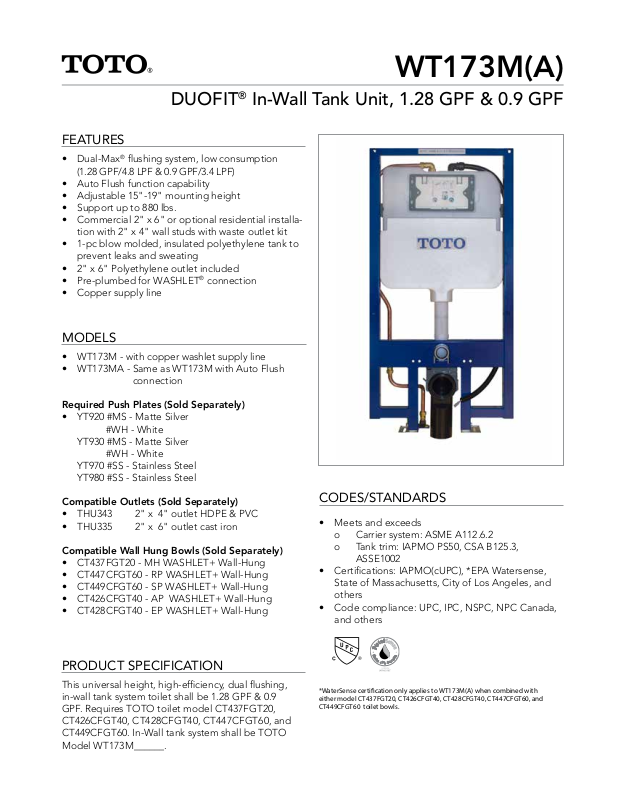

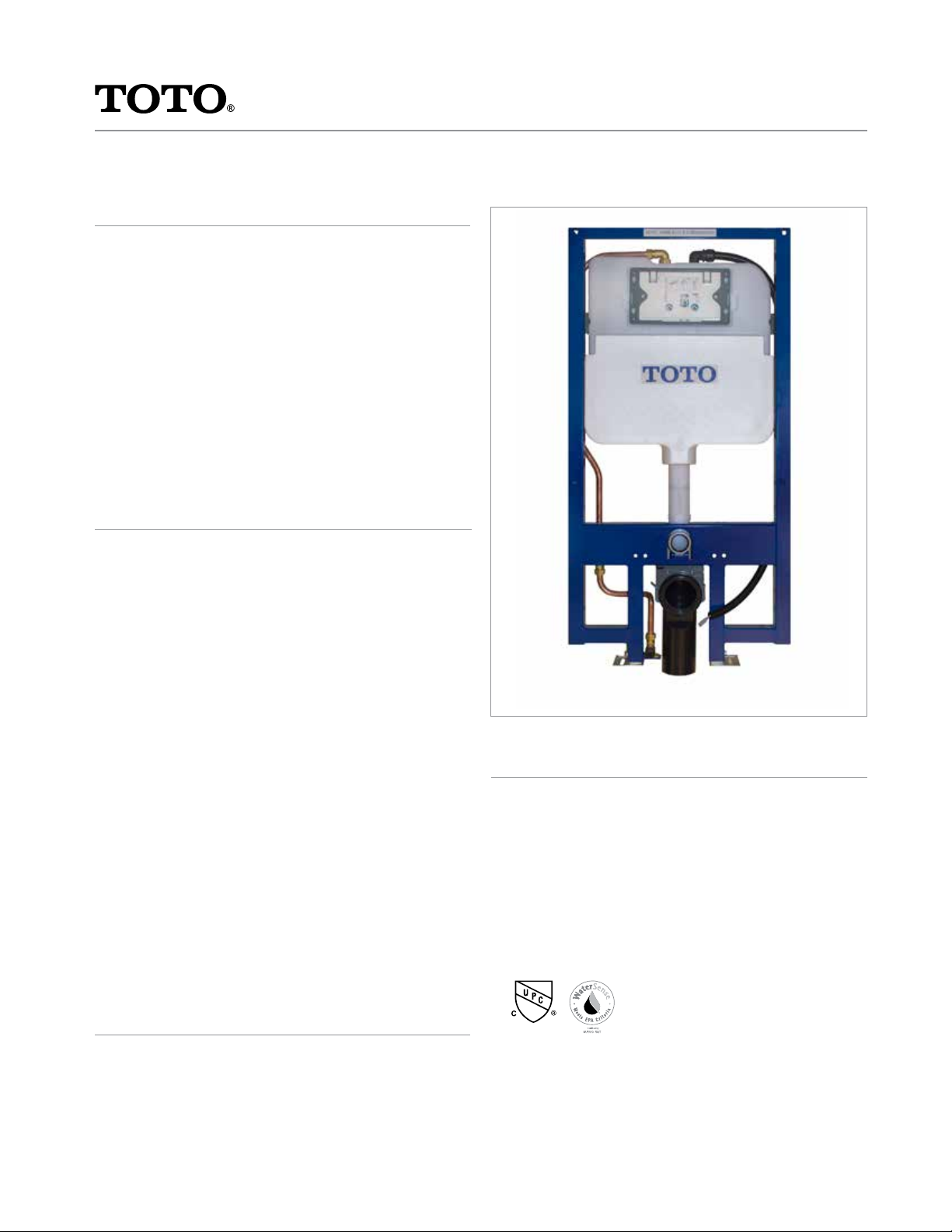

DUOFIT® In-Wall Tank Unit, 1.28 GPF & 0.9 GPF
FEATURES
• Dual-Max® flushing system, low consumption
(1.28 GPF/4.8 LPF & 0.9 GPF/3.4 LPF)
• Auto Flush function capability
• Adjustable 15"-19" mounting height
• Support up to 880 lbs.
• Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste outlet kit
• 1-pc blow molded, insulated polyethylene tank to
prevent leaks and sweating
• 2" x 6" Polyethylene outlet included
• Pre-plumbed for WASHLET
• Copper supply line
MODELS
• WT173M - with copper washlet supply line
• WT173MA - Same as WT173M with Auto Flush
connection
®
connection
WT173M(A)
Required Push Plates (Sold Separately)
• YT920 #MS - Matte Silver
#WH - White
YT930 #MS - Matte Silver
#WH - White
YT970 #SS - Stainless Steel
YT980 #SS - Stainless Steel
Compatible Outlets (Sold Separately)
• THU343 2" x 4" outlet HDPE & PVC
• THU335 2" x 6" outlet cast iron
Compatible Wall Hung Bowls (Sold Separately)
• CT437FGT20 - MH WASHLET+ Wall-Hung
• CT447CFGT60 - RP WASHLET+ Wall-Hung
• CT449CFGT60 - SP WASHLET+ Wall-Hung
• CT426CFGT40 - AP WASHLET+ Wall-Hung
• CT428CFGT40 - EP WASHLET+ Wall-Hung
PRODUCT SPECIFICATION
This universal height, high-efficiency, dual flushing,
in-wall tank system toilet shall be 1.28 GPF & 0.9
GPF. Requires TOTO toilet model CT437FGT20,
CT426CFGT40, CT428CFGT40, CT447CFGT60, and
CT449CFGT60. In-Wall tank system shall be TOTO
Model WT173M______.
CODES/STANDARDS
• Meets and exceeds
o Carrier system: ASME A112.6.2
o Tank trim: IAPMO PS50, CSA B125.3,
ASSE1002
• Certifications: IAPMO(cUPC), *EPA Watersense,
State of Massachusetts, City of Los Angeles, and
others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
*WaterSense certication only applies to WT173M(A) when combined with
either model CT437FGT20, CT426CFGT40, CT428CFGT40, CT447CFGT60, and
CT449CFGT60 toilet bowls.
Page 2

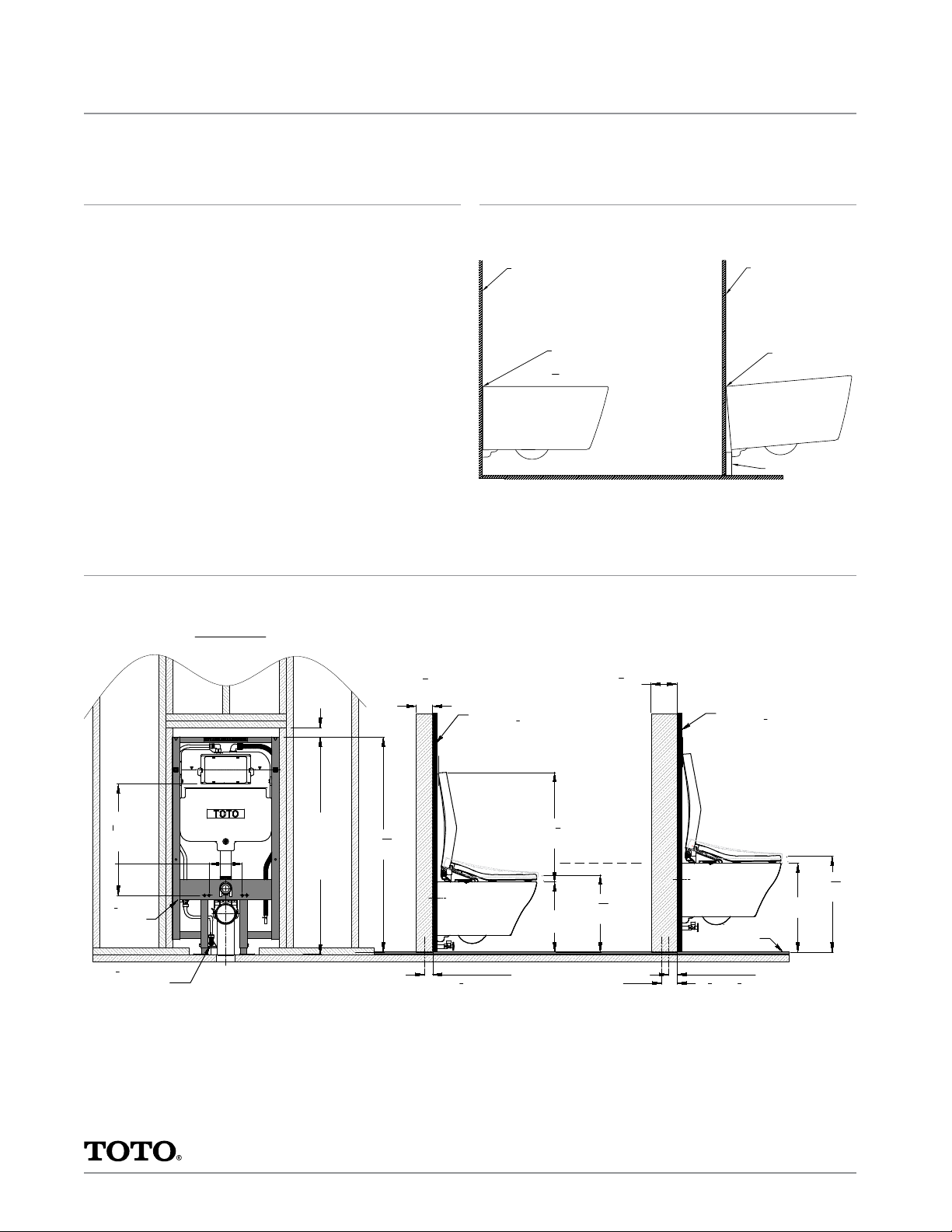

WT173M(A)
2"
[51mm]
7"
[180mm]
45
⅜
" - 50
⅜
"
[1150 - 1280 mm]
Drain Hole ℄:
15"
[381mm]
1
3
4
" from front of frame
using 2"x4" installation kit
THU343
2"x4"
[51mm x 102mm]
Installation
Drain Hole ℄:
1
3
4
" or 3
1
4
" from front
of frame using
Ø90mm Outlet Pipe
2"x6"
[51mm x 152mm]
or with Back Access
Installation
Finished Floor
*Refer to
Installation Manual
on the specific
Carrier height for
the desired height
of the toilet
Frame Work
Follow wall framing code
around the Carrier
23
3
4
"
[603mm]
3
1
2
"
[89mm]
5
1
2
"
[140mm]
Finished Wall
thickness
1
2
" to 2"
Finished Wall
thickness
1
2
" to 2"
45
15
16
"
[1167mm]
23
3
8
"
[593mm]
16
7
16
"
[418mm]
19"
[483mm]
20
7
16
"
[520mm]
1
2
" NPT Water
Supply to
Washlet
1
2
" NPT
Water
Supply
DUOFIT In-Wall Tank Unit, 1.28 GPF & 0.9 GPF
SPECIFICATIONS
• Water Use 1.28 GPF & 0.9 GPF
(4.8 LPF & 3.4 LPF)
• Flush System Dual-Max
• Min. Water Pressure 8 psi (static)
• Installation Height 15" to 19" (projected range)
• Warranty One Year Limited Warranty
• Material Various
• Shipping Weight 43 lbs
• Shipping Dimensions 47-1/2" x 26" x 6"
DIMENSIONS
INSTALLATION NOTES
Adequate structural bracing is required.
Finish wall
Proper
Installation
Back of toilet even
with installation surface
1
" Wall gap
16
Finish wall
Improper
Installation
Uneven wall gap
Baseboard
These dimensions and specications are subject to change without notice
