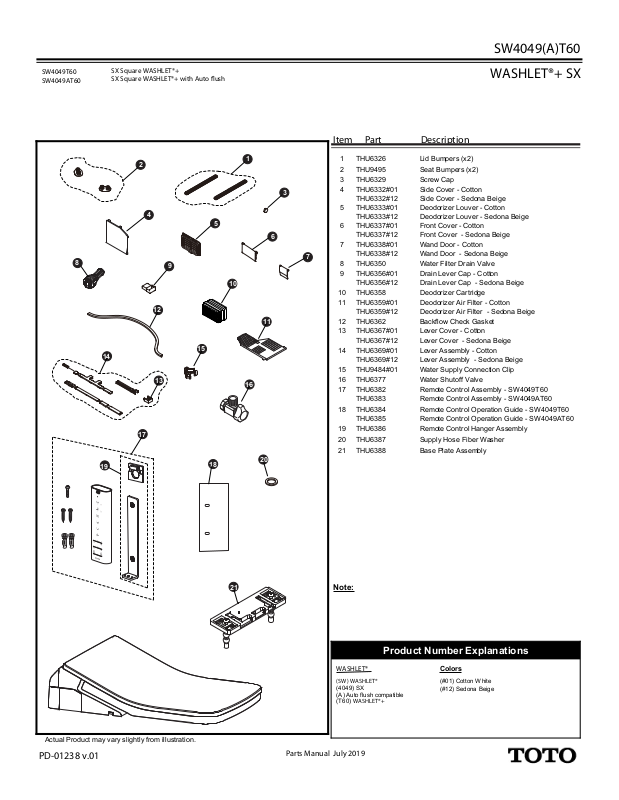

Page 1
SW4049(A)T60
SW4049T60
Note:
SW4049AT60
SX Square WASHLET®+
SX Square WASHLET
®+ with Auto ush
WASHLET®+ SX
Item Part Description
2
4
8
14
19
9
12
13
17
5
15
18
1
3
6
7
10
11
16
20
1 THU6326 Lid Bumpers (x2)
2 THU9495 Seat Bumpers (x2)
3 THU6329 Screw Cap
4 THU6332#01 Side Cover - Cotton
THU6332#12 Side Cover - Sedona Beige
5 THU6333#01 Deodorizer Louver - Cotton
THU6333#12 Deodorizer Louver - Sedona Beige
6 THU6337#01 Front Cover - Cotton
THU6337#12 Front Cover - Sedona Beige
7 THU6338#01 Wand Door - Cotton
THU6338#12 Wand Door - Sedona Beige
8 THU6350 Water Filter Drain Valve
9 THU6356#01 Drain Lever Cap - Cotton
THU6356#12 Drain Lever Cap - Sedona Beige
10 THU6358 Deodorizer Cartridge
11 THU6359#01 Deodorizer Air Filter - Cotton
THU6359#12 Deodorizer Air Filter - Sedona Beige
12 THU6362 Backflow Check Gasket
13 THU6367#01 Lever Cover - Cotton
THU6367#12 Lever Cover - Sedona Beige
14 THU6369#01 Lever Assembly - Cotton
THU6369#12 Lever Assembly - Sedona Beige
15 THU9484#01 Water Supply Connection Clip
16 THU6377 Water Shutoff Valve
17 THU6382 Remote Control Assembly - SW4049T60
THU6383 Remote Control Assembly - SW4049AT60
18 THU6384 Remote Control Operation Guide - SW4049T60
THU6385 Remote Control Operation Guide - SW4049AT60
19 THU6386 Remote Control Hanger Assembly
20 THU6387 Supply Hose Fiber Washer
21 THU6388 Base Plate Assembly
Actual Product may vary slightly from illustration.
PD-01238 v.01
21
Product Number Explanations
WASHLET®
(SW) W ASHLET®
(4049) SX
(A) Auto flush compatible
(T60) WASHLET®+
Parts Manual July 2019
Colors
(#01) Cotton Whi te
(#12) Sedona Beige
