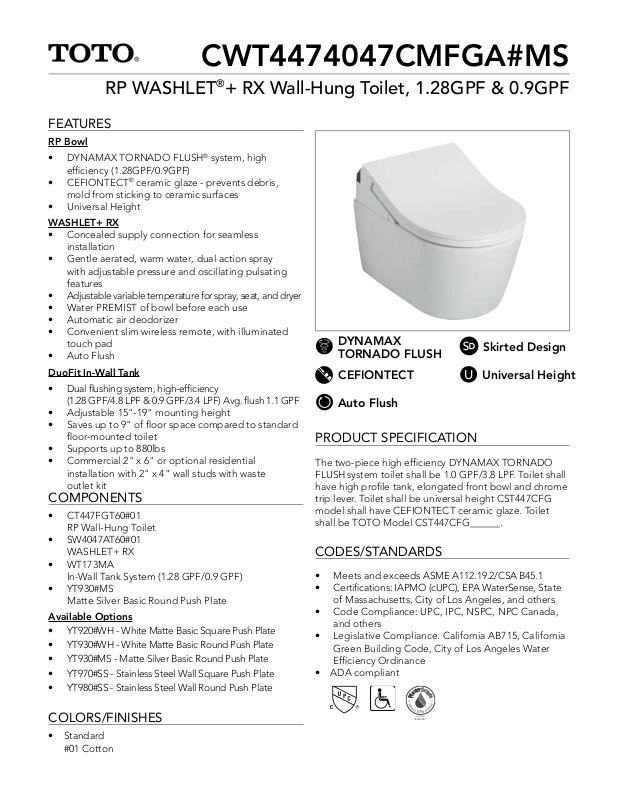

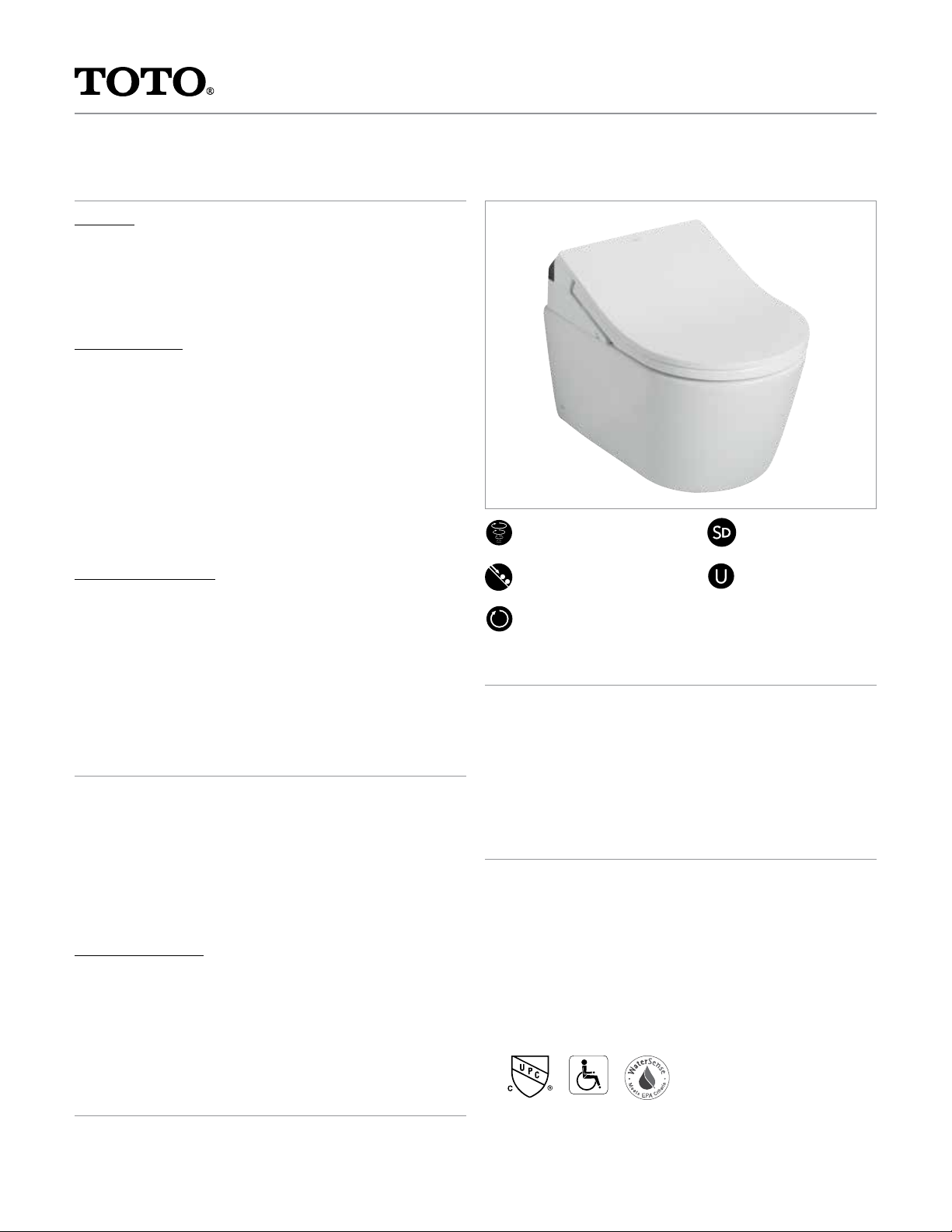

CWT4474047CMFGA#MS
RP WASHLET®+ RX Wall-Hung Toilet, 1.28GPF & 0.9GPF
FEATURES
RP Bowl
• DYNAMAX TORNADO FLUSH® system, high
efficiency (1.28GPF/0.9GPF)
• CEFIONTECT® ceramic glaze - prevents debris,
mold from sticking to ceramic surfaces
• Universal Height
WASHLET+ RX
• Concealed supply connection for seamless
installation
• Gentle aerated, warm water, dual action spray
with adjustable pressure and oscillating pulsating
features
• Adjustable variable temperature for spray, seat, and dryer
• Water PREMIST of bowl before each use
• Automatic air deodorizer
• Convenient slim wireless remote, with illuminated
touch pad
• Auto Flush
DuoFit In-Wall Tank
• Dual flushing system, high-efficiency
(1.28 GPF/4.8 LPF & 0.9 GPF/3.4 LPF) Avg. flush 1.1 GPF
• Adjustable 15"-19" mounting height
• Saves up to 9" of floor space compared to standard
floor-mounted toilet
• Supports up to 880lbs
• Commercial 2" x 6" or optional residential
installation with 2" x 4" wall studs with waste
outlet kit
COMPONENTS
• CT447FGT60#01
RP Wall-Hung Toilet
• SW4047AT60#01
WASHLET+ RX
• WT173MA
In-Wall Tank System (1.28 GPF/0.9 GPF)
• YT930#MS
Matte Silver Basic Round Push Plate
Available Options
• YT920#WH - White Matte Basic Square Push Plate
• YT930#WH - White Matte Basic Round Push Plate
• YT930#MS - Matte Silver Basic Round Push Plate
• YT970#SS - Stainless Steel Wall Square Push Plate
• YT980#SS - Stainless Steel Wall Round Push Plate
DYNAMAX
TORNADO FLUSH
CEFIONTECT
Skirted Design
Universal Height
Auto Flush
PRODUCT SPECIFICATION
The two-piece high efficiency DYNAMAX TORNADO
FLUSH system toilet shall be 1.0 GPF/3.8 LPF. Toilet shall
have high profile tank, elongated front bowl and chrome
trip lever. Toilet shall be universal height CST447CFG
model shall have CEFIONTECT ceramic glaze. Toilet
shall be TOTO Model CST447CFG______.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO (cUPC), EPA WaterSense, State
of Massachusetts, City of Los Angeles, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance
• ADA compliant
COLORS/FINISHES
• Standard
#01 Cotton
Certified by
Page 2
CWT4474047CMFGA#MS
22 7/8"
[307mm]
3 3/8"
[492mm]
Proper
Installation
Improper
Installation
Baseboard
Uneven wall gap
Back of toilet even
with installation surface
1
16
" Wall gap
Finish wall
Finish wall
RP WASHLET®+ RX Wall-Hung Toilet, 1.28GPF & 0.9GPF

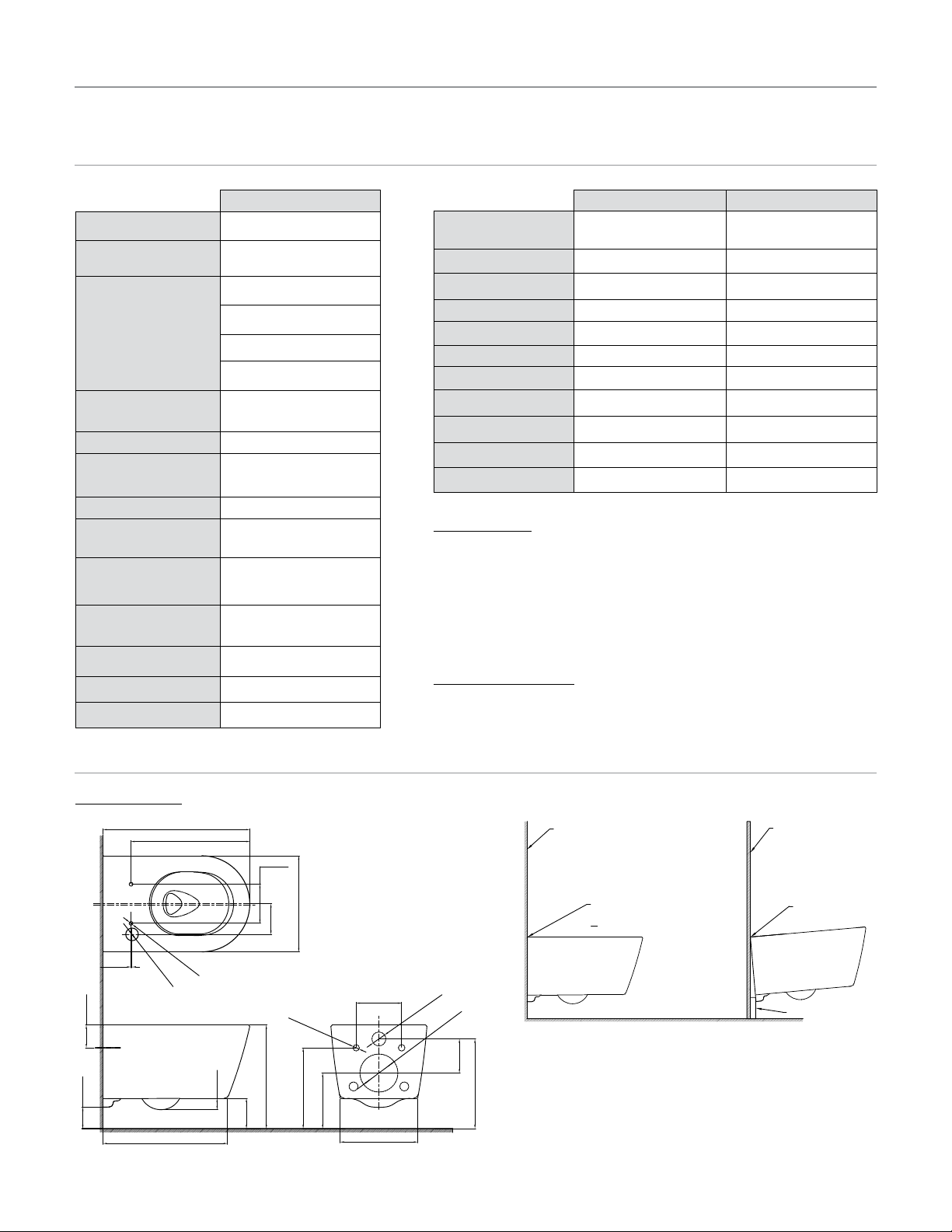

SPECIFICATIONS & INSTALLATION NOTES
Power Rating AC 120V-60Hz, 406W
Power Cord
Water Feature
(Flow Rates)
Washing Spray Temp.
Safety Device Thermal Fuse
Air Dryer Temp.
Dryer Air Capacity 9.53 ft
Seat Warming Temp.
Water Supply Pressure
Ambient Temp.
Warranty One Year Limited Warranty
Shipping Weight
Shipping Dimensions
DIMENSIONS
SW4047AT60
2.95 ft/120 cm Length
3 Prong Grounded Plug
Front: 9.8-14.5 oz/min
Rear: 9.1-14.5 oz/min
Front: 9.8-14.5 oz/min
Soft Rear: 9.8-14.5 oz min
Min: 86°F/30°C
Max: 104°F/40°C
Min: About 140°F/60°C
Max: About 86°F/30°C
3
/min
Min: 82°F/28°C
Max: 97°F/36°C
Min: 7.25 psi
Max: 108.75 psi
Min: 32°F/0°C
Max: 104°F/40°C
18 lbs.
26” x 17” x 9-3/4”
CT447CFGT60 WT173MA
Water Use
Flush System
1.28 GPF & 0.9 GPF
(4.8 LPF & 3.4 LPF)
DYNAMAX TORNADO FLUSH
1.28 GPF & 0.9 GPF
(4.8 LPF & 3.4 LPF)
®
Dual-Max
®
Min. Water Pressure 8 psi (static) 8 psi (static)
Water Surface 5-1/2” X 4-1/8”
Trap Diameter 2-1/8”
Installation Height 15” to 19” 15” to 19”
Trap Seal 2-1/8”
Warranty One Year Limited Warranty One Year Limited Warranty
Material Vitreous China Various
Shipping Weight
Shipping Dimensions
76 lbs.
16” L x 14”W x 24” H
43 lbs
47-1/2" x 26" x 6"
RX WASHLET
• WASHLET RX may not fit certain toilet bowl designs
• If possible, with your order, please include your model
number (from the underside of the tank lid)
• It is highly recommended to use a surge protector to
prevent damage in the event of a power surge
DuoFit In-Wall Tank
• Adequate structural bracing is required
CT447CFGT60
[580mm]
[Ă50mm]
3 1/2"
[90mm]
[85mm]
1/8"
[4mm]
Ă2"
19 3/8"
Ă5/8"
[Ă15mm]
18 1/2"
[470mm]
1 3/4"
[45mm]
4 3/4"
6 1/8"
[155mm]
16 1/8"
[120mm]
4 3/4"
[410mm]
[121mm]
[Ă25mm]
15"
Ă1"
12 5/8"
[380mm]
[320mm]
8 5/8"
[220mm]
7 1/8"
[180mm]
12 1/8"
Ă2 1/8"
[Ă55mm]
Ă5 7/8"
[Ă150mm]
5 1/4"
[135mm]
14"
[355mm]
Finish wall
Proper
Installation
Back of toilet even
with installation surface
1
16
Finish wall
Improper
Installation
Uneven wall gap
" Wall gap
Baseboard
Page 3
CWT4474047CMFGA#MS

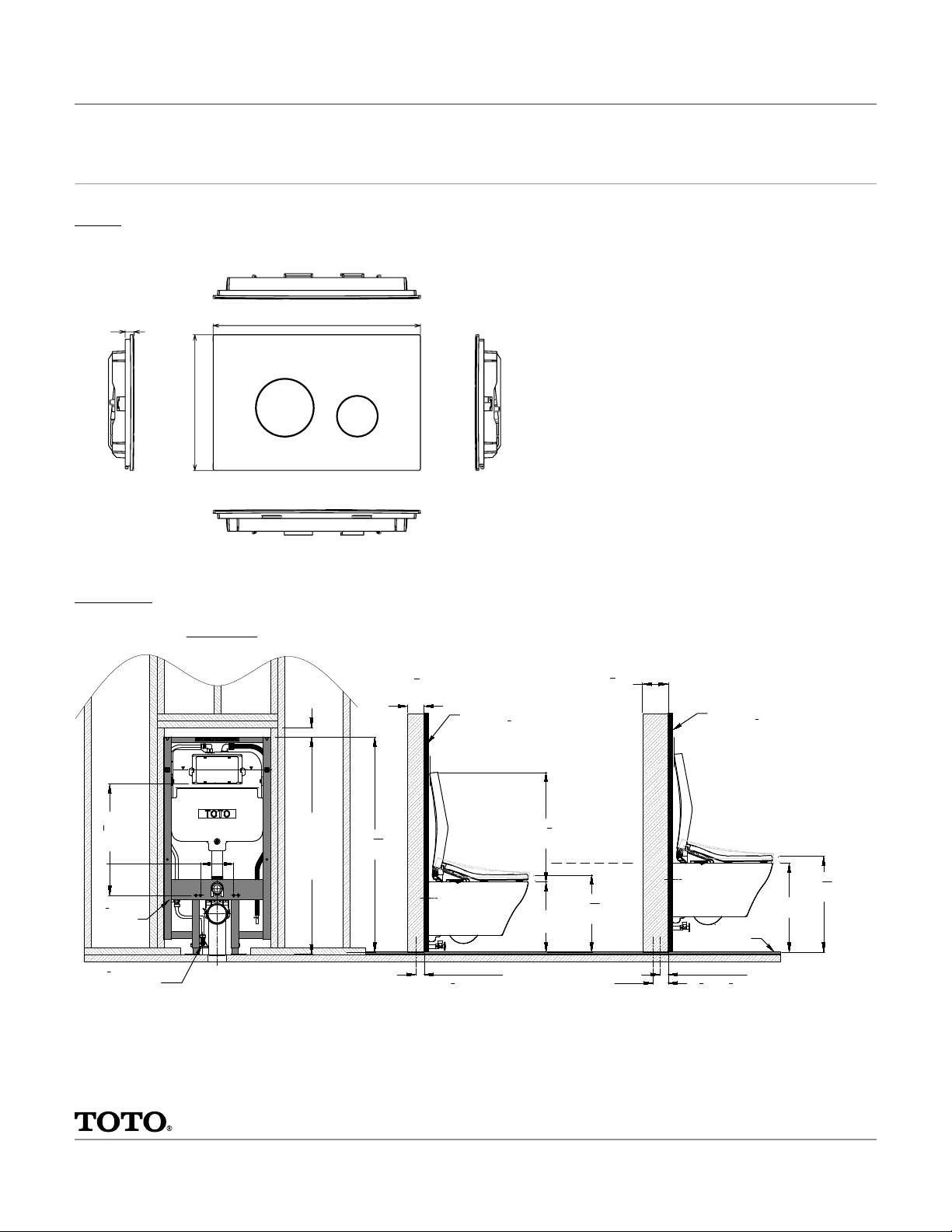

2"
[51mm]
7"
[180mm]
45
⅜
" - 50
⅜
"
[1150 - 1280 mm]
Drain Hole ℄:
15"
[381mm]
1
3
4
" from front of frame
using 2"x4" installation kit
THU343
2"x4"
[51mm x 102mm]
Installation
Drain Hole ℄:
1
3
4
" or 3
1
4
" from front
of frame using
Ø90mm Outlet Pipe
2"x6"
[51mm x 152mm]
or with Back Access
Installation
Finished Floor
*Refer to
Installation Manual
on the specific
Carrier height for
the desired height
of the toilet
Frame Work
Follow wall framing code
around the Carrier
23
3
4
"
[603mm]
3
1
2
"
[89mm]
5
1
2
"
[140mm]
Finished Wall
thickness
1
2
" to 2"
Finished Wall
thickness
1
2
" to 2"
45
15
16
"
[1167mm]
23
3
8
"
[593mm]
16
7
16
"
[418mm]
19"
[483mm]
20
7
16
"
[520mm]
1
2
" NPT Water
Supply to
Washlet
1
2
" NPT
Water
Supply
RP WASHLET®+ RX Wall-Hung Toilet, 1.28GPF & 0.9GPF
DIMENSIONS
YT930
10
WT173MA
243
159
