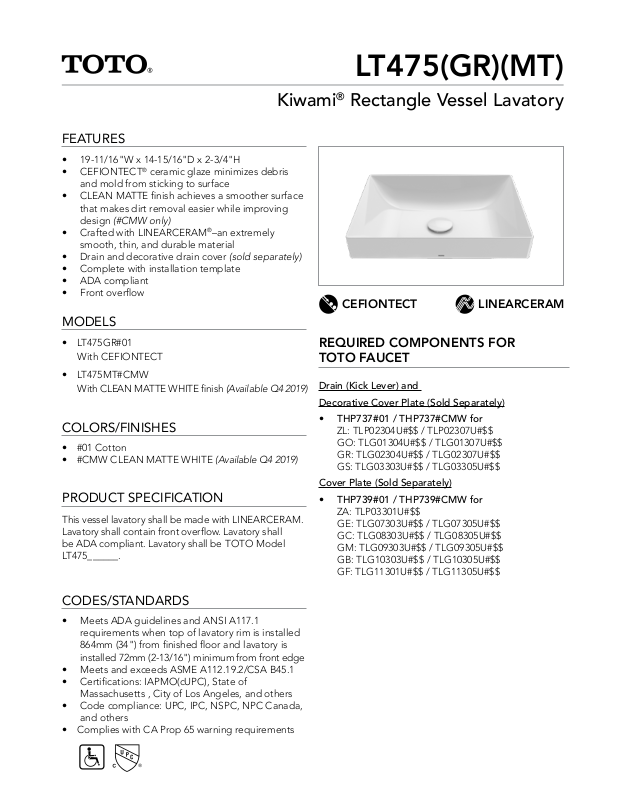

Kiwami® Rectangle Vessel Lavatory
FEATURES
• 19-11/16"W x 14-15/16"D x 2-3/4"H
• CEFIONTECT® ceramic glaze minimizes debris
and mold from sticking to surface
• CLEAN MATTE nish achieves a smoother surface
that makes dirt removal easier while improving
design (#CMW only)
• Crafted with LINEARCERAM®–an extremely
smooth, thin, and durable material
• Drain and decorative drain cover (sold separately)
• Complete with installation template
• ADA compliant
• Front overow
MODELS
LT475(GR)(MT)
CEFIONTECT LINEARCERAM
• LT475GR#01
With CEFIONTECT
• LT475MT#CMW
With CLEAN MATTE WHITE nish (Available Q4 2019)
COLORS/FINISHES
• #01 Cotton
• #CMW CLEAN MATTE WHITE (Available Q4 2019)
PRODUCT SPECIFICATION
This vessel lavatory shall be made with LINEARCERAM.
Lavatory shall contain front overow. Lavatory shall
be ADA compliant. Lavatory shall be TOTO Model
LT475______.
CODES/STANDARDS
• Meets ADA guidelines and ANSI A117.1
requirements when top of lavatory rim is installed
864mm (34") from nished oor and lavatory is
installed 72mm (2-13/16") minimum from front edge
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certications: IAPMO(cUPC), State of
Massachusetts , City of Los Angeles, and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Complies with CA Prop 65 warning requirements
REQUIRED COMPONENTS FOR
TOTO FAUCET
Drain (Kick Lever) and
Decorative Cover Plate (Sold Separately)
• THP737#01 / THP737#CMW for
ZL: TLP02304U#$$ / TLP02307U#$$
GO: TLG01304U#$$ / TLG01307U#$$
GR: TLG02304U#$$ / TLG02307U#$$
GS: TLG03303U#$$ / TLG03305U#$$
Cover Plate (Sold Separately)
• THP739#01 / THP739#CMW for
ZA: TLP03301U#$$
GE: TLG07303U#$$ / TLG07305U#$$
GC: TLG08303U#$$ / TLG08305U#$$
GM: TLG09303U#$$ / TLG09305U#$$
GB: TLG10303U#$$ / TLG10305U#$$
GF: TLG11301U#$$ / TLG11305U#$$
Page 2
LT475(GR)(MT)
Kiwami Rectangle Vessel Lavatory
SPECIFICATIONS
Was te
Size
Basin
Basin Depth
Warranty
Material
Shipping Weight
Shipping
Dimensions
DIMENSIONS
19 11/16" [500mm]
1-1/4"
19-11/16"W x 14-15/16"D x 2-3/4"H
19-3/8"W x 14-5/8"D
3-9/16"
One Year Limited Warranty
LINEARCERAM
23 lbs
25" x 17-7/8" x 8-3/4"
INSTALLATION NOTES
Drain assembly with cover packaged and sold
separately. See components section for model
number listing.
1/8" [4mm] Ref.
21" [533mm]
8" [203mm]
*
19 3/8" [493mm]
BASIN WIDTH
3 9/16" [90mm]
1 15/16" [49mm]
1
WASTE
3/8" * SUPPLY
* Suggested Dimensions
14 5/8" [372mm]
BASIN DEPTH
2 3/4" [70mm]
1
" *
4
18" [457mm]
14 15/16" [380mm]
34" [864mm]
*
2 13/16" [72mm]
MINIMUM
27" [686mm]
ADA COMPLIANCE
24" [610mm]
13 11/16" [348mm]
8" [203mm]
11" [279mm]
9" [228mm]
1" [25mm]
21" [533mm]
34" [864mm]
MAX
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com |
These dimensions and specications are subject to change without notice
© TOTO USA
#SS-01634 v.01
