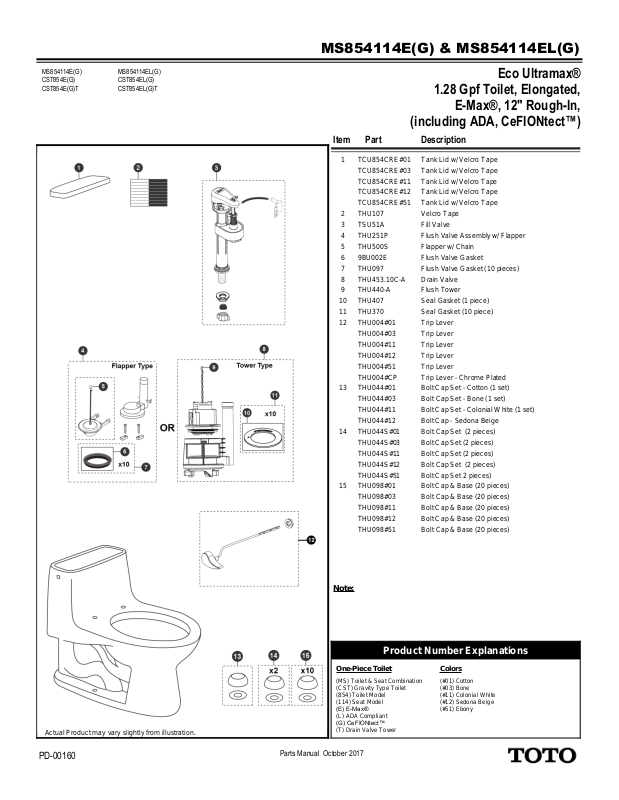

MS854114E(G) & MS854114EL(G)
MS854114E(G)
CST854E(G)
CST854E(G)T
MS854114EL(G)
CST854EL(G)
CST854EL(G)T
Eco Ultramax®
1.28 Gpf Toilet, Elongated,
E-Max®, 12" Rough-In,
(including ADA, CeFIONtect™)
One-Piece Toilet
(MS) Toilet & Seat Combination
(CST) Gravity Type Toilet
(854) Toilet Model
(114) Seat Model
(E) E-Max®
(L) ADA Compliant
(G) CeFIONtect™
(T) Drain Valve Tower
(#01) Cotton
(#03) Bone
(#11) Colonial White
(#12) Sedona Beige
(#51) Ebony
Colors
Product Number Explanations
Note:
Item
Part
Description
Actual Product may vary slightly from illustration.
1
TCU854CRE#01
Tank Lid w/ Velcro Tape
272
TCU854CRE#03
Tank Lid w/ Velcro Tape
273
TCU854CRE#11
Tank Lid w/ Velcro Tape
274
TCU854CRE#12
Tank Lid w/ Velcro Tape
275
TCU854CRE#51
Tank Lid w/ Velcro Tape
276
2
THU107
Velcro Tape
277
3
TSU51A
Fill Valve
278
4
THU251P
Flush Valve Assembly w/ Flapper
279
5
THU500S
Flapper w/ Chain
280
6
9BU002E
Flush Valve Gasket
281
7
THU097
Flush Valve Gasket (10 pieces)
282
8
THU453.10C-A
Drain Valve
283
9
THU440-A
Flush Tower
284
10
THU407
Seal Gasket (1 piece)
285
11
THU370
Seal Gasket (10 piece)
286
12
THU004#01
Trip Lever
287
THU004#03
Trip Lever
288
THU004#11
Trip Lever
289
THU004#12
Trip Lever
290
THU004#51
Trip Lever
291
THU004#CP
Trip Lever - Chrome Plated
292
13
THU044#01
Bolt Cap Set - Cotton (1 set)
3293
THU044#03
Bolt Cap Set - Bone (1 set)
3294
THU044#11
Bolt Cap Set - Colonial White (1 set)
3295
THU044#12
Bolt Cap - Sedona Beige
3296
14
THU044S#01
Bolt Cap Set (2 pieces)
3297
THU044S#03
Bolt Cap Set (2 pieces)
3298
THU044S#11
Bolt Cap Set (2 pieces)
3299
THU044S#12
Bolt Cap Set (2 pieces)
3300
THU044S#51
Bolt Cap Set 2 pieces)
3301
15
THU098#01
Bolt Cap & Base (20 pieces)
3302
THU098#03
Bolt Cap & Base (20 pieces)
3303
THU098#11
Bolt Cap & Base (20 pieces)
3304
THU098#12
Bolt Cap & Base (20 pieces)
3305
THU098#51
Bolt Cap & Base (20 pieces)
3306
PD-00160
Parts Manual Octob er 2017
