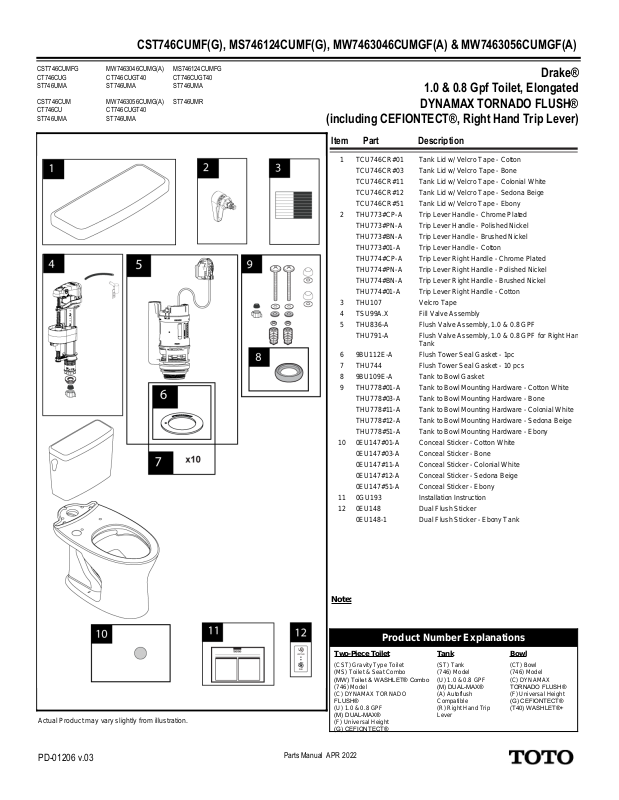

Page 1
CST746CUMFG
CT746CUG
ST746UMA
CST746CUM
CT746CU
ST746UMA
MW7463046CUMG(A)
CT746CUGT40
ST746UMA
MW7463056CUMG(A)
CT746CUGT40
ST746UMA
MS746124CUMFG
CT746CUGT40
ST746UMA
ST746UMR
Drake®
1.0 & 0.8 Gpf Toilet, Elongated
DYNAMAX TORNADO FLUSH®
(including CEFIONTECT®, Right Hand Trip Lever)
Two-Piece Toilet
(CST) Gravity Type Toilet
(MS) Toilet & Seat Combo
(MW) Toilet & WASHLET® Combo
(746) Model
(C) DYNAMAX TORNADO
FLUSH®
(U) 1.0 & 0.8 GPF
(M) DUAL-MAX®
(F) Universal Height
(G) CEFIONTECT®
(ST) Tank
(746) Model
(U) 1.0 & 0.8 GPF
(M) DUAL-MAX®
(A) Autoflush
Compatible
(R) Right Hand Trip
Lever
Bowl
(CT) Bowl
(746) Model
(C) DYNAMAX
TORNADO FLUSH®
(F) Universal Height
(G) CEFIONTECT®
(T40) WASHLET®+
Tank
Product Number Explanations
Note:
Item
Part
Description
Actual Product may vary slightly from illustration.
CST746CUMF(G), MS746124CUMF(G), MW7463046CUMGF(A) & MW7463056CUMGF(A)
1
TCU746CR#01
Tank Lid w/ Velcro Tape - Cotton
7026
TCU746CR#03
Tank Lid w/ Velcro Tape - Bone
7027
TCU746CR#11
Tank Lid w/ Velcro Tape - Colonial White
7028
TCU746CR#12
Tank Lid w/ Velcro Tape - Sedona Beige
7029
TCU746CR#51
Tank Lid w/ Velcro Tape - Ebony
7030
2
THU773#CP-A
Trip Lever Handle - Chrome Plated
7031
THU773#PN-A
Trip Lever Handle - Polished Nickel
7032
THU773#BN-A
Trip Lever Handle - Brushed Nickel
7033
THU773#01-A
Trip Lever Handle - Cotton
7034
THU774#CP-A
Trip Lever Right Handle - Chrome Plated
7035
THU774#PN-A
Trip Lever Right Handle - Polished Nickel
7036
THU774#BN-A
Trip Lever Right Handle - Brushed Nickel
7037
THU774#01-A
Trip Lever Right Handle - Cotton
7038
3
THU107
Velcro Tape
7039
4
TSU99A.X
Fill Valve Assembly
7040
5
THU836-A
Flush Valve Assembly, 1.0 & 0.8 GPF
7041
THU791-A
Flush Valve Assembly, 1.0 & 0.8 GPF for Right Hand
Tank
7042
6
9BU112E-A
Flush Tower Seal Gasket - 1pc
7043
7
THU744
Flush Tower Seal Gasket - 10 pcs
7044
8
9BU109E-A
Tank to Bowl Gasket
7045
9
THU778#01-A
Tank to Bowl Mounting Hardware - Cotton White
7046
THU778#03-A
Tank to Bowl Mounting Hardware - Bone
7047
THU778#11-A
Tank to Bowl Mounting Hardware - Colonial White
7048
THU778#12-A
Tank to Bowl Mounting Hardware - Sedona Beige
7049
THU778#51-A
Tank to Bowl Mounting Hardware - Ebony
7050
10
0EU147#01-A
Conceal Sticker - Cotton White
7051
0EU147#03-A
Conceal Sticker - Bone
7052
0EU147#11-A
Conceal Sticker - Colonial White
7053
0EU147#12-A
Conceal Sticker - Sedona Beige
7054
0EU147#51-A
Conceal Sticker - Ebony
7055
11
0GU193
Installation Instruction
7056
12
0EU148
Dual Flush Sticker
7057
0EU148-1
Dual Flush Sticker - Ebony Tank
7058
Parts Manual APR 2022
PD-01206 v.03
