Page 1
CST746CEMFG.10
CT746CUFG.10
ST746EMA
ST746EMR
ST746EMB
ST746EMD
ST746EMDB
MS746124CEMFG.10
CT746CUFGT40.10
ST746EMA
MW7463046CEMFG(A).
10
CT746CUFGT40.10
ST746EMA
MW7463056CEMFG(A).
10
CT746CUFGT40.10
ST746EMA
10” Drake®
1.28 & 0.8 Gpf Toilet, Elongated
DYNAMAX TORNADO FLUSH®, Universal Height,
(including CEFIONTECT®, Right Hand Trip Lever)
Two-Piece Toilet
(CST) Gravity Type Toilet
(MS) Toilet & Seat Combo
(MW) Toilet & WASHLET® Combo
(SS) Seat
(SW) W ASHLET®
(746) Model
(C) DYNAMAX TORNADO
FLUSH®
(E) 1.28 Gpf / 0.8Gpf
(M) DUAL-MAX®
(G) CEFIONTECT®
(.10) 10”
(ST) Tank
(746) Model
(E) 1.28 Gpf / 0.8Gpf
(M) DUAL-MAX®
(R) Right Hand Trip
Lever
(B) Bolt Down
(D) Insulated
(DB) Insulated Bolt
Down
Bowl
(CT) Bowl
(746) Model
(C) DYNAMAX
TORNADO FLUSH®
(G) CEFIONTECT®
(T40) WASHLET®+
(.10) 10”
Tank
Product Number Explanations
Note:
Item
Part
Description
Actual Product may vary slightly from illustration.

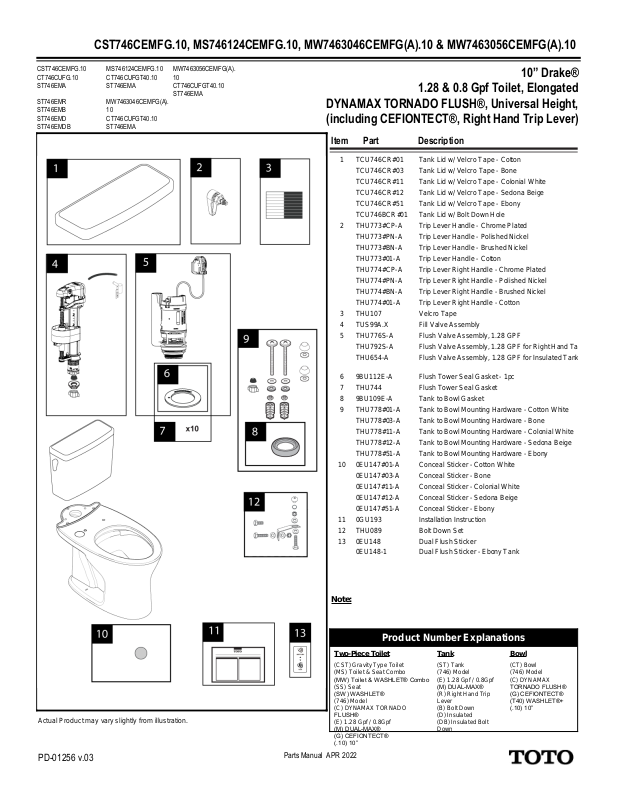

CST746CEMFG.10, MS746124CEMFG.10, MW7463046CEMFG(A).10 & MW7463056CEMFG(A).10
1
TCU746CR#01
Tank Lid w/ Velcro Tape - Cotton
6928
TCU746CR#03
Tank Lid w/ Velcro Tape - Bone
6929
TCU746CR#11
Tank Lid w/ Velcro Tape - Colonial White
6930
TCU746CR#12
Tank Lid w/ Velcro Tape - Sedona Beige
6931
TCU746CR#51
Tank Lid w/ Velcro Tape - Ebony
6932
TCU746BCR#01
Tank Lid w/ Bolt Down Hole
6933
2
THU773#CP-A
Trip Lever Handle - Chrome Plated
6934
THU773#PN-A
Trip Lever Handle - Polished Nickel
6935
THU773#BN-A
Trip Lever Handle - Brushed Nickel
6936
THU773#01-A
Trip Lever Handle - Cotton
6937
THU774#CP-A
Trip Lever Right Handle - Chrome Plated
6938
THU774#PN-A
Trip Lever Right Handle - Polished Nickel
6939
THU774#BN-A
Trip Lever Right Handle - Brushed Nickel
6940
THU774#01-A
Trip Lever Right Handle - Cotton
6941
3
THU107
Velcro Tape
6942
4
TUS99A.X
Fill Valve Assembly
6943
5
THU776S-A
Flush Valve Assembly, 1.28 GPF
6944
THU792S-A
Flush Valve Assembly, 1.28 GPF for Right Hand Tank
6945
THU654-A
Flush Valve Assembly, 1.28 GPF for Insulated Tank Only
6946
6
9BU112E-A
Flush Tower Seal Gasket - 1pc
6947
7
THU744
Flush Tower Seal Gasket
6948
8
9BU109E-A
Tank to Bowl Gasket
6949
9
THU778#01-A
Tank to Bowl Mounting Hardware - Cotton White
6950
THU778#03-A
Tank to Bowl Mounting Hardware - Bone
6951
THU778#11-A
Tank to Bowl Mounting Hardware - Colonial White
6952
THU778#12-A
Tank to Bowl Mounting Hardware - Sedona Beige
6953
THU778#51-A
Tank to Bowl Mounting Hardware - Ebony
6954
10
0EU147#01-A
Conceal Sticker - Cotton White
6955
0EU147#03-A
Conceal Sticker - Bone
6956
0EU147#11-A
Conceal Sticker - Colonial White
6957
0EU147#12-A
Conceal Sticker - Sedona Beige
6958
0EU147#51-A
Conceal Sticker - Ebony
6959
11
0GU193
Installation Instruction
6960
12
THU089
Bolt Down Set
6961
13
0EU148
Dual Flush Sticker
6962
0EU148-1
Dual Flush Sticker - Ebony Tank
6963
Parts Manual APR 2022
PD-01256 v.03
Page 2
PD-01256 v.02
Parts Manual APR 2022
