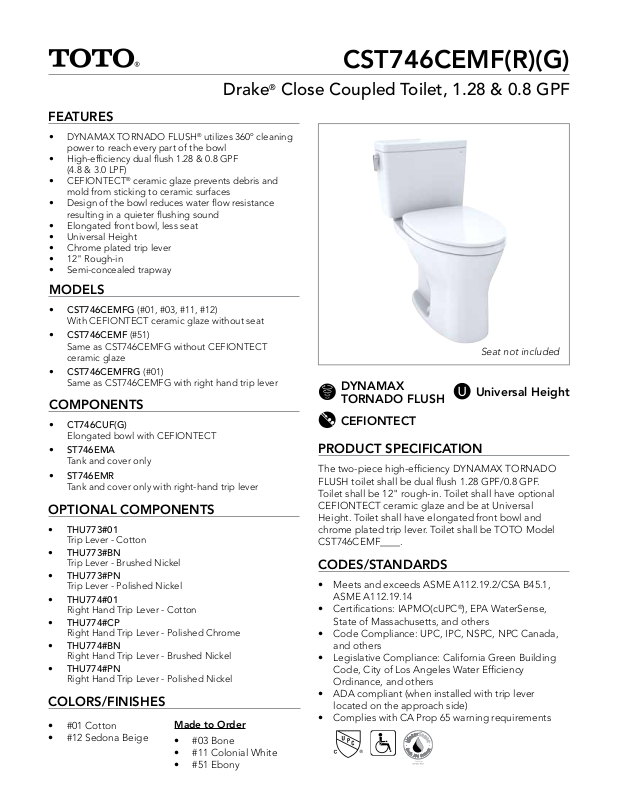

Drake® Close Coupled Toilet, 1.28 & 0.8 GPF
FEATURES
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• High-efficiency dual flush 1.28 & 0.8 GPF
(4.8 & 3.0 LPF)
• CEFIONTECT
mold from sticking to ceramic surfaces
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Elongated front bowl, less seat
• Universal Height
• Chrome plated trip lever
• 12" Rough-in
• Semi-concealed trapway
MODELS
• CST746CEMFG (#01, #03, #11, #12)
With CEFIONTECT ceramic glaze without seat
• CST746CEMF (#51)
Same as CST746CEMFG without CEFIONTECT
ceramic glaze
• CST746CEMFRG (#01)
Same as CST746CEMFG with right hand trip lever
COMPONENTS
• CT746CUF(G)
Elongated bowl with CEFIONTECT
• ST746EMA
Tank and cover only
• ST746EMR
Tank and cover only with right-hand trip lever
OPTIONAL COMPONENTS
• THU773#01
Trip Lever - Cotton
• THU773#BN
Trip Lever - Brushed Nickel
• THU773#PN
Trip Lever - Polished Nickel
• THU774#01
Right Hand Trip Lever - Cotton
• THU774#CP
Right Hand Trip Lever - Polished Chrome
• THU774#BN
Right Hand Trip Lever - Brushed Nickel
• THU774#PN
Right Hand Trip Lever - Polished Nickel
COLORS/FINISHES
• #01 Cotton
• #12 Sedona Beige
®
ceramic glaze prevents debris and
Made to Order
• #03 Bone
• #11 Colonial White
• #51 Ebony
CST746CEMF(R)(G)
Seat not included
DYNAMAX
TORNADO FLUSH
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece high-efficiency DYNAMAX TORNADO
FLUSH toilet shall be dual flush 1.28 GPF/0.8 GPF.
Toilet shall be 12" rough-in. Toilet shall have optional
CEFIONTECT ceramic glaze and be at Universal
Height. Toilet shall have elongated front bowl and
chrome plated trip lever. Toilet shall be TOTO Model
CST746CEMF____.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Universal Height
Page 2
CST746CEMF(R)(G)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Close Coupled Toilet, 1.28 & 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.28 & 0.8 GPF (4.8 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUF(G)
66 lbs.
ST746EMA
35 lbs.
CT746CUF(G)
18-3/4" L x 10-1/2" W x 18-1/8" H
ST746EMA
18-3/4" L x 8-3/8" W x 16" H
DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
16 1/2"
[420mm]
[164mm]
FINISHED
FLOOR
6 7/16"
3/4"
[20mm]
3 15/16"
[100mm]
3/16"
[4mm]
FINISHED WALL
27 3/8"
[695mm]
18 1/2"
[470mm]
21 7/16"
[545mm]
WATER
LEVEL
4 5/8"
[117mm]
6 3/8"
[162mm]
5 1/2"
[140mm]
16 1/8"
[410mm]
BOWL
HEIGHT
14 3/4"
[374mm]
SUPPLY
AS REQ'D
*SUGGESTED
DIMENSION
*5 7/8"
[150mm]
17 5/16"
[440mm]
9 13/16"
[250mm]
*4 5/16"
[110mm]
30 1/16"
[764mm]
FINISHED
WALL
BACK OF BOWL
21 7/16"
[545mm]
6"
[152mm]
12"
[305mm]
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01529 v.01
