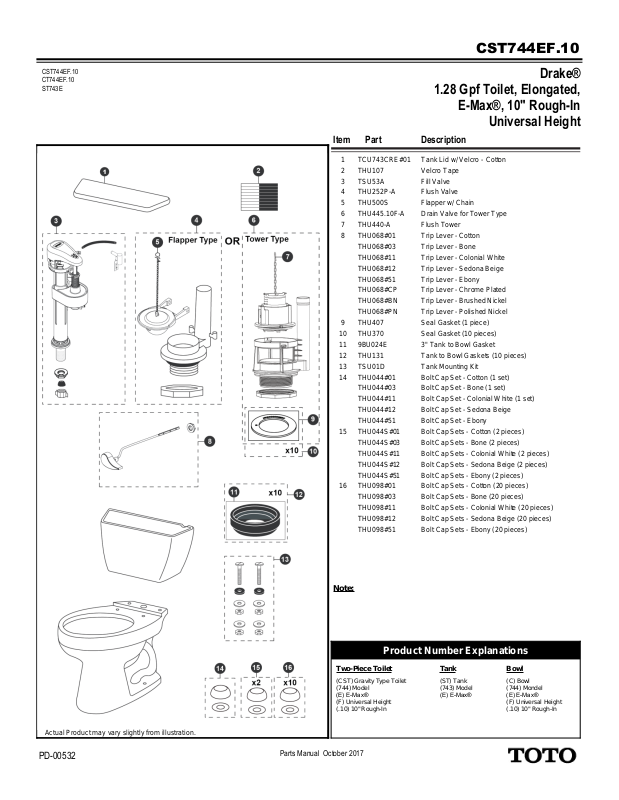

Page 1
CST744EF.10
CST744EF.10
CT744EF.10
ST743E
Drake®
1.28 Gpf Toilet, Elongated,
E-Max®, 10" Rough-In
Universal Height
Two-Piece Toilet
(CST) Gravity Type Toilet
(744) Model
(E) E-Max®
(F) Universal Height
(.10) 10" Rough-In
(ST) Tank
(743) Model
(E) E-Max®
Bowl
(C) Bowl
(744) Mondel
(E) E-Max®
(F) Universal Height
(.10) 10" Rough-In
Tank
Product Number Explanations
Note:

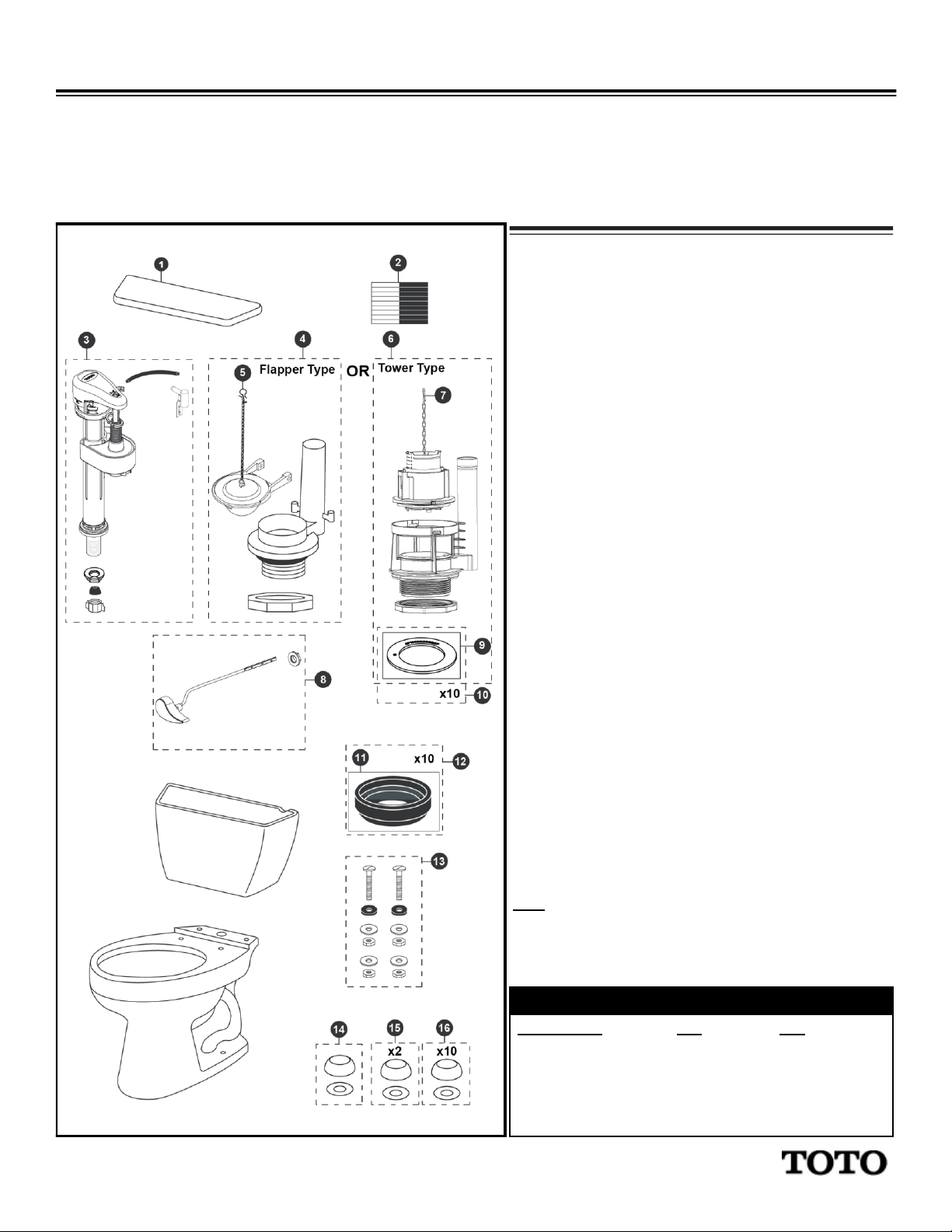

Item
Part
Description
Actual Product may vary slightly from illustration.
1
TCU743CRE#01
Tank Lid w/ Velcro - Cotton
216
2
THU107
Velcro Tape
5348
3
TSU53A
Fill Valve
5349
4
THU252P-A
Flush Valve
5350
5
THU500S
Flapper w/ Chain
5351
6
THU445.10F-A
Drain Valve for Tower Type
5352
7
THU440-A
Flush Tower
5353
8
THU068#01
Trip Lever - Cotton
5354
THU068#03
Trip Lever - Bone
5355
THU068#11
Trip Lever - Colonial White
5356
THU068#12
Trip Lever - Sedona Beige
5357
THU068#51
Trip Lever - Ebony
5358
THU068#CP
Trip Lever - Chrome Plated
5359
THU068#BN
Trip Lever - Brushed Nickel
5360
THU068#PN
Trip Lever - Polished Nickel
5361
9
THU407
Seal Gasket (1 piece)
5362
10
THU370
Seal Gasket (10 pieces)
5363
11
9BU024E
3" Tank to Bowl Gasket
5364
12
THU131
Tank to Bowl Gaskets (10 pieces)
5365
13
TSU01D
Tank Mounting Kit
5366
14
THU044#01
Bolt Cap Set - Cotton (1 set)
5367
THU044#03
Bolt Cap Set - Bone (1 set)
5368
THU044#11
Bolt Cap Set - Colonial White (1 set)
5369
THU044#12
Bolt Cap Set - Sedona Beige
5370
THU044#51
Bolt Cap Set - Ebony
5371
15
THU044S#01
Bolt Cap Sets - Cotton (2 pieces)
5372
THU044S#03
Bolt Cap Sets - Bone (2 pieces)
5373
THU044S#11
Bolt Cap Sets - Colonial White (2 pieces)
5374
THU044S#12
Bolt Cap Sets - Sedona Beige (2 pieces)
5375
THU044S#51
Bolt Cap Sets - Ebony (2 pieces)
5376
16
THU098#01
Bolt Cap Sets - Cotton (20 pieces)
5377
THU098#03
Bolt Cap Sets - Bone (20 pieces)
5378
THU098#11
Bolt Cap Sets - Colonial White (20 pieces)
5379
THU098#12
Bolt Cap Sets - Sedona Beige (20 pieces)
5380
THU098#51
Bolt Cap Sets - Ebony (20 pieces)
5381
PD-00532
Parts Manual Octob er 2017
