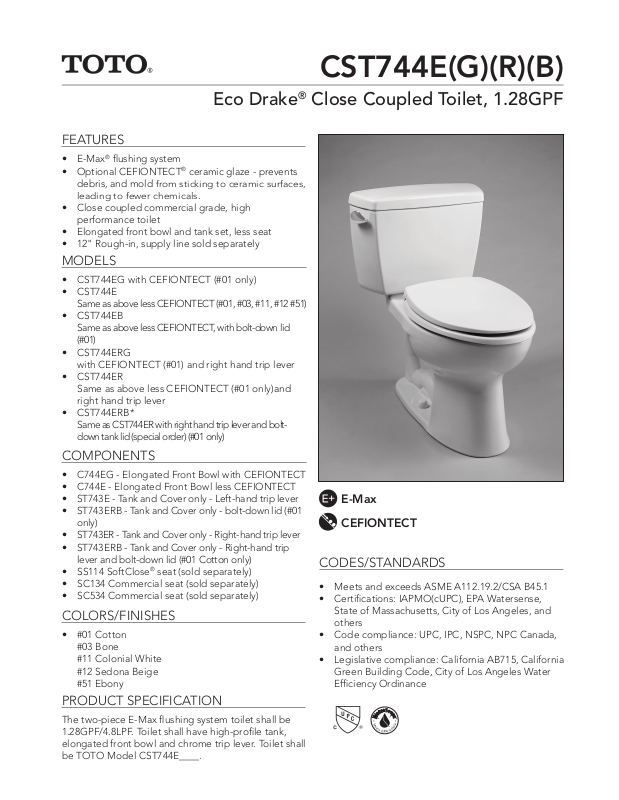

Page 1
Eco Drake® Close Coupled Toilet, 1.28GPF
FEATURES
• E-Max® flushing system
• Optional CEFIONTECT® ceramic glaze - prevents
debris, and mold
leading to fewer chemicals.
• Close coupled commercial grade, high
performance toilet
• Elongated front bowl and tank set, less seat
• 12" Rough-in, supply line sold separately
MODELS
• CST744EG with CEFIONTECT (#01 only)
• CST744E
Same as above less CEFIONTECT (#01, #03, #11, #12 #51)
• CST744EB
Same as above less CEFIONTECT, with bolt-down lid
(#01)
• CST744ERG
with CEFIONTECT (#01) and right hand trip lever
• CST744ER
Same as above less CEFIONTECT (#01 only)and
right hand trip lever
• CST744ERB*
Same as CST744ER with right hand trip lever and bolt-
down tank lid (special order) (#01 only)
from sticking to ceramic surfaces,
CST744E(G)(R)(B)
COMPONENTS
• C744EG - Elongated Front Bowl with CEFIONTECT
• C744E - Elongated Front Bowl less CEFIONTECT
• ST743E - Tank and Cover only - Left-hand trip lever
• ST743ERB - Tank and Cover only - bolt-down lid (#01
only)
• ST743ER - Tank and Cover only - Right-hand trip lever
• ST743ERB - Tank and Cover only - Right-hand trip
lever and bolt-down lid (#01 Cotton only)
• SS114 SoftClose® seat (sold separately)
• SC134 Commercial seat (sold separately)
• SC534 Commercial seat (sold separately)
COLORS/FINISHES
• #01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
PRODUCT SPECIFICATION
The two-piece E-Max flushing system toilet shall be
1.28GPF/4.8LPF. Toilet shall have high-profile tank,
elongated front bowl and chrome trip lever. Toilet shall
be TOTO Model CST744E____.
E-Max
CEFIONTECT
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1
• Certifications: IAPMO(cUPC), EPA Watersense,
State of Massachusetts, City of Los Angeles, and
others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative compliance: California AB715, California
Green Building Code, City of Los Angeles Water
Efficiency Ordinance
Page 2
CST744E(G)(R)(B)
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Eco Drake® Close Coupled Toilet, 1.28GPF
SPECIFICATIONS
• Water Use 1.28 GPF/4.8LPF
• Flush System E-Max
• Min. Water Pressure 8 psi (static)
• Water Surface 10-1/4" x 8-1/2"
• Trap Diameter 2-1/8"
• Rough-in 12"
• Trap Seal 2-3/8"
• Warranty One Year Limited Warranty
• Material Vitreous china
• Shipping Weight C744E(G) - 52lbs
• Shipping Dimensions C744E(G)
29-1/2"L x 16"W1
ST743E(R)(B)
20-1/8"L x 8-1/4"W
®
ST743E(R)(B) - 35lbs
x 10-1/4"W2 x 18-1/4"H
x 15-1/2"H
INSTALLATION NOTES
Back-to-Back Toilet Installations:
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
These dimensions and specications are subject to change without notice
# SS-00215 v.09
