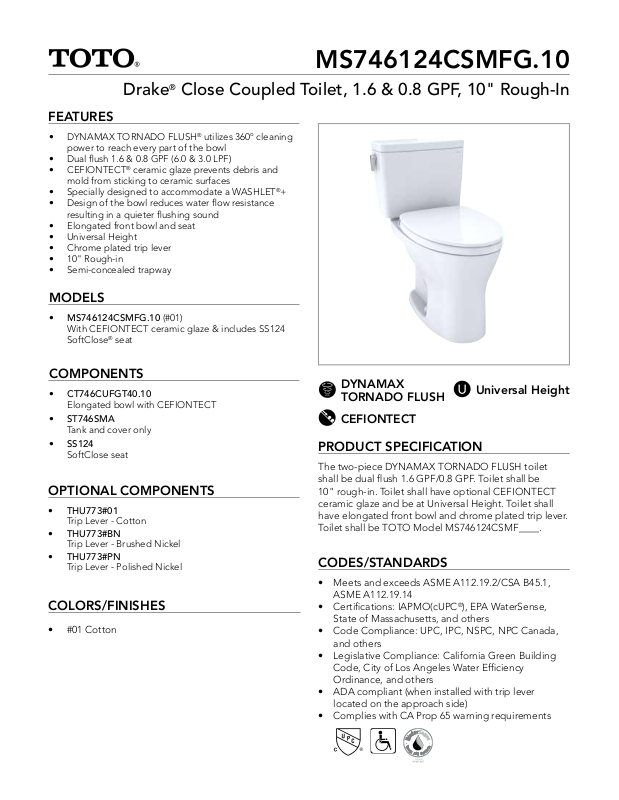

Drake® Close Coupled Toilet, 1.6 & 0.8 GPF, 10" Rough-In
FEATURES
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• Dual flush 1.6 & 0.8 GPF (6.0 & 3.0 LPF)
• CEFIONTECT
mold from sticking to ceramic surfaces
• Specially designed to accommodate a WASHLET
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Elongated front bowl and seat
• Universal Height
• Chrome plated trip lever
• 10" Rough-in
• Semi-concealed trapway
MODELS
• MS746124CSMFG.10 (#01)
With CEFIONTECT ceramic glaze & includes SS124
SoftClose
®
ceramic glaze prevents debris and
®
seat
®
+
MS746124CSMFG.10
COMPONENTS
• CT746CUFGT40.10
Elongated bowl with CEFIONTECT
• ST746SMA
Tank and cover only
• SS124
SoftClose seat
OPTIONAL COMPONENTS
• THU773#01
Trip Lever - Cotton
• THU773#BN
Trip Lever - Brushed Nickel
• THU773#PN
Trip Lever - Polished Nickel
COLORS/FINISHES
• #01 Cotton
DYNAMAX
TORNADO FLUSH
Universal Height
CEFIONTECT
PRODUCT SPECIFICATION
The two-piece DYNAMAX TORNADO FLUSH toilet
shall be dual flush 1.6 GPF/0.8 GPF. Toilet shall be
10" rough-in. Toilet shall have optional CEFIONTECT
ceramic glaze and be at Universal Height. Toilet shall
have elongated front bowl and chrome plated trip lever.
Toilet shall be TOTO Model MS746124CSMF____.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• ADA compliant (when installed with trip lever
located on the approach side)
• Complies with CA Prop 65 warning requirements
Page 2
MS746124CSMFG.10
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Close Coupled Toilet, 1.6 & 0.8 GPF, 10" Rough-In
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.6 & 0.8 GPF (6.0 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
10"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUFGT40.10
64 lbs.
ST746SMA
35 lbs.
CT746CUFGT40.10
18-3/4" L x 10-1/2" W x 18-1/8" H
ST746SMA
18-3/4" L x 8-3/8" W x 16" H

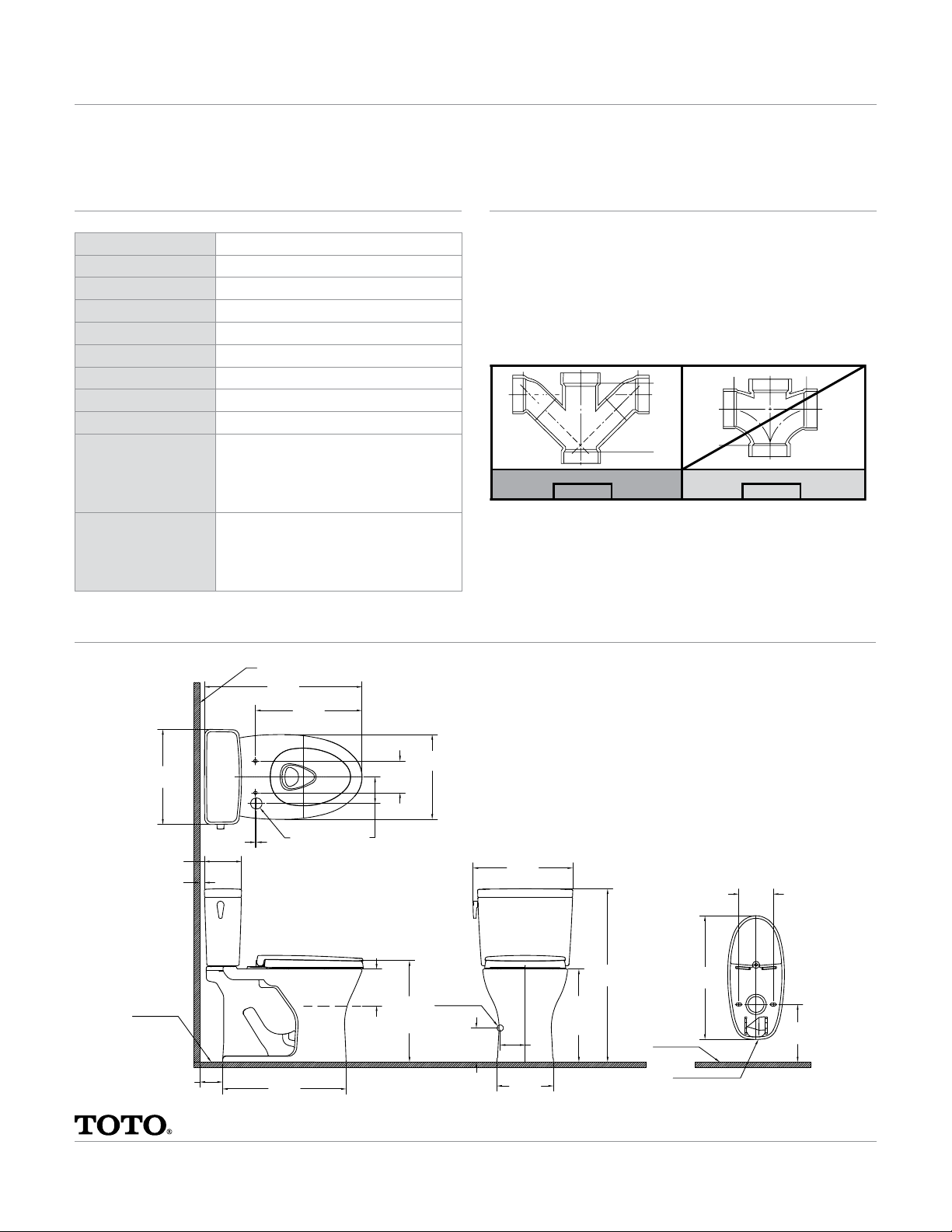

DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
10" rough-in distance.
16 1/2"
[420mm]
[164mm]
FINISHED
FLOOR
6 7/16"
3/4"
[20mm]
3 15/16"
[100mm]
3/16"
[4mm]
FINISHED WALL
27 3/8"
[695mm]
18 1/2"
[470mm]
Ø1 15/16"
[Ø50mm]
21 7/16"
[545mm]
WATER
LEVEL
4 5/8"
[117mm]
6 3/8"
[162mm]
5 1/2"
[140mm]
SEAT
HEIGHT
17 5/8"
[447mm]
14 3/4"
[374mm]
SUPPLY
AS REQ'D
*SUGGESTED
DIMENSION
*5 7/8"
[150mm]
17 5/16"
[440mm]
9 13/16"
[250mm]
*4 5/16"
[110mm]
RIM
HEIGHT
16 1/8"
[410mm]
30 1/16"
[764mm]
FINISHED
WALL
BACK OF BOWL
21 7/16"
[545mm]
6"
[152mm]
10"
[254mm]
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
# SS-01551 v.01
