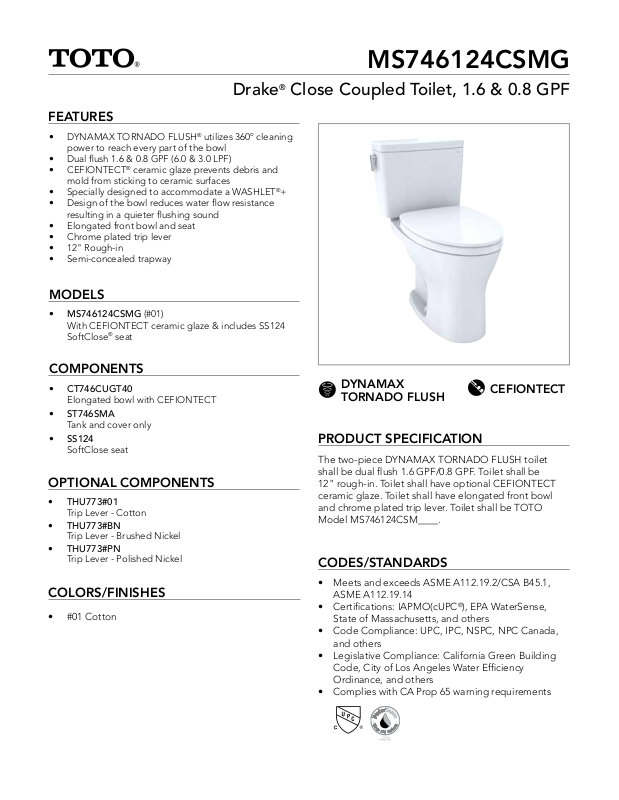

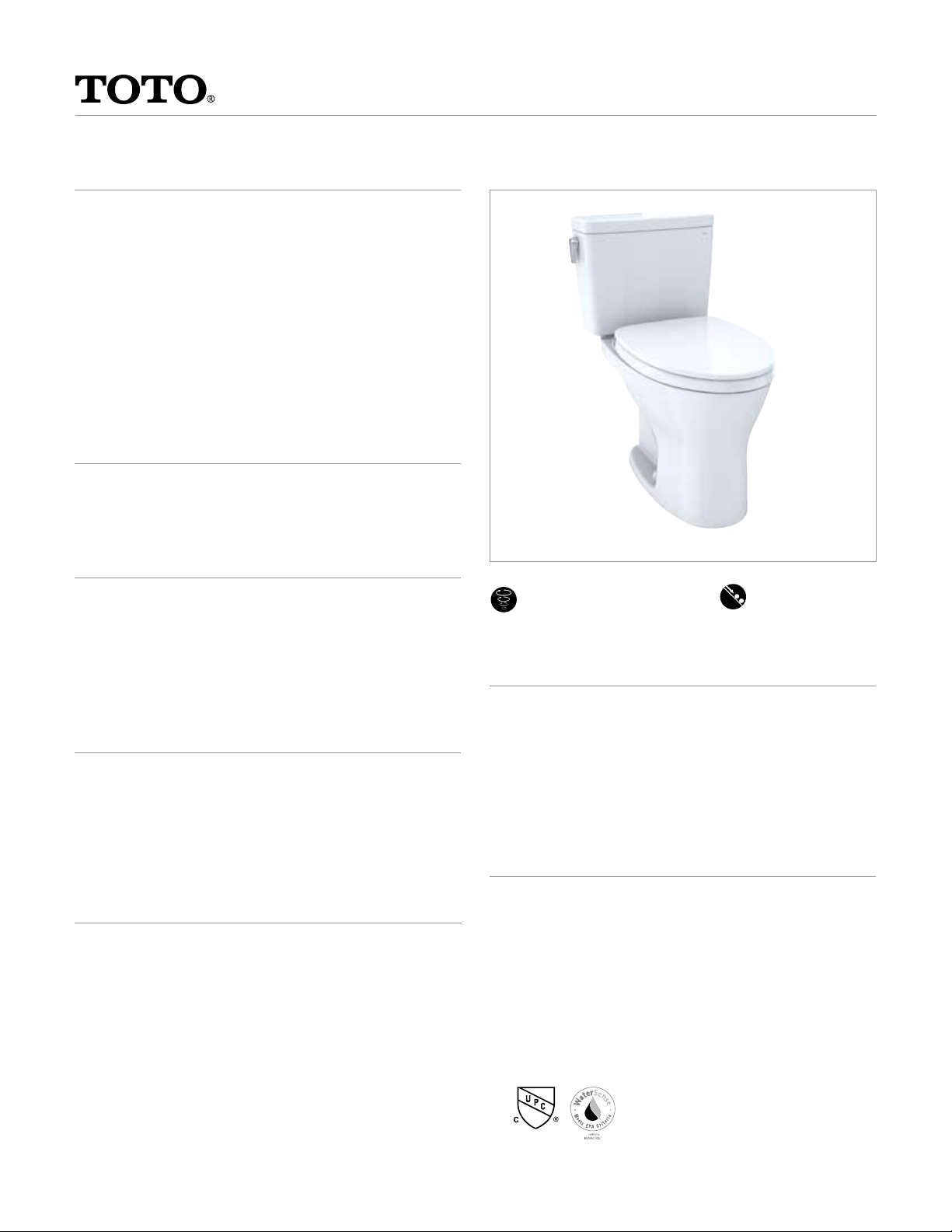

Drake® Close Coupled Toilet, 1.6 & 0.8 GPF
FEATURES
• DYNAMAX TORNADO FLUSH® utilizes 360º cleaning
power to reach every part of the bowl
• Dual flush 1.6 & 0.8 GPF (6.0 & 3.0 LPF)
• CEFIONTECT
mold from sticking to ceramic surfaces
• Specially designed to accommodate a WASHLET
• Design of the bowl reduces water flow resistance
resulting in a quieter flushing sound
• Elongated front bowl and seat
• Chrome plated trip lever
• 12" Rough-in
• Semi-concealed trapway
MODELS
• MS746124CSMG (#01)
With CEFIONTECT ceramic glaze & includes SS124
SoftClose
®
ceramic glaze prevents debris and
®
seat
®
+
MS746124CSMG
COMPONENTS
• CT746CUGT40
Elongated bowl with CEFIONTECT
• ST746SMA
Tank and cover only
• SS124
SoftClose seat
OPTIONAL COMPONENTS
• THU773#01
Trip Lever - Cotton
• THU773#BN
Trip Lever - Brushed Nickel
• THU773#PN
Trip Lever - Polished Nickel
COLORS/FINISHES
• #01 Cotton
DYNAMAX
CEFIONTECT
TORNADO FLUSH
PRODUCT SPECIFICATION
The two-piece DYNAMAX TORNADO FLUSH toilet
shall be dual flush 1.6 GPF/0.8 GPF. Toilet shall be
12" rough-in. Toilet shall have optional CEFIONTECT
ceramic glaze. Toilet shall have elongated front bowl
and chrome plated trip lever. Toilet shall be TOTO
Model MS746124CSM____.
CODES/STANDARDS
• Meets and exceeds ASME A112.19.2/CSA B45.1,
ASME A112.19.14
• Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
• Code Compliance: UPC, IPC, NSPC, NPC Canada,
and others
• Legislative Compliance: California Green Building
Code, City of Los Angeles Water Efficiency
Ordinance, and others
• Complies with CA Prop 65 warning requirements
Page 2
MS746124CSMG
Double Sanitary Tee / Sanitary CrossDouble Combination Wye / 1/8 Bend
YES NO
Drake® Close Coupled Toilet, 1.6 & 0.8 GPF
SPECIFICATIONS
Water Use
Flush System
Min. Water Pressure
Water Surface
Trap Diameter
Rough-in
Trap Seal
Warranty
Material
Shipping Weight
Shipping
Dimensions
1.6 & 0.8 GPF (6.0 & 3.0 LPF)
DYNAMAX TORNADO FLUSH
8 psi (Flowing)
5-5/8" x 4-1/8"
2-1/2"
12"
2-1/8"
One Year Limited Warranty
Vitreous China
CT746CUGT40
64 lbs.
ST746SMA
35 lbs.
CT746CUGT40
18-3/4" L x 10-1/2" W x 18-1/8" H
ST746SMA
18-3/4" L x 8-3/8" W x 16" H

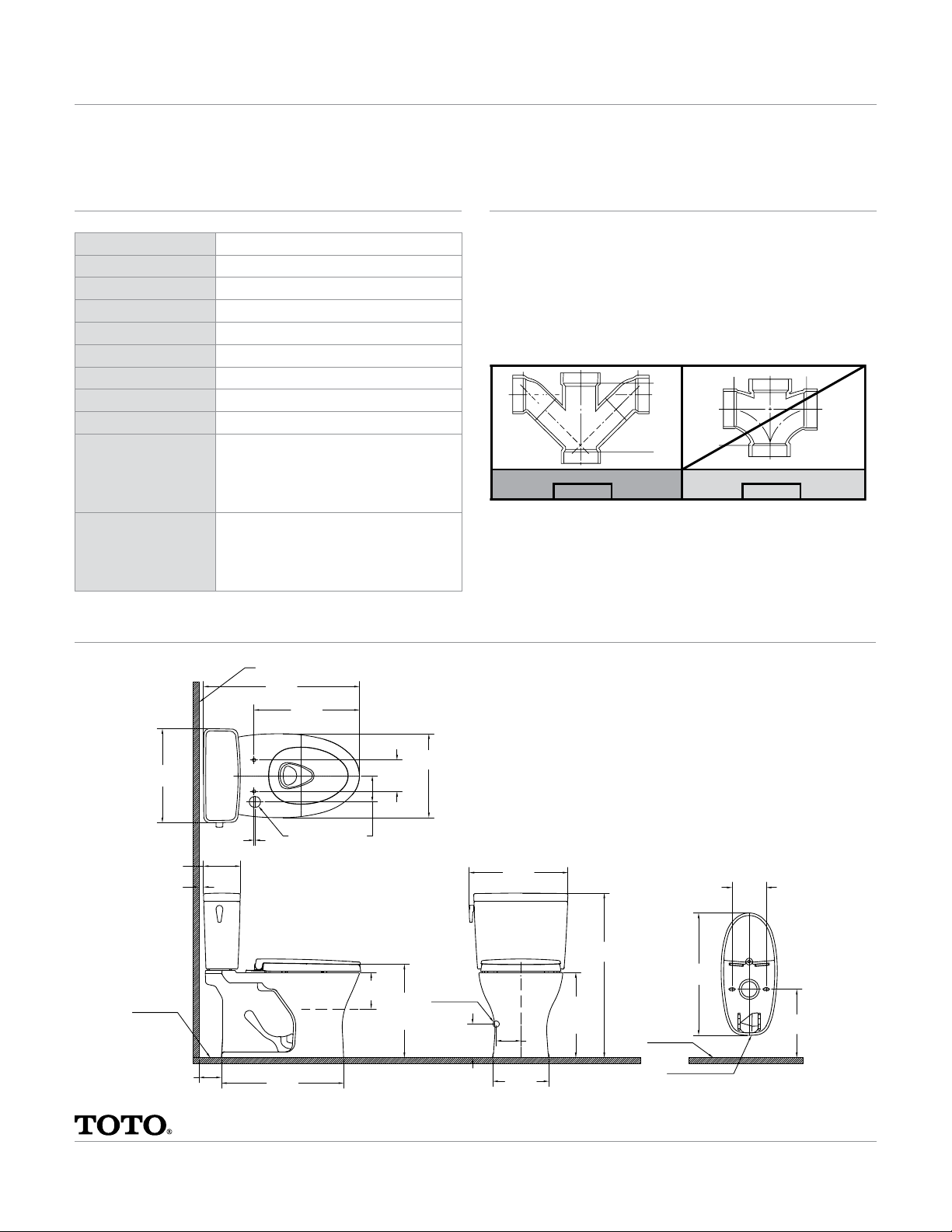

DIMENSIONS
INSTALLATION NOTES
Back-to-Back Toilet Installations:
®
TOTO recommends the use of a nationally listed,
double sanitary tee-wye only, in vertical waste stacks,
in accordance with the stipulations noted in the
majority of nationally recognized plumbing codes.
To maintain adequate wall gap between the back of
the tank and wall, mount the floor flange at a nominal
12” rough-in distance.
16 1/2"
[420mm]
[164mm]
FINISHED
FLOOR
6 7/16"
3/4"
[20mm]
3 15/16"
[100mm]
3/16"
[4mm]
FINISHED WALL
27 3/8"
[695mm]
18 1/2"
[470mm]
Ø1 15/16"
[Ø50mm]
21 7/16"
[544mm]
WATER
LEVEL
4 5/8"
[117mm]
6 3/8"
[162mm]
5 1/2"
[140mm]
SEAT
HEIGHT
16 7/16"
[417mm]
14 3/4"
[374mm]
SUPPLY
AS REQ'D
*SUGGESTED
DIMENSION
*5 7/8"
[150mm]
17 5/16"
[440mm]
9 13/16"
[250mm]
*4 5/16"
[110mm]
RIM
HEIGHT
14 15/16"
[380mm]
28 7/8"
[734mm]
FINISHED
WALL
BACK OF BOWL
21 7/16"
[545mm]
6"
[152mm]
12"
[305mm]
These dimensions and specications are subject to change without notice
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
